ITECH | AC Power Supply

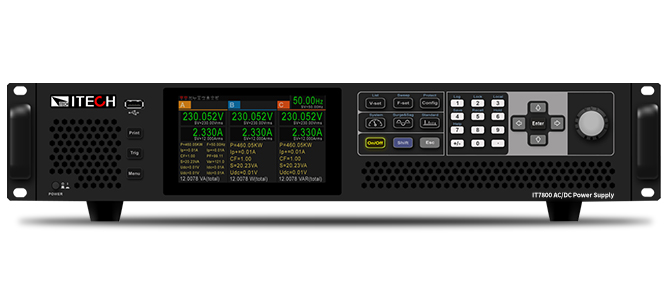

IT7800 High Power Programmable AC/DC Power Supply

The IT7800 High Power Programmable AC/DC Power Supply integrates advanced SiC technology to offer high power density with up to 15kVA in a 3U unit. It provides multi-output modes, including AC, DC, AC+DC, and DC+AC, supporting testing for devices such as new energy systems, power electronics, and research applications. The system supports master-slave parallel operation, extending power to 960kVA. It features an intuitive touch screen interface, built-in power meter, and arbitrary waveform generator for simulating harmonics and grid disturbances..

  • Detail
  • Special Features
  • Specification

The IT7800 series is a highly flexible AC/DC power supply designed to meet the testing demands of new energy, power electronics, and scientific research sectors. The system's advanced capabilities in harmonic simulation, arbitrary waveform generation, and multi-channel testing ensure that it can handle the most complex power simulation tasks.

The unit’s SiC technology not only improves energy efficiency but also reduces system size, achieving 15kVA in a 3U unit, while ensuring high performance and low heat generation. The multi-channel testing feature enables users to test up to 3 DUTs (devices under test) simultaneously, eliminating the need for additional AC supplies and improving cost-effectiveness.

Whether for AC power testing, DC supply, or combined AC+DC applications, the IT7800 covers a wide range of testing applications, including low voltage ride-through (LVRT), surge, and sag simulations. It can be easily integrated into automated test systems (ATE), thanks to its intuitive touch screen interface and standard communication interfaces (USB, CAN, LAN, optional GPIB/RS232).

  1. High Power Density
    Achieves 15kVA in just 3U, offering space-saving and powerful performance for high-demand applications.

  2. Master-Slave Parallel Operation
    Easily scales to 960kVA through master-slave parallel configuration, enabling high-power, large-scale testing.

  3. Versatile Output Modes
    Supports AC, DC, AC+DC, and DC+AC modes, allowing diverse testing needs, such as DC biasing or ripple simulation.

  4. Multi-Channel Functionality
    Test up to 3 devices simultaneously without additional hardware, maximizing testing efficiency and equipment utilization.

  5. Arbitrary Waveform Generation
    The system can generate complex waveforms, including harmonic and inter-harmonic simulations, for grid disturbance and transient testing.

  6. High Current Crest Factor
    Suitable for inrush current testing with adjustable crest factors up to 6 in peak current ranges.

  7. Advanced Protection Functions
    Includes automatic clearing, POVP, watchdog protections to ensure system safety during testing.

  8. Built-in Power Meter
    Real-time monitoring of voltage and current with precise measurements.

  9. Harmonic Analysis & Simulation
    Measure and simulate up to 50th-order harmonics in both source and load modes.

  10. Flexible Testing for Phase Imbalance
    Supports single-phase, three-phase, and reverse-phase testing with programmable phase shift, ideal for comprehensive grid-simulation.

    ac power supply

    ac power source

Specification IT7800 High Power Programmable AC/DC Power Supply
Voltage Range 350V L-N
Current Output Up to 90A (for selected models)
Power Output Up to 15kVA
Resolution 0.01V/0.01A
Accuracy Voltage: ±0.1%+0.2%FS, Current: ±0.3%+0.3%FS
Harmonic Analysis Up to 50th harmonic
Waveform Types Sine, Square, Triangle, Sawtooth, Clipped Sine
Output Frequency Range 16Hz–2400Hz
Interfaces USB, CAN, LAN, Digital I/O, Optional GPIB/RS232
Size (W × H × D) 2U, 3U (Varies by model)
