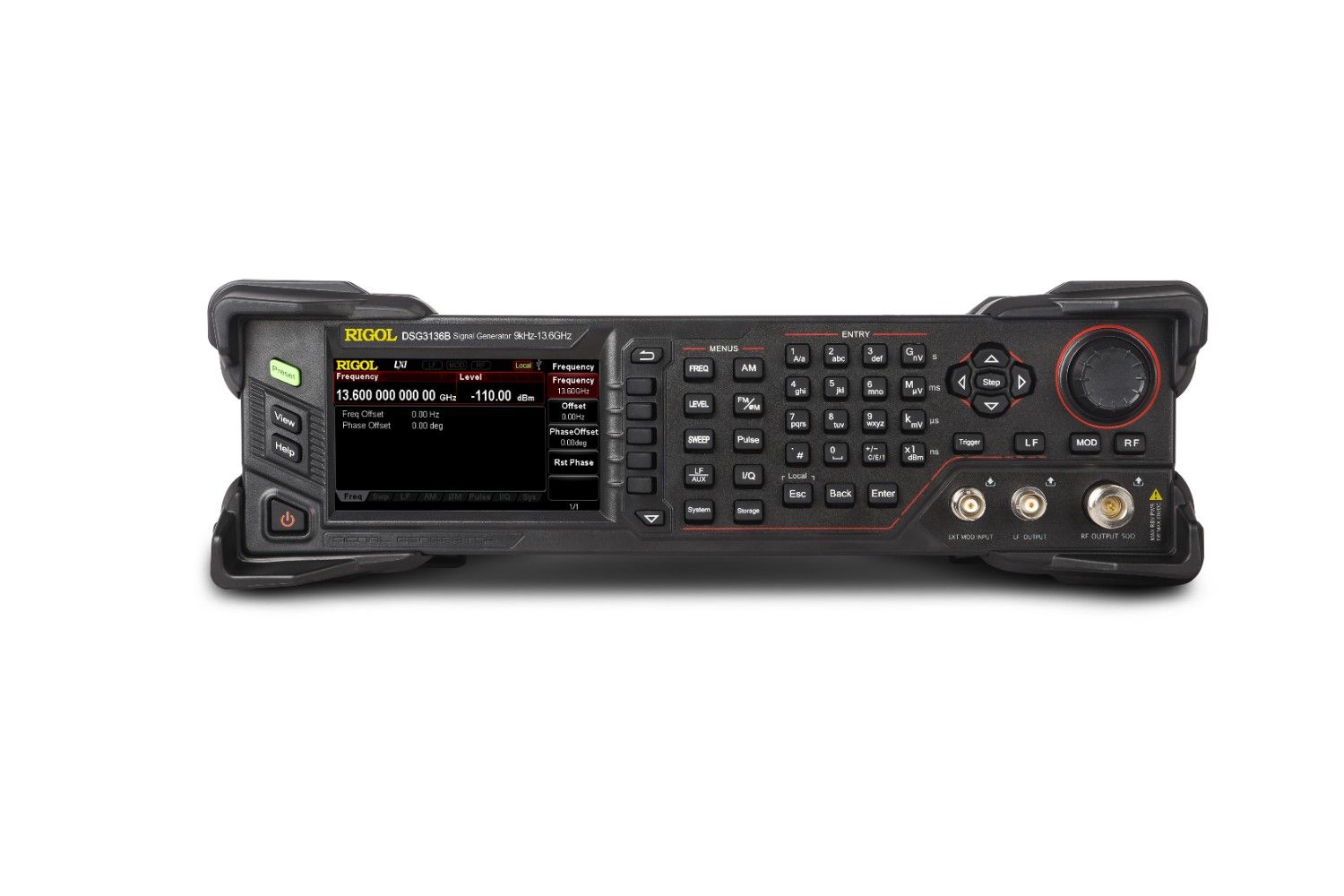

Rigol DSG3136B – 13.5 GHz RF Signal Generator

Rs. 1725573.00

The Rigol DSG836 RF signal generator offers standard AM/FM/ØM analog modulation with a maximum frequency of 3.6 GHz. It features high signal purity with phase noise of <-116 dBc/Hz at 20 kHz (typical) and an output amplitude range from -130 dBm to +25 dBm. The generator supports both internal and external modulation sources and includes a USB-Host, USB-device, and LAN interface for enhanced connectivity. It is ideal for applications in communication, R&D, production, and testing environments..

  • Detail
  • Special Features
  • Specification

🎚️ Modulation That Matters
AM / FM / ØM (PM) built in → classic tests run fast.
Optional pulse → crisp on/off bursts → radar-like and packet checks made easy.

🎯 High Signal Purity (Cause → Effect)
Low phase noise + low harmonics → cleaner carrier → truer measurements and tighter margins.

🛠️ Why It Helps (Action → Result)
Set frequency and level → output stays steady → repeatable results you can trust.
Add modulation → DUT sees real-world signals → faults appear sooner.

🖥️ Easy To Drive
Clear front panel + simple menus → find, set, run → fewer clicks, fewer mistakes.

🧪 Where It Fits (Use → Payoff)
Communications gear → standard waveforms → confident compliance checks.
R&D benches → quick iteration → faster design loops.
Production lines & service bays → stable source → consistent pass/fail calls.

📡 Comprehensive Modulation Options
AM / FM / ØM built in → classic tests run fast.
Add pulse + pulse trains → timed bursts on demand → radar-like and packet checks made easy.

🎯 High Signal Purity
Phase noise < −116 dBc/Hz @ 20 kHz (typ.) → cleaner carriers → tighter, truer measurements.

📶 Wide Output Range
−130 dBm to +25 dBm → whisper-low to strong signals → one box fits lab and field work.

📏 Amplitude Accuracy
< 0.5 dB (typ.) → set a level, get that level → repeatable results you can trust.

🧼 Low Harmonics
< −30 dBc (typ.) → fewer spurs → minimal distortion across tests.

🔁 Internal / External Mod Sources
Use the built-in generator or feed an external source → flexible setups → faster iterations.

🧳 Compact & Portable
Lightweight body → easy to carry, easy to rack → same performance on bench or site.

🔌 Advanced Connectivity
USB, LAN, GPIB → SCPI control, logging, automation → drops into ATE with no fuss.

Model Max Frequency Frequency Resolution I/Q Modulation Phase Noise Output Range
DSG836 3.6 GHz 0.01 Hz No <-116 dBc/Hz @ 20 kHz -130 dBm to +25 dBm
