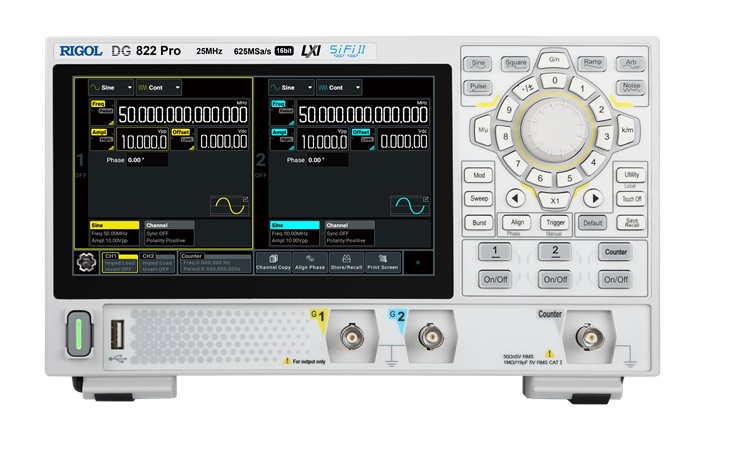

Rigol DG822 Pro – Function / Arbitrary Waveform Generator

Rs. 49220.00

The Rigol DG822 Pro is a versatile 2-channel function and arbitrary waveform generator designed for engineers who need clean signals, high precision, and reliable performance in everyday lab work. With up to 25 MHz bandwidth, a sharp 7-inch touch display, and a 625 MSa/s sample rate, it delivers excellent signal quality while remaining compact and easy to operate. Its intuitive interface supports smooth operation through touch, while standard USB and LAN connectivity make remote control straightforward. You also get multiple built-in generator functions — including noise, pulse, harmonics, modulation and more — giving the DG822 Pro the flexibility to handle both basic and advanced testing tasks. Engineers working in limited lab space will appreciate its compact design and Type-C power support, making it easy to mount or position as needed..

  • Detail
  • Special Features
  • Specification

The DG822 Pro belongs to Rigol’s DG800 Pro series, known for combining affordability with pro-level capability. Each channel offers a full 16-bit vertical resolution, ensuring clean signal edges and low distortion during testing.

With its 7″ touchscreen interface, navigating waveforms, adjusting parameters, and selecting functions feels fast and effortless. The instrument also integrates seamlessly into lab workflows through LAN and USB connectivity, allowing remote operation when needed.

Whether you’re testing analog circuits, simulating sensor outputs, experimenting with modulation, or generating custom waveforms, the DG822 Pro provides the performance and flexibility required for both educational and professional electronic environments.

  • 2-channel architecture with 1 µHz to 25 MHz frequency range

  • High-resolution 16-bit output for cleaner, more accurate signals

  • 625 MSa/s sampling rate for detailed waveform reproduction

  • 2 Mpts waveform memory (expandable to 8 Mpts)

  • Multiple built-in generators: function, arbitrary, noise, pulse, harmonic

  • Supports analog and digital modulation modes

  • Integrated frequency counter up to 500 MHz

  • Type-C power input for convenience

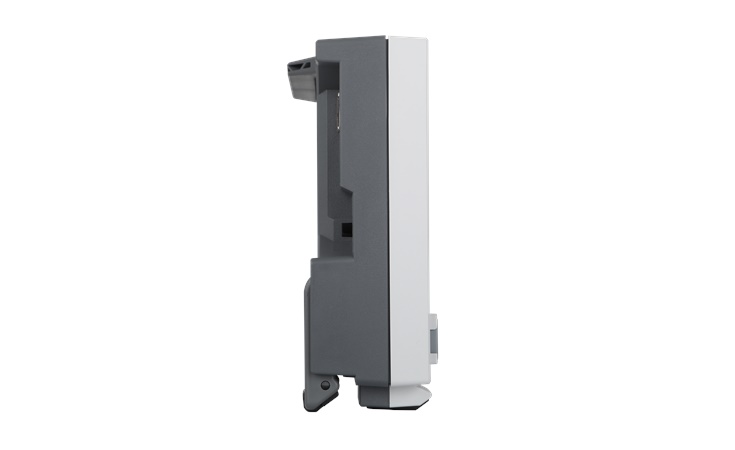

  • Compact form factor with bracket-mounting support

  • 7-inch touch display for smooth, modern operation

  • USB and LAN interfaces with Web Control functionality

  • Channels: 2

  • Max Frequency: 25 MHz

  • Frequency Resolution: 1 µHz

  • Sampling Rate: 625 MSa/s

  • Vertical Resolution: 16-bit

  • Waveform Memory: 2 Mpts (standard), 8 Mpts (optional)

  • Maximum Amplitude: Up to 5 Vpp below 10 MHz; up to 10 Vpp (high-impedance output)

  • Frequency Counter: Up to 500 MHz

  • Display: 17.8 cm (7") touchscreen

  • Power Input: Type-C

  • Functions: Function Generator, Arbitrary Waveform Generator, Noise, Pulse, Harmonics, Modulation (AM/FM/PM/ASK/FSK), Counter

  • Form Factor: Compact design with bracket-mount support
