Fluke Insulation Testers: Certified Safety and Diagnostic Power for Electrical Systems

Welcome to Revinetech's dedicated category for Fluke Insulation Testers. In industrial and commercial electrical maintenance, the health of insulation is critical for system reliability, energy efficiency, and, most importantly, safety. A Fluke insulation tester (often called a megohmmeter) applies a high DC voltage to measure insulation resistance, accurately diagnosing potential failures in motors, cables, generators, and switchgear before they cause catastrophic downtime.

You are here seeking a rugged, accurate, and safe instrument that delivers verifiable diagnostic data. Our selection features the complete range of Fluke insulation testers, including versatile multi-function units, high-voltage models for industrial applications, and simple handheld meters for field use. Trust Revinetech to supply the genuine Fluke megohmmeter that provides certified protection, industry-leading noise rejection, and the precise measurement capability your critical maintenance demands.

Why Fluke Insulation Testers Are Essential for Reliability

Fluke is the global benchmark for electrical testing equipment. Their insulation testers are specifically designed to address the challenges of maintenance testing in noisy, high-voltage industrial environments while meeting the highest safety standards.

Protecting Assets with Predictive Diagnostics

Insulation degrades over time dueiling to heat, moisture, chemicals, and stress. A Fluke insulation tester allows for effective predictive maintenance:

• Early Fault Detection: Measuring the drop in insulation resistance over time reveals aging or damaged insulation before a short circuit or ground fault occurs, preventing expensive equipment damage.

• Troubleshooting Effectiveness: Identifying wet, contaminated, or damaged sections of cable and motor windings, which is key to focused, efficient repairs.

• Energy Efficiency: Poor insulation leads to excessive leakage current, resulting in wasted energy. Diagnosing and correcting this ensures optimal system performance.

Safety and Noise Rejection

Fluke prioritizes user safety and measurement integrity in their megohmmeters:

• High Safety Ratings: Instruments meet stringent CAT III and CAT IV safety standards, protecting the technician from dangerous voltage transients common in large electrical systems.

• Superior Noise Rejection: Built-in filtering and advanced signal processing minimize the impact of external electrical noise, ensuring stable and accurate resistance readings even in active industrial plants.

• Voltage Selection: Offers selectable test voltages (e.g., 50V, 100V, 250V, 500V, 1000V) to suit various insulation testing requirements, from low-voltage electronics to high-voltage industrial machinery.

Exploring the Fluke Insulation Tester Series

Fluke organizes its insulation testers into clear series, ensuring you can find the perfect model for your specific voltage and application needs.

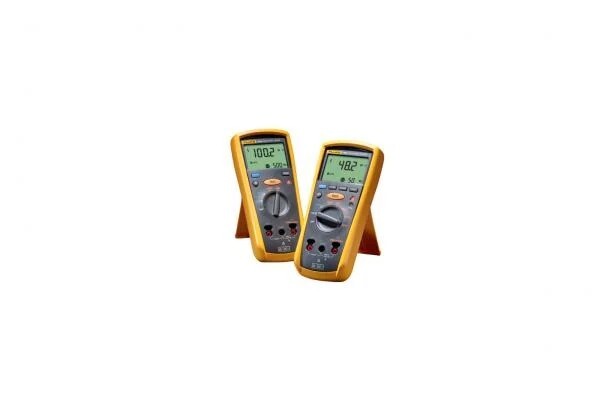

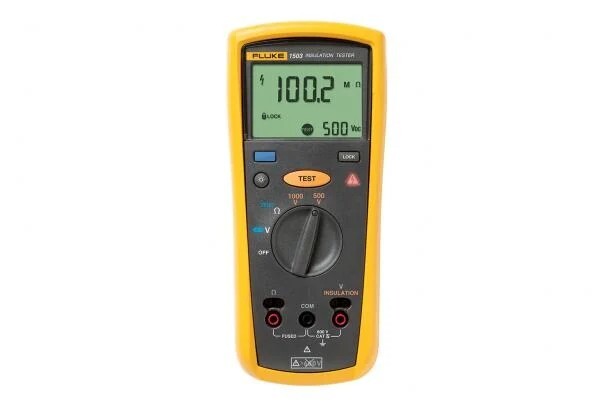

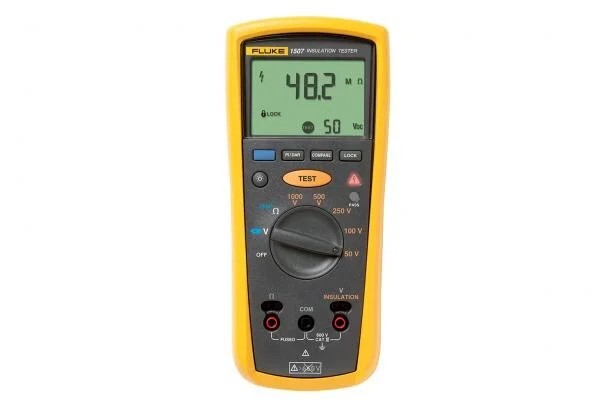

Basic Handheld and Digital Testers (Fluke 1500 Series)

These portable, battery-powered testers are ideal for electrical contractors, field technicians, and general maintenance. They offer simplicity, ruggedness, and essential voltage levels:

• Ease of Use: Simple interface with pass/fail indicators and clear digital readouts.

• Varying Test Voltages: Provides common test voltages (up to 1 kV) suitable for commercial and light industrial applications.

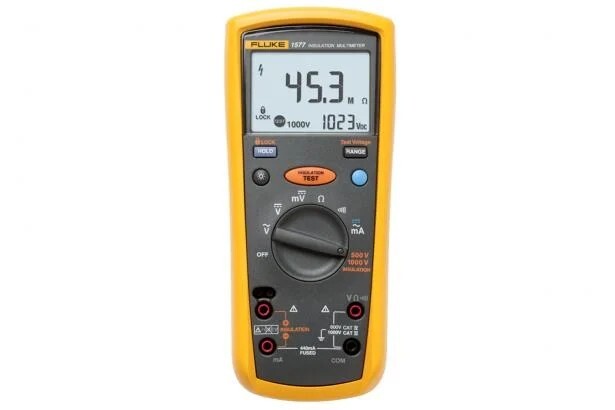

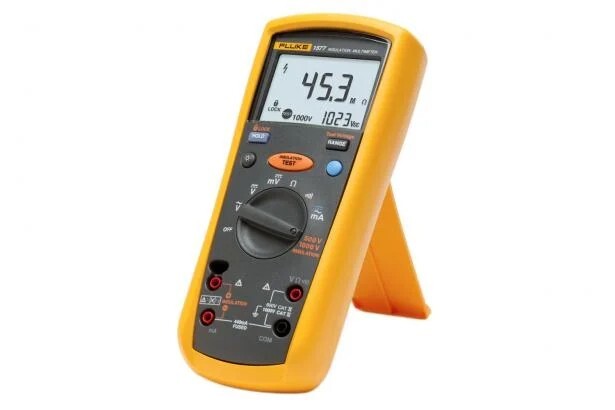

• Multimeter Functionality: Many models integrate basic digital multimeter (DMM) functions, allowing technicians to check voltage and continuity immediately before testing insulation.

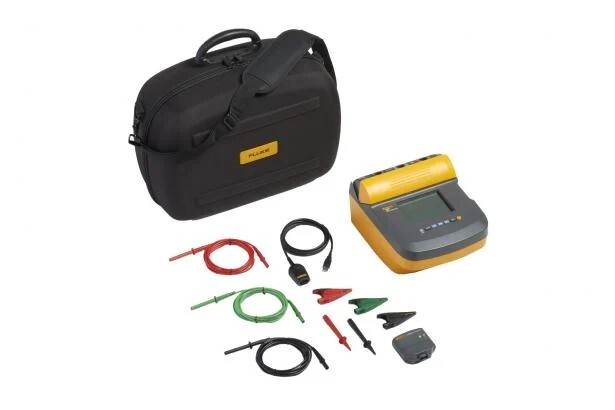

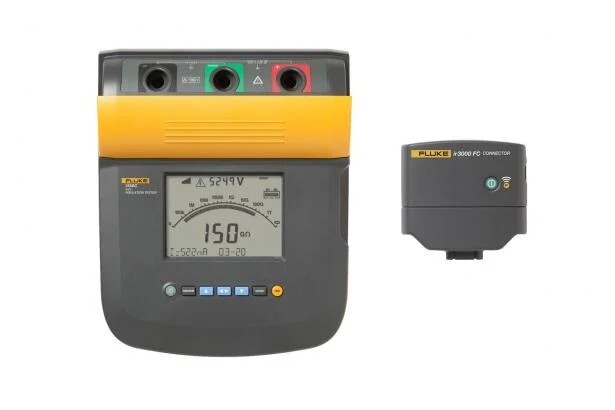

Advanced High-Voltage Industrial Testers (Fluke 1550 Series)

The 1550 Series and similar high-end models are designed for heavy industrial use, utility testing, and predictive maintenance programs on high-capacity equipment:

• High Test Voltage: Capable of generating test voltages up to 5 kV or 10 kV, required for testing high-voltage motors, transformers, and large switchgear.

• Advanced Diagnostic Tests: Features advanced measurement techniques like Polarization Index (PI) and Dielectric Absorption Ratio (DAR), which provide deeper insight into insulation quality and moisture absorption.

• Data Logging: Built-in memory allows for logging resistance over time, which is essential for capturing trending data to support predictive maintenance analysis.

Key Features for Advanced Diagnostics

Fluke integrates specialized diagnostic features into its insulation testers to simplify analysis and documentation.

Polarization Index (PI) and Dielectric Absorption Ratio (DAR)

These two calculated tests are crucial for professional maintenance:

• DAR: Measures the insulation resistance at two time points (e.g., 30 and 60 seconds) to assess excessive moisture or contamination in the insulation.

• PI: Measures the ratio of resistance at ten minutes to the resistance at one minute. A healthy PI value indicates dry, good-quality insulation, while a low PI suggests degradation due to moisture or contaminants. These tests save time and provide definitive data.

Data Management and Automation

Modern Fluke megohmmeters feature connectivity that streamlines workflow and reporting:

• Fluke Connect Compatibility: Wireless data sharing and linking of insulation readings with other Fluke diagnostic tools for centralized digital reporting.

• Automatic Calculation: Instruments automatically calculate PI and DAR, eliminating manual timing and calculation errors.

• Memory Storage: On-board memory allows for storing hundreds or thousands of measurement results, essential for asset management and compliance reporting.

Partner with Revinetech for Fluke Insulation Assurance

Selecting the precise Fluke insulation tester requires evaluating your maximum required test voltage (e.g., 1kV vs. 5kV) and the necessity of advanced features like PI/DAR and data logging. Revinetech is your authorized source for the complete lineup of Fluke safety and diagnostic tools. Our technical specialists are ready to assist you in matching the certified safety rating and diagnostic capability of the right Fluke megohmmeter to your specific maintenance program requirements.

Protect your personnel and equipment with verified insulation testing. Browse our catalogue of Fluke Insulation Testers today, compare the best models for industrial and utility use, and contact us for expert advice and a personalized quote.

Frequently Asked Questions (FAQs)

What is the difference between a Fluke insulation tester and a standard multimeter?

A standard multimeter measures low resistance (Ohms) to check continuity or component values. A Fluke insulation tester (megohmmeter) applies a high DC voltage (up to 10 kV) to measure high resistance (Megohms), specifically checking the quality and integrity of insulating material.

What does the Polarization Index (PI) test reveal?

The Polarization Index (PI) test reveals the overall health and dryness of insulation. It calculates the ratio of resistance measured after ten minutes to the resistance measured after one minute. A low PI value is a strong indicator of damaged, moisture-contaminated, or dirty insulation.

Is a higher test voltage always better for insulation testing?

Not always. The test voltage must be appropriate for the equipment's rated voltage and standards. While higher test voltage (e.g., 5kV) is necessary for high-voltage industrial equipment, lower test voltages (e.g., 500V or 1kV) are used for safe testing of lower-rated motors and cables.

Can a Fluke insulation tester measure voltage or current?

Yes. Many modern Fluke insulation testers are versatile multi-function units that also include standard digital multimeter (DMM) functions, allowing technicians to safely measure AC/DC voltage and continuity before performing the high-voltage insulation test.

Why is noise rejection important in an industrial insulation tester?

Industrial environments are electrically noisy due to VFDs, motors, and lighting. Superior noise rejection in a Fluke megohmmeter ensures that external electrical interference does not artificially lower or destabilize the high-resistance reading, guaranteeing a reliable measurement of the true insulation resistance.
