ITECH Source Measure Units (SMUs): Precision I-V Characterization and Analysis
Welcome to Revinetech's specialized category for ITECH Source Measure Units (SMUs). The SMU is a highly versatile and precise instrument that combines the capabilities of a programmable DC power supply, a DC electronic load, a high-accuracy multimeter, and an arbitrary waveform generator into a single, compact unit. ITECH SMUs are essential tools for characterizing the current-voltage (I-V) behavior of semiconductors, electronic components, sensors, and emerging power devices with exceptional speed and accuracy.
You are seeking a high-performance, synchronous instrument for precise sourcing and measuring across all four quadrants. Our selection features the complete range of ITECH SMU solutions, including single-channel benchtop units and modular systems for high-throughput automated testing. Trust Revinetech to provide the genuine ITECH Source Measure Unit that delivers the fundamental diagnostic capabilities, high sensitivity, and precise timing control necessary for validating your most sensitive electronic designs.
Why ITECH SMUs Are Indispensable for Component Characterization
ITECH SMUs are engineered to provide superior measurement fidelity and synchronization, eliminating the complexities and errors associated with combining multiple, separate instruments for I-V curve tracing.
Unified Four-Quadrant Operation
The core strength of an ITECH SMU is its ability to operate across all four electrical quadrants, allowing it to precisely source voltage or current while simultaneously measuring voltage and current:
-
Source and Sink Capability: The SMU can function as both a power source (sourcing power in Quadrants I and III) and an electronic load (sinking or absorbing power in Quadrants II and IV). This is vital for testing batteries, solar cells, and bidirectional components.
-
I-V Curve Tracing: The integrated capability allows for rapid sweeping of voltage or current across the entire operating range of a device, quickly generating the complete I-V characteristic curve.
-
High Sensitivity: ITECH SMUs provide microampere and nanoampere resolution, crucial for characterizing low-leakage devices, sensing circuits, and standby current draw.
Mastering Precision and Measurement Speed
Accuracy and speed are paramount when characterizing sensitive devices. ITECH instruments ensure superior performance:
-
High Sampling Rate: The SMU features fast measurement rates, enabling precise capture of transient events and faster completion of detailed characterization sweeps than conventional methods.
-
Low Noise and Ripple: ITECH engineering minimizes output noise, ensuring that the sourced power is clean and stable, which is necessary for accurate measurement of sensitive low-current devices.
-
Digital Control: Full programmability allows engineers to execute complex, sequential test routines automatically, ensuring repeatability and streamlining the characterization process.
Exploring the ITECH Source Measure Unit Categories
Our catalogue features the specialized lines of ITECH SMUs, categorized by channel count, power range, and modularity for various test environments.

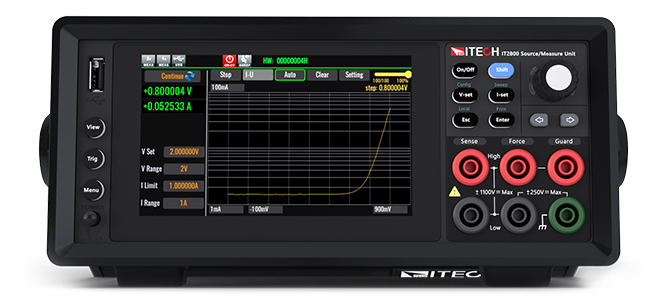

Benchtop Single-Channel SMUs
These versatile units are the workhorses of R&D and failure analysis labs, offering high precision and a compact footprint:
-
High Resolution Display: Intuitive front-panel interfaces allow for real-time visualization of I-V curves and measurement data, simplifying manual testing.
-
Wide Application Range: Suitable for testing diodes, transistors, LEDs, passive components, and basic I-V curve tracing for material science research.
-
Integrated Data Logging: Allows for automated recording of measurement data over time, essential for reliability testing and thermal monitoring.
Modular High-Channel-Count SMU Systems
These scalable systems are designed for high-throughput manufacturing testing and complex, parallel device characterization:
-
Parallel Testing: Modular mainframes support multiple synchronized SMU cards, allowing hundreds of components (e.g., flash memory, power FETs) to be tested simultaneously, drastically increasing production throughput.
-
Multi-Pin Device Testing: Essential for characterizing multi-pin integrated circuits (ICs) and complex components where multiple source/measure channels are required to test cross-talk or leakage paths.
-
ATE Integration: Full compatibility with standard communication protocols (GPIB, LAN) ensures easy integration into large, Automated Test Equipment (ATE) systems.
Integrated Features for Testing Efficiency and Accuracy
ITECH SMUs incorporate advanced features that simplify setup, enhance safety, and ensure the highest possible measurement accuracy.
-
Remote Sensing (4-Wire Measurement): Provides highly accurate voltage measurement directly at the Device Under Test (DUT) by compensating for voltage drops in the test leads, which is essential for high-current or low-voltage applications.
-
Transient Pulse Measurement: Features the capability to source fast, short-duration pulses, minimizing heat buildup in the DUT while capturing high-speed I-V characteristics.
-
I-V Sweep Functions: Built-in sweep engines automate the collection of data points, allowing for rapid execution of linear, logarithmic, or pulsed sweeps with fine control over step size.
-
Safety Features: Comprehensive Overvoltage (OVP) and Overcurrent (OCP) protection are crucial for protecting the sensitive SMU circuitry and the costly components being tested.
Partner with Revinetech for ITECH SMU Solutions
Selecting the ideal ITECH Source Measure Unit requires careful consideration of required sensitivity (current resolution), maximum voltage/current output, and the necessity of modular channel scaling. Revinetech is your authorized source for the complete ITECH portfolio. Our technical specialists are ready to assist you in matching the certified precision, four-quadrant capability, and synchronization features of the right ITECH SMU to your specific R&D, characterization, and manufacturing demands.
Achieve the most accurate I-V measurements. Browse our catalogue of ITECH Source Measure Units today, compare the best single-channel and modular solutions, and contact us for expert advice and a personalized quote.
Frequently Asked Questions (FAQs)
What is a Source Measure Unit (SMU) used for?
A Source Measure Unit (SMU) is a highly versatile instrument used to accurately characterize electronic components. It combines the ability to precisely source voltage or current while simultaneously measuring current or voltage, making it ideal for generating I-V curves and testing device behavior.
What does "four-quadrant operation" mean for an ITECH SMU?
Four-quadrant operation means the ITECH SMU can both source (act as a power supply) and sink (act as an electronic load) in both positive and negative polarities. This is essential for testing devices like batteries, which source and sink power, and for analyzing the full operating envelope of semiconductors.
Why is 4-wire (remote) sensing important for an SMU?
4-wire sensing is vital for accuracy. It uses separate sense leads to measure the voltage directly at the Device Under Test (DUT), compensating for voltage drops caused by the resistance of the test leads. This ensures the SMU knows the exact voltage delivered to the device, guaranteeing accurate I-V characterization.
What kind of devices are typically tested with an ITECH SMU?
ITECH SMUs are used to test a wide range of devices, including discrete semiconductors (diodes, transistors, FETs), LEDs, solar cells, sensors, passive components, memory devices, and integrated circuits, primarily to verify their electrical characteristics against specifications.
How does an ITECH SMU help with semiconductor reliability testing?
By utilizing its sourcing and measurement precision, an ITECH SMU can perform highly sensitive leakage current measurements and apply controlled stress voltages. This data is critical for understanding device breakdown characteristics and verifying long-term reliability against potential failure mechanisms.
