Sealevel PCI Express (PCIe) Serial Cards: High-Speed Internal Connectivity

Welcome to Revinetech's dedicated category for Sealevel PCI Express (PCIe) Serial Cards. In modern industrial, embedded, and server applications, the PCIe interface is the standard for high-throughput, low-latency internal communication. Sealevel PCIe serial cards are meticulously engineered to maximize the speed and stability of the PCI Express bus, providing reliable, multi-port interfaces for RS-232, RS-422, and RS-485 protocols. These cards are essential for seamless integration with high-performance industrial control, data acquisition (DAQ), and critical legacy systems.

You are seeking trustworthy, internal expansion cards that offer high channel density, robust electrical protection, and high-speed throughput for modern computing architectures. Our selection features the complete range of Sealevel PCIe serial solutions, offering up to 16 ports, software-selectable protocols, and comprehensive driver support. Trust Revinetech to provide the genuine Sealevel PCIe card that delivers certified industrial durability, sustained high data rates, and the reliable, low-latency communication link necessary for your professional computing environment.

Why Sealevel PCIe Serial Cards are the Modern Standard

Sealevel leverages the high-speed, low-latency nature of the PCI Express bus to deliver serial expansion that meets the demands of modern data-intensive applications, ensuring stability where standard USB-to-serial converters fall short.

Maximizing Throughput and System Stability

PCIe cards offer critical advantages in performance and resource efficiency over other serial expansion methods:

• High Bandwidth and Low Latency: Utilizing the high-speed PCIe lanes allows these cards to handle sustained high data rates simultaneously across all ports without overburdening the host CPU, which is crucial for time-sensitive, multi-channel DAQ.

• Dedicated I/O Resources: PCIe cards map directly to dedicated system resources, providing a stable, dedicated communication path that is free from the overhead and scheduling uncertainty of USB, guaranteeing reliable performance.

• FIFO Buffers: Integrated large on-board First-In, First-Out (FIFO) buffers reduce the frequency with which the host CPU must manage data, minimizing host utilization and preventing data loss during periods of high data traffic.

Advanced Protocol Flexibility and Protection

Sealevel PCIe cards are highly versatile and built with the necessary electrical resilience for industrial use:

• Software-Selectable Protocols: Many cards are software-selectable, allowing each port to be individually configured for RS-232, RS-422, or RS-485 via host software commands. This dramatically simplifies inventory and provides maximum field adaptability.

• Robust Surge Protection: Integrated transient suppression and electrical protection circuitry safeguard the host PC’s sensitive motherboard from electrical spikes and surges transmitted through long industrial serial cables.

• Long-Term Support: Sealevel provides robust, long-term driver support and APIs for all major operating systems (Windows, Linux), ensuring system stability and extended product lifecycle.

Exploring the Sealevel PCIe Serial Card Categories

Our catalogue features the specialized lines of Sealevel PCIe serial cards, categorized by port density, speed, and specialized protection features.

High-Port Density Cards

Designed for server, control room, and automated test environments requiring maximum connectivity in minimal space:

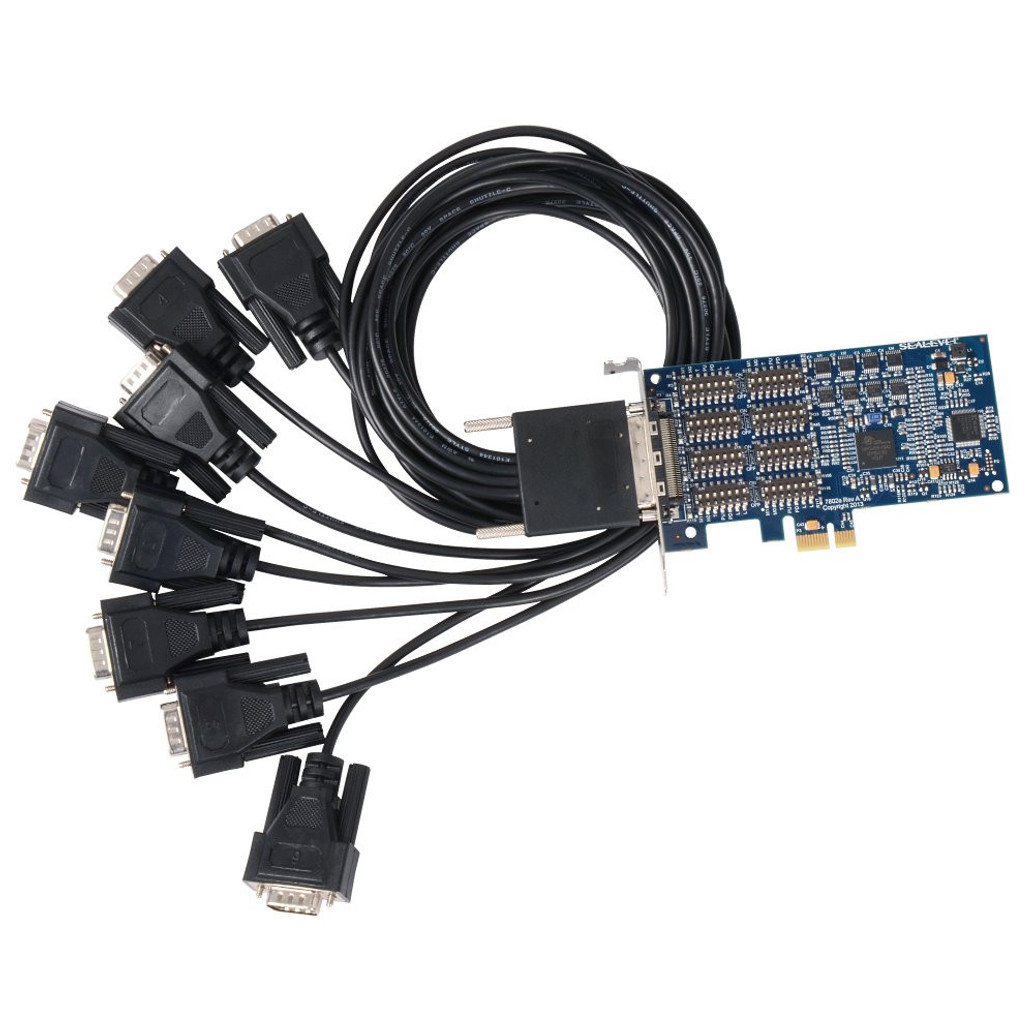

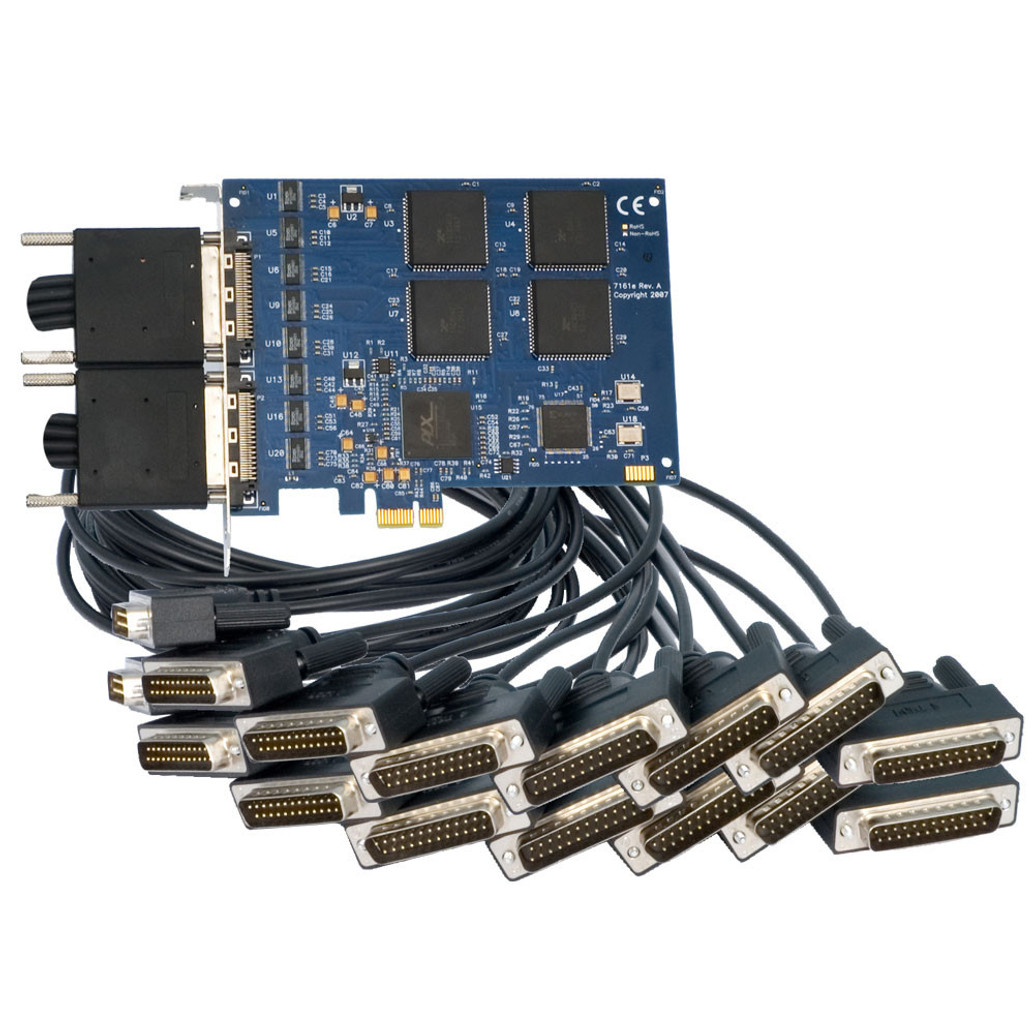

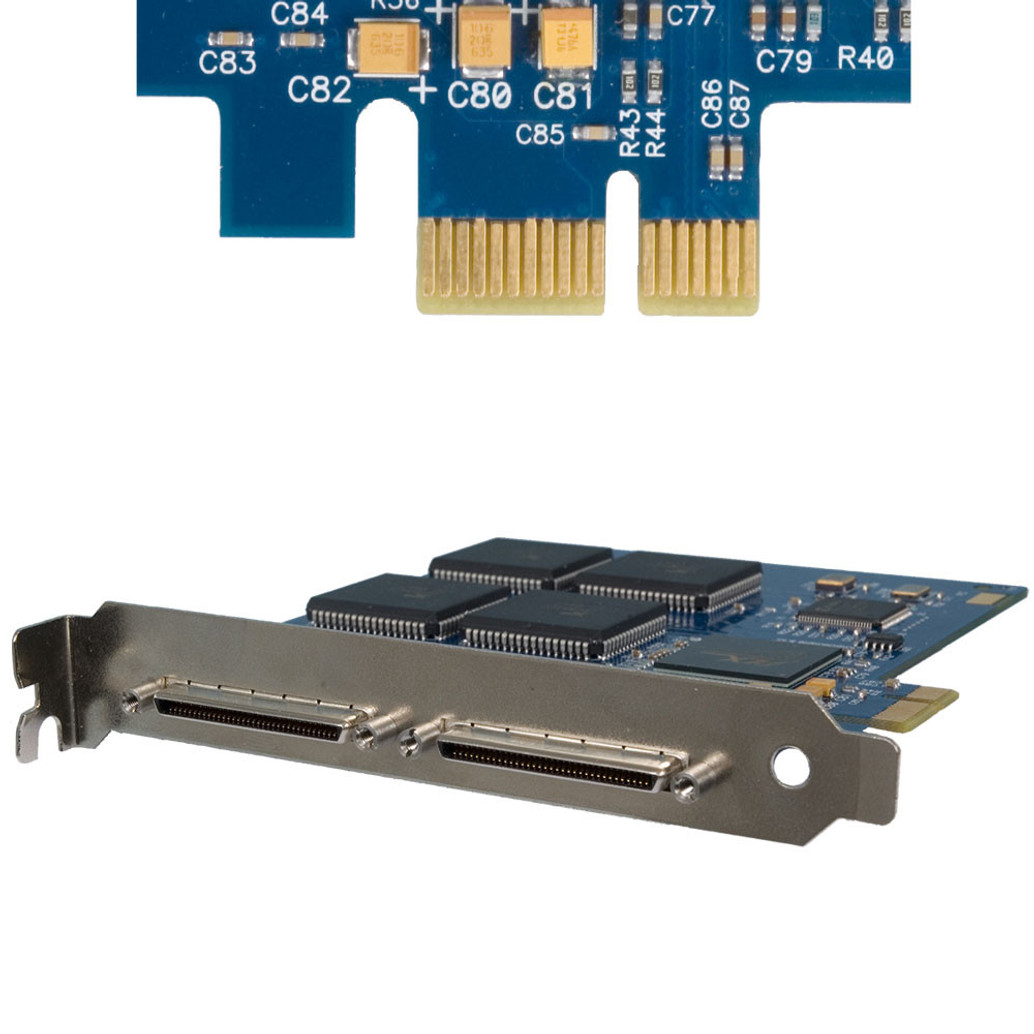

• High Channel Count: Available in configurations ranging from 2 ports up to 16 ports on a single PCIe slot, maximizing the serial channel density within the host PC.

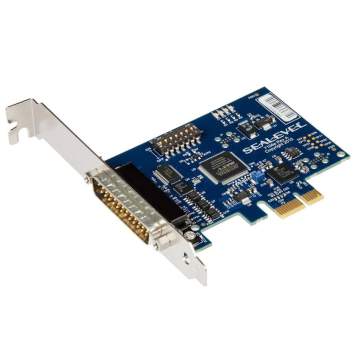

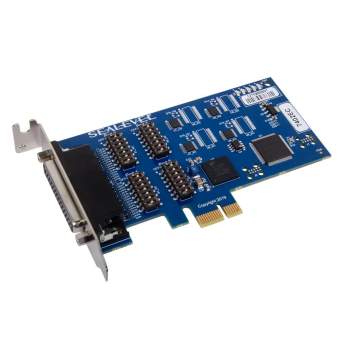

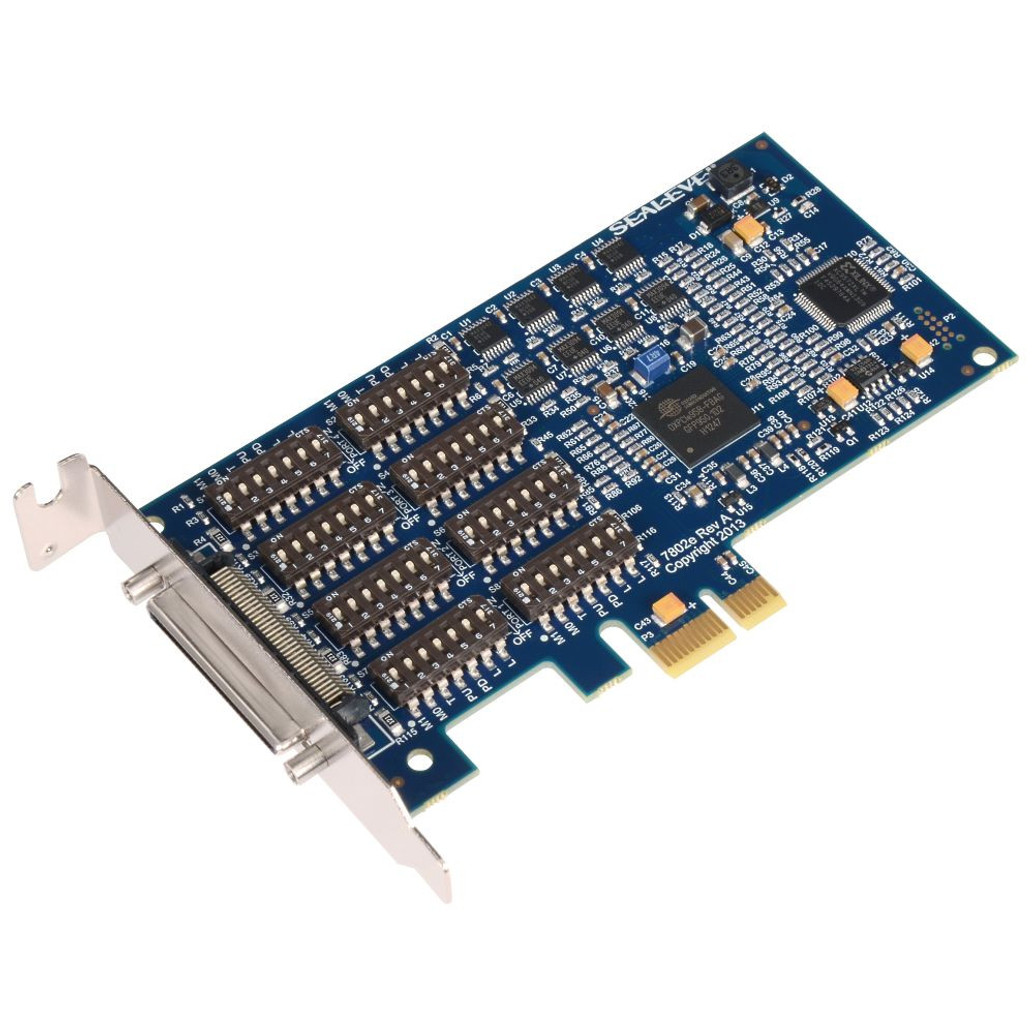

• Low Profile Design: Offering low-profile bracket options, ensuring compatibility with compact servers and small form factor industrial computers.

• Sustained High Speed: Engineered to maintain maximum serial data rates (e.g., up to 921.6 Kbps) concurrently across all ports without performance degradation.

Software-Selectable Multi-Protocol Cards

These versatile cards are essential for organizations that manage a diverse range of serial equipment:

• Universal Connectivity: Provides the flexibility to interface with legacy RS-232 devices, multi-drop RS-485 networks, and long-distance RS-422 applications using the same internal card.

• Custom OEM Solutions: Ideal for manufacturers building specialized test or control computers that must interface with a proprietary mix of client equipment and protocols.

Synchronous and Specialized Cards

Cards designed for specific, highly demanding communication requirements:

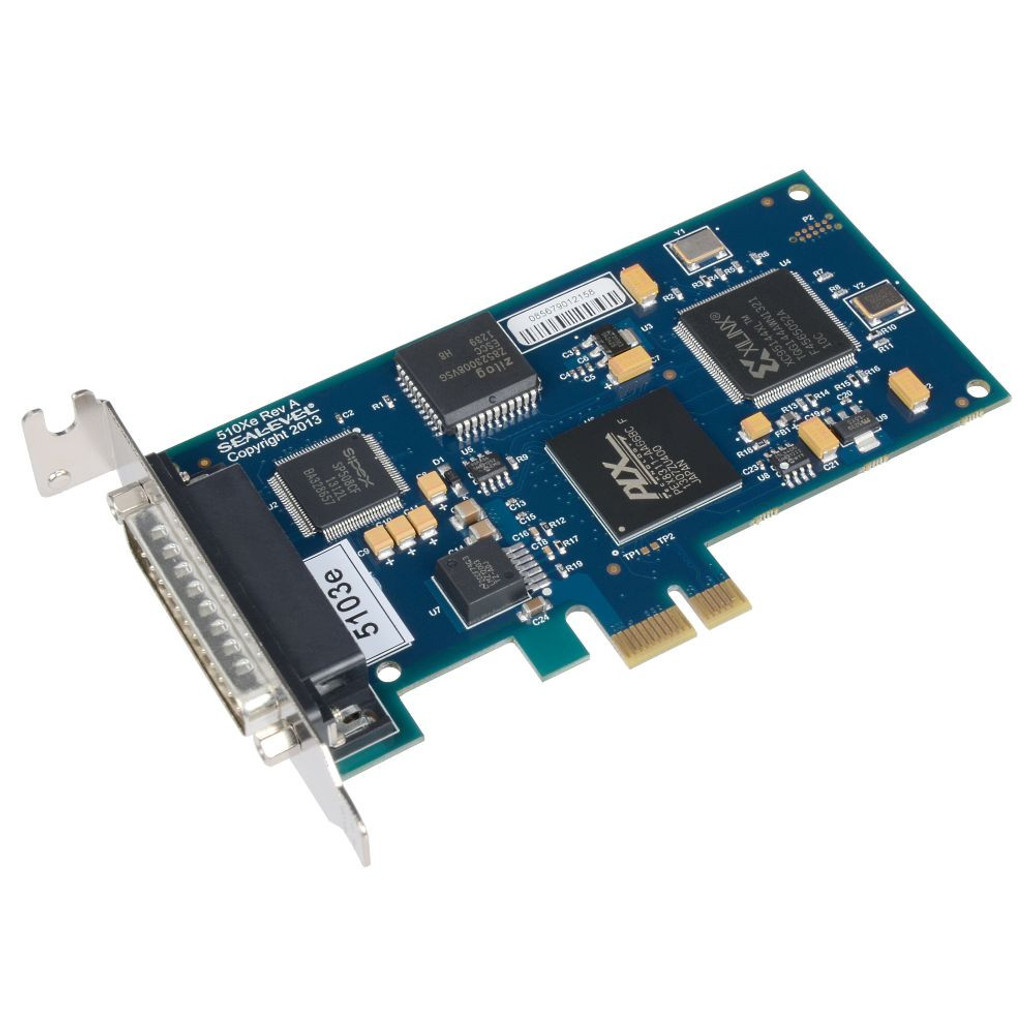

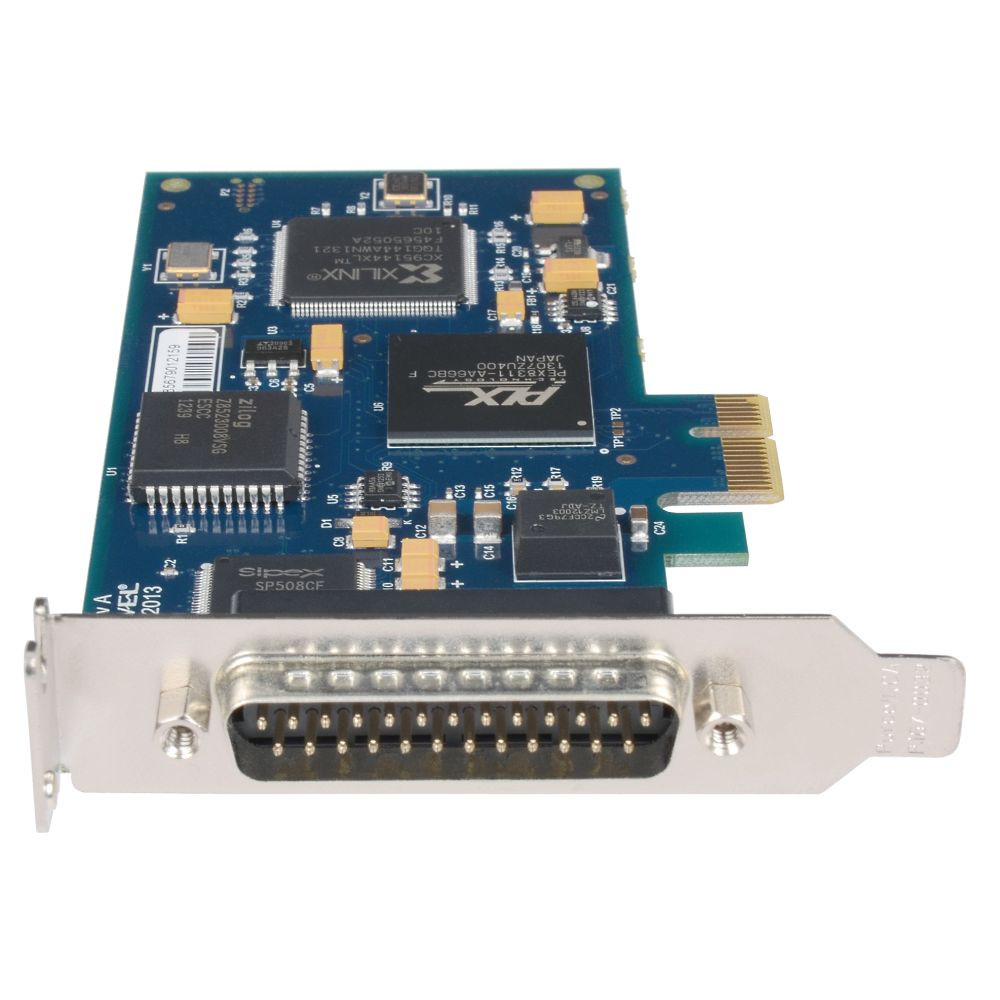

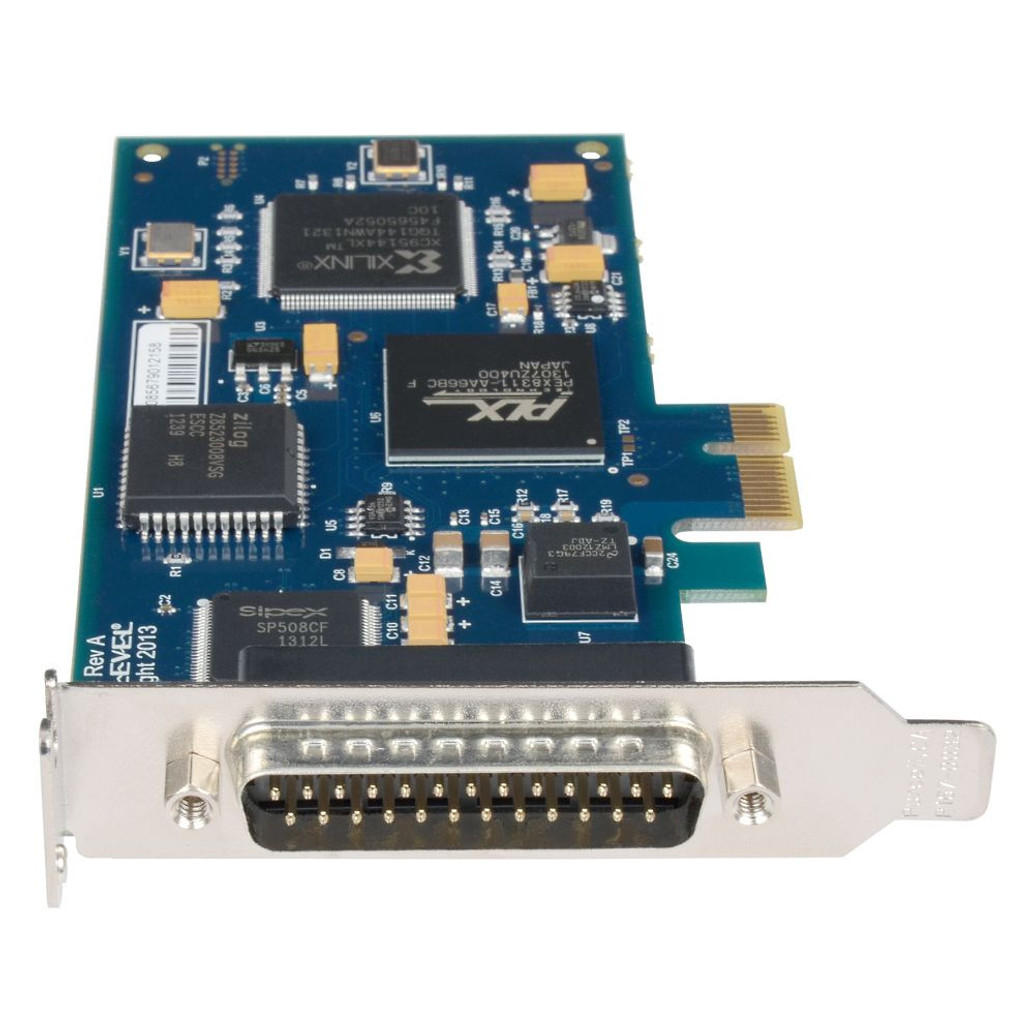

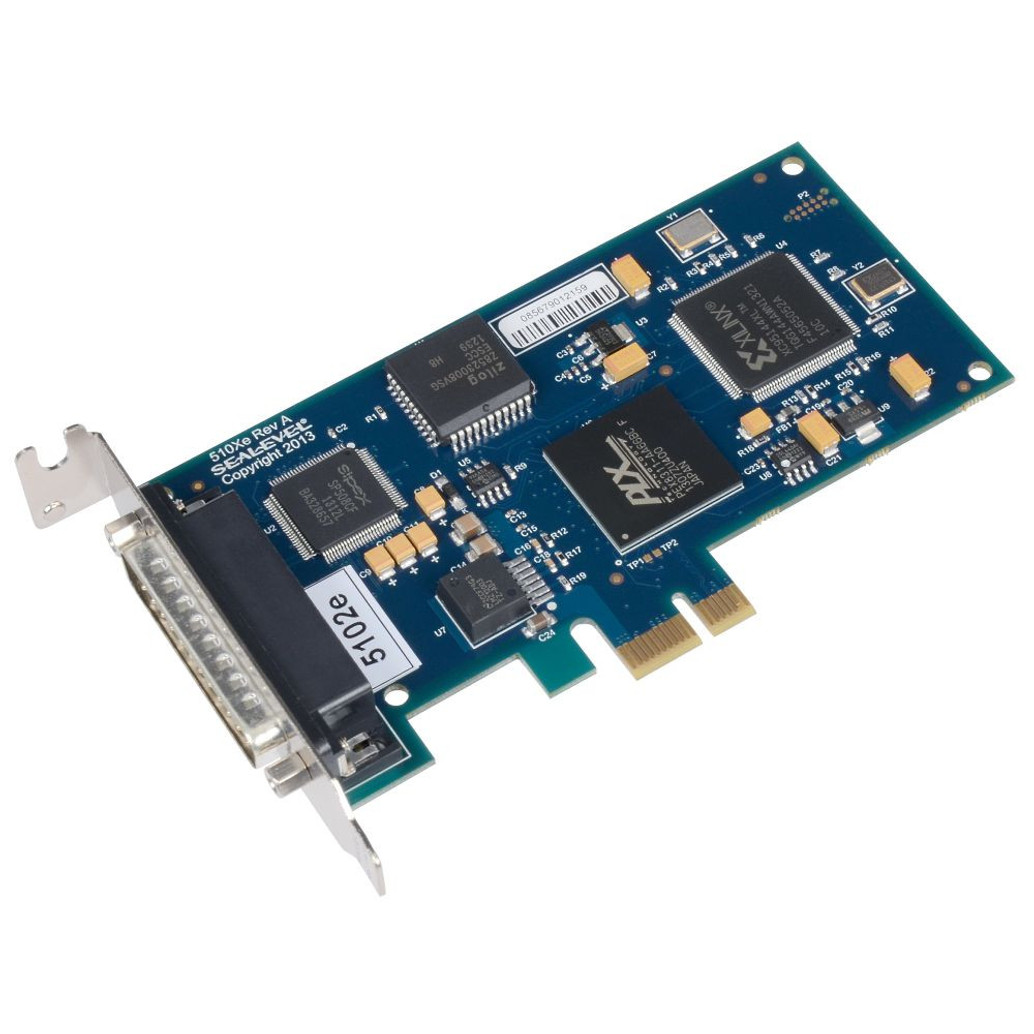

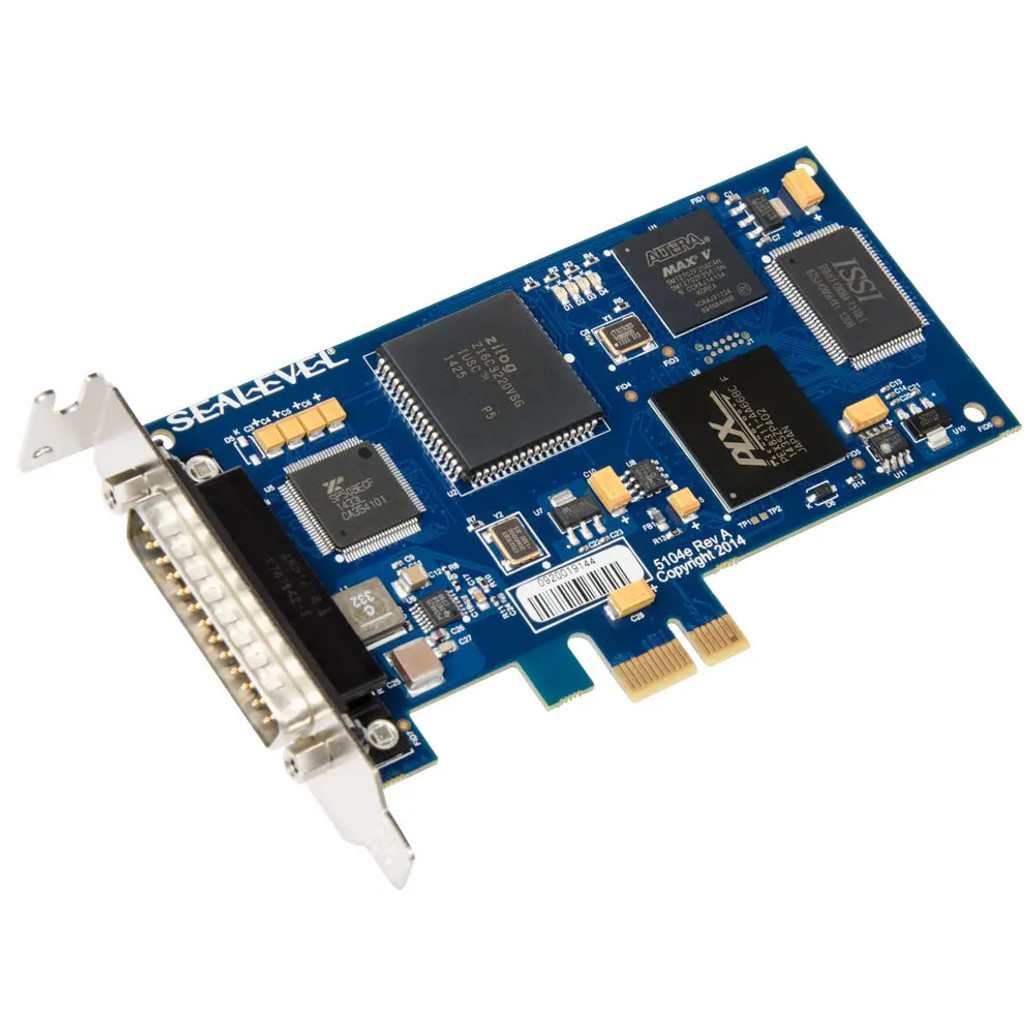

• Synchronous Serial: Specialized cards that support synchronous protocols (e.g., HDLC, SDLC), often used in high-speed telecommunications and military standards (e.g., MIL-STD-1553).

• Optically Isolated Ports: Cards featuring electrical isolation on the serial channels to protect the host PC from ground loops and external voltage differences in highly noisy environments.

Integrated Features for Reliable Data Acquisition

Sealevel PCIe cards incorporate features that ensure superior data reliability and streamline system integration.

• Automatic Send Data Control (RS-485): Hardware automatically manages the RS-485 transceiver direction, simplifying programming for half-duplex communication and ensuring reliable data flow.

• Digital I/O Integration: Select cards may offer auxiliary digital I/O lines alongside the serial ports, integrating basic control and status monitoring into the communication card.

• RoHS and Compliance: Built and tested to meet stringent environmental and regulatory standards, ensuring suitability for global deployment and longevity.

Partner with Revinetech for Sealevel PCIe Connectivity

Selecting the ideal Sealevel PCI Express Serial Card requires assessing the required port count, the necessity of software-selectable protocols, and the critical need for synchronous or isolated operation. Revinetech is your authorized source for the complete Sealevel connectivity portfolio. Our technical specialists are ready to assist you in matching the certified reliability, high throughput, and robust features of the right Sealevel PCIe card to your specific industrial, embedded, and multi-protocol communication demands.

Upgrade your internal communication with modern, high-speed PCIe technology. Browse our catalogue of Sealevel PCI Express Serial Cards today, and contact us for expert advice and a personalized quote.

Frequently Asked Questions (FAQs)

What is the main benefit of using a Sealevel PCIe card over a standard PCI card?

The main benefit is higher speed and compatibility with modern motherboards. A Sealevel PCIe card utilizes the faster, dedicated PCIe lanes, offering superior bandwidth and lower latency compared to the older shared bus architecture of standard PCI, which is being phased out of new PC designs.

What does "software-selectable" mean for a Sealevel PCIe card?

"Software-selectable" means the user or the host application software can dynamically and instantly switch the communication protocol of any port between RS-232, RS-422, or RS-485 via a software command. This eliminates manual configuration and maximizes the card's versatility in the field.

Why are large FIFO buffers important on a multi-port PCIe card?

Large FIFO buffers (First-In, First-Out) are crucial because they allow the serial card to temporarily store bursts of incoming and outgoing data. This minimizes the number of times the host CPU must stop its main task to process the data, resulting in lower CPU utilization and preventing data loss during high-volume traffic.

Does a Sealevel PCIe card support synchronous communication?

Yes. Sealevel offers specialized PCIe synchronous serial cards designed to handle protocols like HDLC or SDLC. These are often used for high-speed, military, or telecommunication applications that require data to be transmitted using a shared clock signal.

How is Sealevel PCIe card longevity guaranteed for industrial systems?

Sealevel guarantees longevity through multiple factors: robust component selection, adherence to strict industrial electrical protection standards, long-term availability of the card design, and continuous, stable driver support that ensures compatibility with future generations of Windows and Linux operating systems.
