PICO | Oscilloscopes

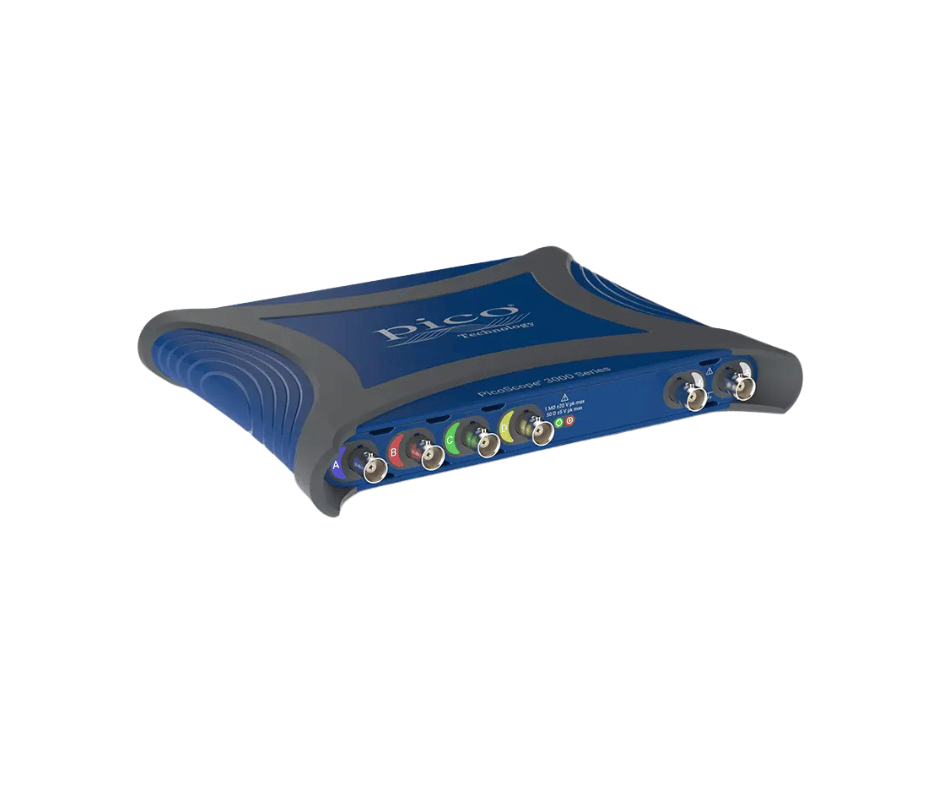

PicoScope® 3000E Series

High-performance USB-powered oscilloscopes with up to 500 MHz bandwidth, 5 GS/s sampling, and 2 GS buffer memory—built for serious engineers in a compact form..

  • Detail
  • Special Features
  • Specification

The PicoScope® 3000E Series defines the next generation of PC-based oscilloscopes—blending benchtop-grade performance with unmatched portability. These USB-powered scopes offer up to 500 MHz analog bandwidth, 5 GS/s sampling rate, and an extraordinary 2 GS capture memory, making them ideal for high-speed embedded design, signal integrity analysis, and serial bus decoding.

Each unit includes 4 analog channels, with MSO models adding 16 digital channels for complete mixed-signal analysis. Whether you're working in a lab or out in the field, the ultra-compact design and USB 3.0 power make the 3000E Series an engineer's ideal portable lab.

Included with every model is the powerful PicoScope 7 software, offering 40+ serial decoders, DeepMeasure™, advanced math channels, mask testing, FFT spectrum analysis, and more—all at no extra cost. Combined with a built-in 14-bit AWG and wide-bandwidth signal generator, this scope delivers a full-featured test and measurement suite in one compact device.

  • Up to 500 MHz analog bandwidth and 5 GS/s real-time sampling

  • 4 analog channels + 16 digital (MSO models)

  • Massive 2 GS deep memory with hardware acceleration

  • Built-in 14-bit AWG and 20 MHz Function Generator

  • Decode 40+ serial protocols on analog + digital inputs

  • PicoScope 7 software for Windows, Linux, macOS

  • 40,000 waveform buffers and DeepMeasure™ analytics

  • FFT spectrum analyzer, power math, pass/fail testing

  • USB 3.0 SuperSpeed with Type-C connectivity

Analog Bandwidth: 100 MHz to 500 MHz
Sampling Rate: Up to 5 GS/s (real-time)
Buffer Memory: Up to 2 GS (per channel)
Channels: 4 analog + 16 digital (MSO models)
Resolution: 8-bit, 10-bit (hardware), 14-bit AWG, enhanced up to 14-bit
Waveform Rate: Up to 300,000 wfms/sec (HAL4 engine)
FFT Spectrum Analyzer: 1M points max, multiple display modes
Math Functions: 50+ including power, phase, RMS, integrals, filters
Triggering: Edge, window, pulse width, dropout, runt, logic, serial pattern
Serial Decoding: 40+ protocols (SPI, CAN, LIN, FlexRay, USB, I²C, etc.)
Function Generator: 100 μHz to 20 MHz (sine, square, ramp, PRBS, etc.)
AWG: 14-bit, 200 MS/s, 32 kS buffer
Display Interface: USB 3.0 SuperSpeed (Type-C)
Software Support: Windows 10/11, macOS 14/15, Linux (Ubuntu, openSUSE)
Languages Supported: 25+ including EN, FR, DE, ZH, RU, JP
Dimensions: 221 × 173 × 30 mm
Weight: < 0.7 kg
Warranty: 5 Years
