PICO | Oscilloscopes

PicoScope® 6000E Series MSO USB Oscilloscopes

High-performance USB oscilloscopes with up to 3 GHz bandwidth, 5 GS/s sampling, 4 GS ultra-deep memory, and 8+16 MSO channels—ideal for mixed-signal debugging, protocol analysis, and high-speed system testing..

  • Detail
  • Special Features
  • Specification

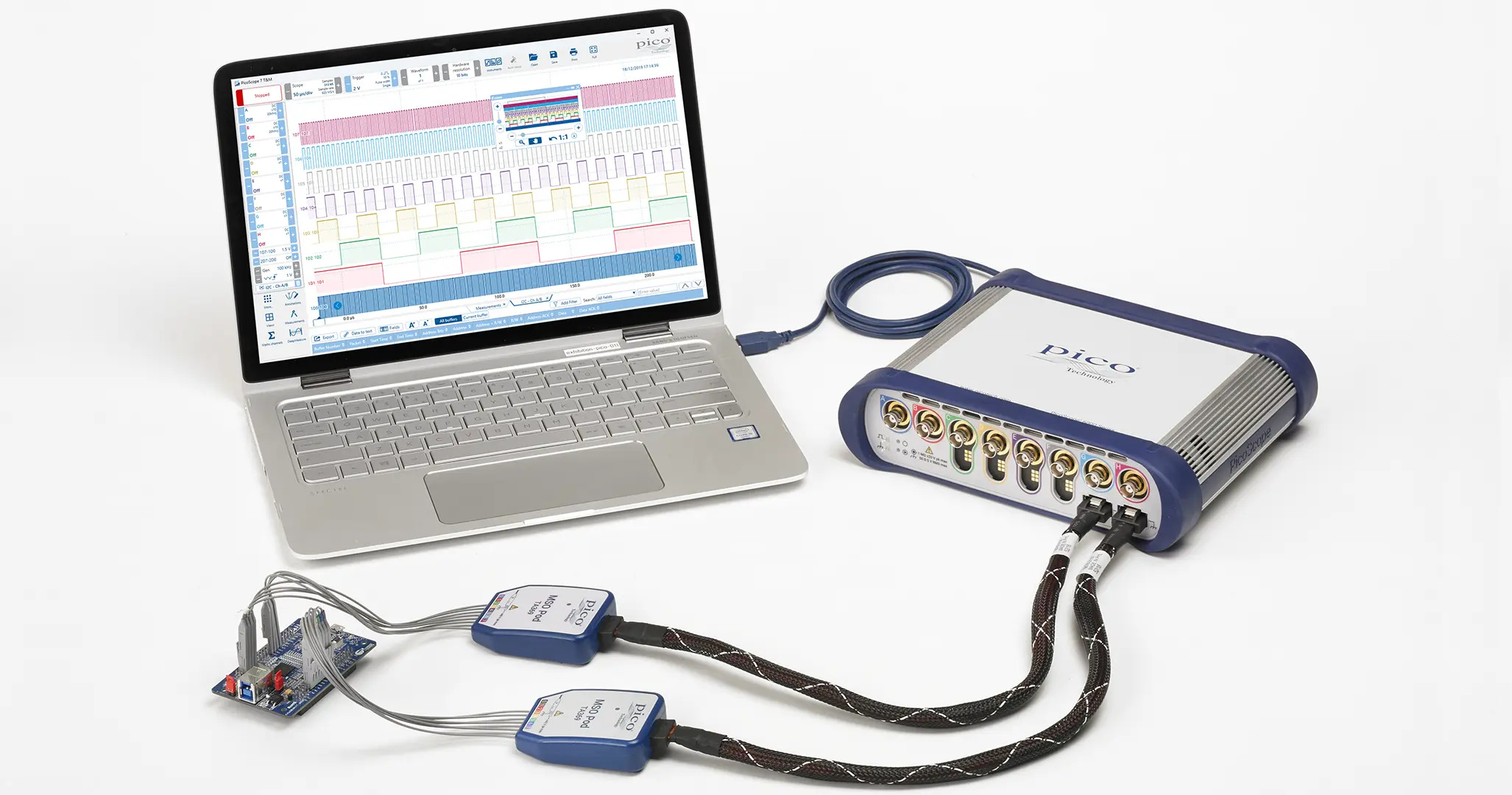

The PicoScope 6000E Series offers desktop-class oscilloscope power in a portable USB design. With models up to 3 GHz bandwidth, 5 GS/s sampling, and 4 GS of capture memory, these scopes are built for performance-critical tasks in R&D, embedded systems, power electronics, and automotive domains.

FlexRes® technology enables dynamic switching between 8-bit to 12-bit resolution, giving users the flexibility to prioritize precision or speed. MSO models provide 16 digital channels with 5 GS/s digital sampling, enabling up to 24-channel signal analysis in total.

Included PicoScope 7 software offers intuitive UI, deep serial decoding, high-res zoom, waveform buffer navigation, and DeepMeasure™ tools. Use the PicoSDK for custom automation or integration into OEM setups, with full hardware control and streaming support up to 312 MS/s.

Advanced digital triggers, built-in AWG, real-time FFT spectrum analysis, segmented memory, and high SFDR (60 dB) make this a versatile instrument for debugging, protocol verification, power analysis, or EMI investigations.

  • Up to 3 GHz analog bandwidth with FlexRes® up to 12-bit resolution

  • 5 GS/s real-time sampling rate for fast signal capture

  • 4 GS ultra-deep memory for long-duration waveform recording

  • 8 analog + 16 digital channels (MSO) for mixed-signal testing

  • Built-in 14-bit AWG & 50 MHz function generator

  • 40+ serial protocol decoders included (I2C, SPI, UART, CAN, LIN, Ethernet, etc.)

  • Advanced digital triggering and mask limit testing

  • Spectrum analyzer, FFT tools, and deep measurement capabilities

  • Compatible with PicoScope 7, PicoSDK, and PicoLog 6

  • USB-powered, compact form factor for lab or field use

  • Free software updates & lifetime tech support

Feature Specification
Bandwidth Up to 3 GHz
Sampling Rate 5 GS/s
Vertical Resolution FlexRes® 8 to 12 bits (up to 16-bit with enh.)
Memory Depth Up to 4 GS (40,000 segments)
Analog Channels Up to 8
Digital Channels (MSO) Up to 16 (via TA369 pods)
Function Generator 50 MHz sine/square, 14-bit AWG, 200 MS/s
Trigger Types Edge, pulse width, logic, runt, window, dropout
Serial Decoders 40+ included (CAN, I2C, SPI, UART, LIN, etc.)
Connectivity USB 3.0, BNC analog, MSO ports, Pico IPI
Software Support PicoScope 7, PicoSDK (C/C++, Python), PicoLog 6
Operating Systems Windows, macOS, Linux
Form Factor Compact USB instrument (bench or portable use)
