PMK Active Voltage Probes: High-Fidelity Signal Acquisition for Oscilloscopes

Welcome to Revinetech's elite category for PMK Active Voltage Probes. In the high-speed world of digital design, semiconductor characterization, and power electronics, the integrity of your oscilloscope measurement is entirely dependent on the quality of the probe. PMK specializes in creating precision, wide-bandwidth probes—both differential and single-ended—that ensure minimal signal distortion, low input capacitance, and reliable signal transfer to the oscilloscope's input.

You are seeking robust, high-bandwidth probes that offer clean signal acquisition, flexibility across various measurement types, and superior transient response for analyzing fast digital edges and sensitive analog signals. Our selection features the complete range of PMK active solutions, including single-ended probes for ground-referenced measurements and advanced differential probes for floating measurements. Trust Revinetech to provide the genuine PMK Active Voltage Probe that delivers certified performance, low circuit loading, and the essential diagnostic accuracy required for validating your cutting-edge electronic designs.

Why PMK Active Voltage Probes are Critical for Modern Debugging

Active probes are fundamentally superior to passive probes for high-speed work because they use integrated electronic components (amplifiers) at the probe tip. This design overcomes the limitations of long passive cables, which introduce capacitance and loading effects that severely distort fast signals.

Mastering Low Loading and High Bandwidth

The core strength of PMK active probes is their commitment to preserving the fidelity of the measured signal:

• Ultra-Low Input Capacitance: Active probes feature extremely low input capacitance (often sub-picofarad). This is critical because it minimizes the probe's loading effect on high-impedance, sensitive circuit nodes, ensuring the device under test (DUT) operates under true electrical conditions.

• Wide Bandwidth and Fast Rise Time: Probes are designed to support bandwidths into the multi-GHz range, accurately capturing the fastest switching edges and highest harmonic content without signal rounding or distortion.

• Superior Transient Response: Optimized internal amplification ensures the probe accurately follows rapid voltage changes, providing precise measurements of rise times and transient events crucial for digital timing analysis.

Versatility in Measurement Types

PMK provides specialized active probes tailored to handle the two most common high-speed measurement scenarios:

• Active Differential Probes: These are essential for measuring the precise voltage difference between two points that are not referenced to ground (floating measurements). They provide high Common Mode Rejection Ratio (CMRR), suppressing noise common to both lines, vital for high-speed serial data buses (like USB, PCIe) and power measurements.

• Active Single-Ended Probes: Used for measuring a signal referenced to ground. These probes contain active amplification to achieve the extremely low input capacitance that is mandatory for probing sensitive clocks, oscillators, and data paths with minimal loading.

• Power Rail Probes: Specialized low-noise probes designed for sensitive measurement of voltage ripple and noise on DC power rails, essential for ensuring power integrity.

Exploring the PMK Active Voltage Probe Categories

Our catalogue features the specialized lines of PMK active probes, categorized by their operation mode, voltage rating, and bandwidth requirements.

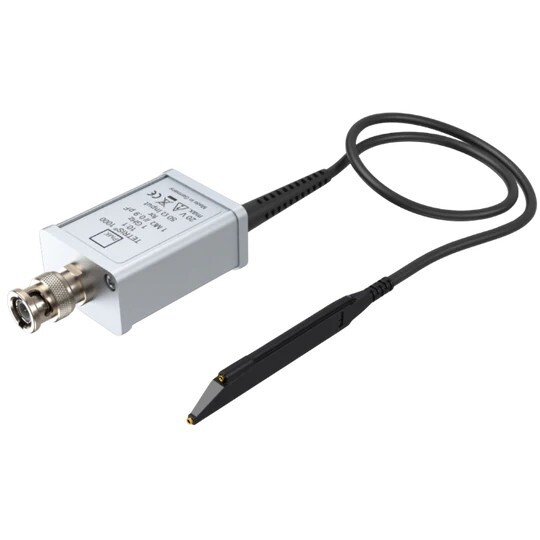

High-Impedance Single-Ended Probes (Low Capacitance)

These probes are the fundamental tools for ground-referenced measurements in digital design:

• Minimal Circuit Disturbance: Providing the highest input impedance and lowest capacitance, essential for probing high-frequency nodes without altering the circuit's performance.

• Wide Dynamic Range: Offering the necessary voltage range and linearity for general-purpose digital and analog debugging tasks.

Active Differential Probes (Floating and High CMRR)

These are the benchmark for complex differential signaling and floating power measurements:

• High CMRR: Optimized for maximum rejection of common-mode noise, guaranteeing that the oscilloscope displays the true differential signal.

• High Voltage Capability: Specialized probes offer the necessary safety and isolation for floating measurements in high-voltage power converters (SiC/GaN).

Integrated System Features and Accessories

PMK offers various accessories to simplify integration and ensure measurement fidelity:

• Probe Tips and Solder-In Heads: A wide selection of accessories, including fine-pitch tips and solder-in adapters, ensures secure, low-inductance connection to small surface-mount test points (SMT).

• Automatic Probe Identification: Select probes feature an automatic identification system that communicates the attenuation and offset settings to compatible oscilloscopes, ensuring correct scaling and readout automatically.

• Integrated Powering: Probes often feature stable power options, including USB power or direct connection via a dedicated oscilloscope interface, providing clean power to the active internal electronics.

Partner with Revinetech for PMK Active Probe Assurance

Selecting the ideal PMK Active Voltage Probe requires assessing the required bandwidth (GHz), the operating mode (differential vs. single-ended), and the maximum voltage rating. Revinetech is your authorized source for the complete PMK probe portfolio. Our technical specialists are ready to assist you in matching the certified performance, low loading characteristics, and safety features of the right PMK probe to your specific digital, RF, and power electronics debugging demands.

Achieve precise, high-fidelity signal capture. Browse our catalogue of PMK Active Voltage Probes today, and contact us for expert advice and a personalized quote.

Frequently Asked Questions (FAQs)

What is the main benefit of an active probe over a passive probe for high-speed signals?

The main benefit is low input capacitance. An active probe uses integrated electronics to achieve ultra-low capacitance (often less than 1 pF). This minimal capacitance prevents the probe from loading the circuit, ensuring that the fast signal's rise time and amplitude are measured accurately without distortion.

What is the significance of the probe's bandwidth rating (e.g., 4 GHz)?

The bandwidth rating determines the maximum frequency the probe can accurately pass to the oscilloscope. For accurate characterization of a digital signal, the probe's bandwidth should generally be high enough to capture the signal's fifth harmonic or be approximately five times the signal's fundamental clock frequency.

Why is CMRR important for an active differential probe?

CMRR (Common Mode Rejection Ratio) is a measure of the active differential probe's ability to reject noise or voltage components common to both measured lines. High CMRR is essential for high-speed serial data buses because it ensures the probe ignores external interference and focuses only on the true voltage difference that represents the data signal.

Can PMK active differential probes be used for power rail measurements?

Yes. Active differential probes are frequently used as power rail probes because they allow the technician to measure the ripple and noise directly between the positive and negative power rails (a differential measurement) with high bandwidth, providing a cleaner and more accurate noise profile than standard probes.

What is the essential safety feature provided by some high-voltage active differential probes?

The essential safety feature is galvanic isolation. This electrically separates the high-voltage test circuit from the low-voltage oscilloscope input, protecting the user and the instrument from potentially hazardous ground loops and high-voltage transients.
