ANRITSU | Signal Spectrum Analyzers

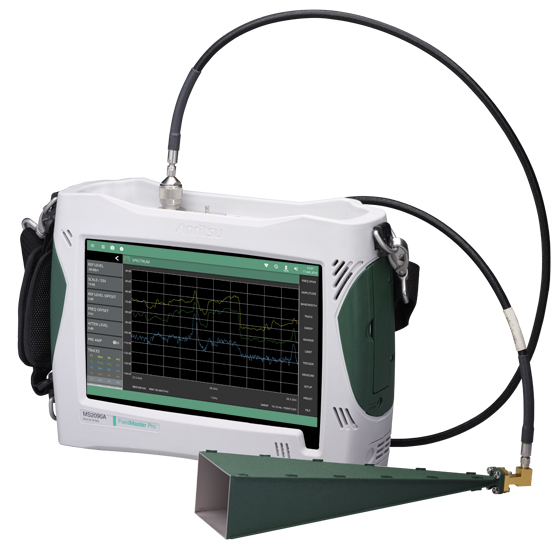

Field Master Pro™ MS2090A

The Field Master Pro™ MS2090A is Anritsu’s most advanced handheld spectrum analyzer, offering continuous frequency coverage up to 54 GHz and real-time spectrum analysis (RTSA) bandwidth up to 150 MHz. Designed for 5G, LTE, satellite, radar, aerospace, and defense applications, it delivers lab-grade RF performance in a rugged, field-portable format..

  • Detail
  • Special Features
  • Specification

The MS2090A Field Master Pro pushes the boundaries of what’s possible in a field spectrum analyzer. With up to 54 GHz of frequency coverage, it's engineered to address emerging challenges in 5G, satcom, radar, backhaul, and interference hunting. The analyzer offers RTSA capabilities with bandwidths up to 150 MHz, critical for capturing bursty or intermittent signals in real time.

It excels in spectrum clearing, transmitter alignment, and spurious/harmonic testing thanks to its superior DANL (–164 dBm) and TOI (+20 dBm). Additionally, its ±0.5 dB typical amplitude accuracy and –110 dBc/Hz phase noise at 1 GHz ensure confidence in critical modulation and RF quality measurements.

Designed for harsh outdoor use, the MS2090A also enables IQ capture for offline 5G frame analysis, channel power and OBW testing, and interference geolocation, making it the ultimate all-in-one analyzer for engineers in the field.

  1. Frequency Range Options: 9 kHz to 9/14/20/26.5/32/43.5/54 GHz.

  2. Ultra-Wide RTSA Bandwidth: 22, 55, 120, or 150 MHz (option-dependent).

  3. High Sensitivity: DANL as low as –164 dBm with preamp.

  4. Strong TOI Performance: +20 dBm (typical).

  5. Phase Noise: –110 dBc/Hz @ 100 kHz offset (1 GHz).

  6. High Precision: ±0.5 dB typical amplitude accuracy.

  7. Demodulation Support: 5G NR, LTE FDD/TDD, SSB, and more.

  8. Advanced Display: Real-time spectrogram and IQ capture of 5G frames.

  9. Rugged Field Use: Touchscreen interface with Site Master cable/antenna test compatibility.

  10. Wide Amplitude & RBW Range: Amplitude from DANL to +30 dBm; RBW from 1 Hz to 10 MHz.

Parameter Value
Frequency Range 9 kHz to 9/14/20/26.5/32/43.5/54 GHz (model dependent)
DANL (with preamp) –164 dBm
TOI +20 dBm (typical)
Phase Noise –110 dBc/Hz @ 1 GHz, 100 kHz offset (typical)
RTSA Bandwidth (Option Dependent) 22 MHz, 55 MHz, 120 MHz, 150 MHz
Analysis Bandwidth Up to 150 MHz
Amplitude Accuracy ±1.3 dB (<14 GHz), ±0.5 dB (typical)
Amplitude Range DANL to +30 dBm
RBW 1 Hz to 10 MHz
Input SWR 1.5
Demodulation Support 5G NR, LTE FDD/TDD, SSB, modulation quality analysis
IQ Capture Supported for 5G frame recording and offline processing
