ITECH | AC Power Supply

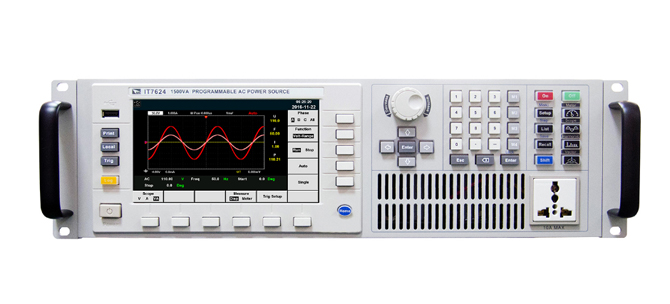

IT7600 High Performance Programmable AC Power Supply

Now includes NABL Calibration Certificate.

The IT7600 High Performance Programmable AC Power Supply integrates advanced digital signal processing technology with a power range of 750VA to 3000VA and a frequency range up to 5kHz. It features built-in power meters, arbitrary waveform generation, and harmonic analysis functions. The IT7600 supports master-slave parallel operation, enabling higher power output and is ideal for renewable energy testing, industrial applications, and IEC standard compliance..

  • Detail
  • Special Features
  • Specification

The IT7600 series is engineered for high precision and flexibility, making it an essential tool for R&D, quality control, and test labs. With an output capability ranging from 750VA to 3000VA, it offers exceptional versatility in simulating AC, DC, and combined AC+DC power. The IT7600 supports multi-channel testing, making it a cost-effective solution for testing multiple devices simultaneously.

The built-in harmonic simulation and analysis functionality makes it ideal for testing power quality, ensuring that products meet industry standards. Its ability to simulate a wide range of waveforms, such as voltage sags, surges, and DC offsets, enhances its suitability for grid-tied applications, especially for products like solar inverters, energy storage systems, and power supplies.

The IT7600 also provides a power meter for accurate real-time measurements, and its user-friendly interface with USB, LAN, and RS232 communication options makes it an excellent choice for automated and remote control testing.

  • High Power Density

    • Offers up to 3000VA power in a compact 3U design for space-saving and efficient integration.

  • Built-in Power Meter & Oscilloscope

    • Equipped with a 7" LCD screen for real-time voltage and current waveform display, plus oscilloscope capabilities to monitor and analyze power quality.

  • Wide Frequency Range

    • Output frequency range from 10Hz to 5000Hz, with programmable frequency and voltage adjustments to suit diverse testing needs.

  • Flexible Output Modes

    • Supports AC, DC, AC+DC, and DC+AC output modes, enabling a wide range of applications, including testing DC bias components and simulating power grid fluctuations.

  • Advanced Harmonic Simulation & Analysis

    • Simulates up to 50th harmonic and provides harmonic analysis for voltage and current up to 500Hz (20th harmonic for frequencies above 500Hz).

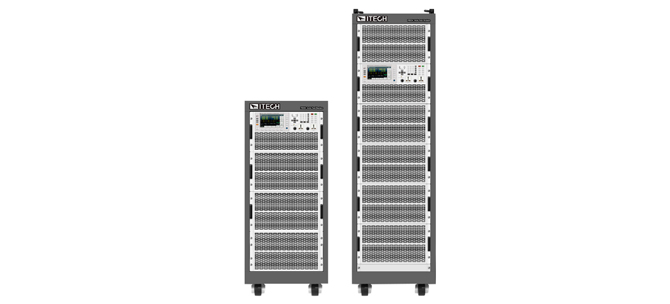

  • Master-Slave Parallel Capability

    • Allows multiple units to be connected in parallel for higher power output, up to 960kVA for demanding applications.

  • Multi-Phase Output

    • Offers single-phase and three-phase output modes, with the ability to simulate unbalanced three-phase systems.

  • Custom Waveform Generation

    • Arbitrary waveform output with CSV file import for custom waveform generation.

  • Surge & Sag Simulation

    • Includes surge and trap wave simulation to replicate voltage fluctuations in real-world conditions.

  • Compliance Testing

    • Built-in support for IEC61000-4-11, 4-13, 4-14, and 4-28 for regulatory testing.



Specification IT7600 High Performance Programmable AC Power Supply
Voltage Range 150V-300V L-N
Current Output Up to 36A (depending on model)
Power Output 750VA to 3000VA
Frequency Range 10Hz - 5000Hz
Resolution 0.1V / 0.1mA
Accuracy ±(0.2% + 0.2% FS)
Waveform Types Sine, Square, Triangle, Sawtooth, Clipped Sine
Harmonic Simulation Up to 50th Harmonic
Interfaces USB, LAN, RS232, CAN
Size (W × H × D) 3U or 6U (Varies by model)
