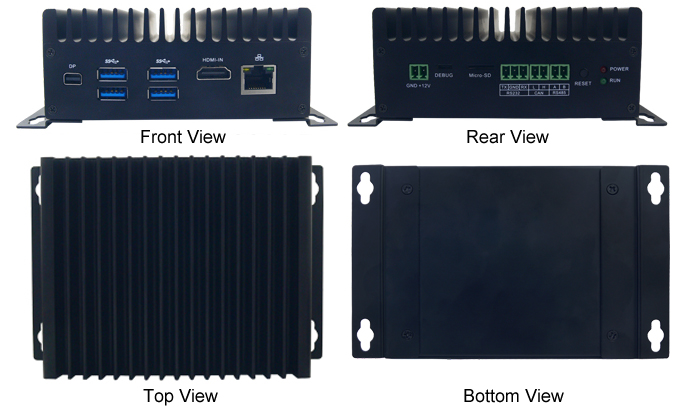

FZ5 EdgeBoard AI Box

The FZ5 EdgeBoard AI Box is a rugged, fanless AI accelerator designed for edge computing applications. Powered by the Xilinx Zynq UltraScale+ ZU5EV MPSoC, it features a 1.5 GHz Quad-core ARM Cortex-A53 processor, 6 TOPS NPU, and 4K video processing capabilities. With 8GB DDR4, 32GB eMMC storage, and a wide range of connectivity options including USB 3.0, Gigabit Ethernet, HDMI, and Mini DP, this box is perfect for AI video analytics, industrial IoT, and real-time video processing applications. It supports PetaLinux and Baidu’s PaddlePaddle AI framework..

  • Detail
  • Special Features
  • Specification

The FZ5 EdgeBoard AI Box integrates Xilinx’s Zynq UltraScale+ ZU5EV MPSoC, which combines a quad-core ARM Cortex-A53 processor with a dual-core ARM Cortex-R5 processor and 6 TOPS NPU for high-performance AI inference. This powerful combination makes the box ideal for edge computing, particularly in applications that require real-time video processing, AI video analytics, and industrial automation.

With 8GB DDR4 and 32GB eMMC storage, along with expandable storage via MicroSD, the FZ5 ensures fast processing and sufficient storage for data-driven tasks. It also supports HDMI and Mini DisplayPort for 4K video output, making it suitable for multimedia applications. Additionally, the box features comprehensive connectivity options such as USB 3.0, RS232, RS485, and Gigabit Ethernet.

The MYD-LR3568 development board integrated within the box is designed for easy integration with external peripherals, and the M.2 PCIe slot offers 4G LTE connectivity (optional). The system is pre-installed with PetaLinux, supporting rapid development, and includes full driver and kernel source code for custom applications.

  • High-Performance AI Processing

    • Powered by the Xilinx Zynq UltraScale+ ZU5EV MPSoC, featuring 1.5 GHz Quad-core ARM Cortex-A53 and 600 MHz dual-core ARM Cortex-R5 processors, and 6 TOPS NPU for high-efficiency AI inference.

  • Advanced 4K Video Processing

    • Supports H.265/H.264/VP9 video decoding up to 4K@60fps and encoding up to 1080P@60fps, providing high-quality multimedia processing.

  • Rugged & Fanless Design

    • Designed to operate in extreme conditions, with a temperature range of -40°C to +70°C, making it suitable for industrial applications.

  • Comprehensive Connectivity

    • Equipped with USB 3.0, Gigabit Ethernet, RS232, RS485, CAN, MicroSD slot, Mini DP, and HDMI for seamless communication and display support.

  • AI Framework Support

    • Supports PetaLinux and Baidu’s PaddlePaddle AI framework, providing robust tools for developing and deploying AI models.

  • Optimized for Edge Computing

    • The compact, fanless design ensures silent operation in environments where space and noise control are essential, perfect for edge AI and IoT applications.

  • Cost-Effective and Scalable

    • Starting at USD 789, it offers exceptional performance with 6 TOPS at a competitive price for a wide range of industrial, multimedia, and AI-powered solutions.

General Features

  • Processor: Xilinx Zynq UltraScale+ ZU5EV MPSoC (Quad-core ARM Cortex-A53 @ 1.5 GHz, Dual-core ARM Cortex-R5 @ 600 MHz)

  • Memory: 8GB DDR4

  • Storage: 32GB eMMC, 64MB QSPI Flash, 32KB EEPROM, MicroSD card slot

  • Power Supply: DC 12V, 3A

  • Operating Temperature: -40°C to +70°C

Connectivity

  • Ethernet: Gigabit Ethernet

  • USB: 4x USB 3.0, 3x USB 2.0

  • Serial Ports: RS232, RS485, CAN

  • Wireless: WiFi/Bluetooth

  • Expansion: M.2 PCIe slot (for 4G LTE module)

  • Display: HDMI (4K), Mini DisplayPort (4K)

Software & Drivers

  • Operating Systems: PetaLinux, Debian, Android

  • AI Frameworks: PaddlePaddle, TensorFlow, Keras, PyTorch, ONNX

  • Drivers: Full suite including USB, Ethernet, Audio, WiFi, CAN, GPIO, HDMI

Physical Characteristics

  • Dimensions: 120mm x 100mm x 50mm

  • Certifications: CE, FCC
