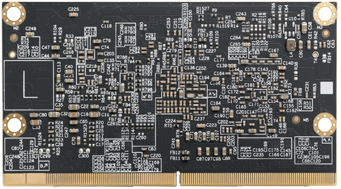

MYC-JD9360 CPU Module

The MYC-JD9360 is a powerful System-on-Module (SoM) based on the SemiDrive D9-Pro processor, featuring a six-core ARM Cortex-A55 CPU, a Cortex-R5 real-time co-processor, and a 3D PowerVR 9XM GPU. It supports high-performance applications such as industrial robots, smart cockpits, medical equipment, and more, offering 2GB LPDDR4 memory, 16GB eMMC storage, and robust connectivity options. With support for AI processing and advanced multimedia, it’s ideal for industries demanding high computation and graphics capabilities..

  • Detail
  • Special Features
  • Specification

The MYC-JD9360 CPU Module is a high-performance embedded system that combines powerful CPU and GPU capabilities with industrial-grade features. The module integrates the SemiDrive D9-Pro processor, which consists of six ARM Cortex-A55 cores and one real-time Cortex-R5 core, offering up to 1.6GHz of computing power. It also includes an advanced PowerVR 9XM GPU capable of 100 GFLOPS, making it ideal for graphics-heavy applications such as gaming, HMI, and automotive displays. With a 0.8 TOPs NPU, it can handle AI tasks such as facial recognition, object tracking, and real-time decision-making.

The module’s memory options, including 2GB LPDDR4 and 16GB eMMC, can be expanded, providing ample storage for applications. Connectivity is robust with dual Gigabit Ethernet ports, dual USB 3.0, and support for PCIe 3.0, SDIO, and multiple UARTs. The MYC-JD9360 also supports advanced multimedia functions, including dual camera interfaces, HDMI output, and audio processing, which makes it ideal for sectors like medical devices, automotive systems, and industrial control.

  • Processor:

    • SemiDrive D9-Pro Processor (D9360)

    • 6 × Cortex-A55 @ 1.6GHz, 1 × Cortex-R5 @ 800MHz (dual-core Lock-step)

    • PowerVR 9XM GPU with 100 GFLOPS

    • VPU for H.264, H.265, VP8, VP9 encoding/decoding

    • 0.8 TOPs NPU (SemiDrive SlimAI Engine)

  • Memory:

    • 2GB LPDDR4 (supports up to 4GB)

    • 16GB eMMC (supports up to 128GB)

    • 256Kbit EEPROM

    • 16MB QSPI Nor Flash

  • Peripheral Connectivity:

    • 2 x Gigabit Ethernet

    • 2 x PCIe 3.0

    • 2 x USB 3.0 (DRD)

    • 2 x SDIO

    • 2 x CAN-FD (supports up to 4 CAN-FD)

    • 11 x UART (up to 16 UARTs supported)

  • Multimedia Support:

    • HDMI, LVDS, MIPI CSI

    • 4 x Single-channel I2S/TDM, 2 x Multi-channel I2S

  • Expansion Interfaces:

    • 314-pin MXM 3.0 gold-finger-edge-card connector

  • Operating System Support:

    • Linux 4.14

    • Ubuntu 18.04

    • Android 10 (coming soon)

  • Processor:

    • SemiDrive D9-Pro (D9360)

    • 6 × Cortex-A55 @ 1.6GHz, 1 × Cortex-R5 @ 800MHz

    • PowerVR 9XM GPU (100 GFLOPS)

    • VPU (H.264/H.265/VP8/VP9 decoding)

    • 0.8 TOPs NPU (SlimAI Engine)

  • Memory:

    • 2GB LPDDR4 (supports up to 4GB)

    • 16GB eMMC (supports up to 128GB)

    • 16MB QSPI Flash, 256Kbit EEPROM

  • Connectivity:

    • 2 × Gigabit Ethernet

    • 2 × USB 3.0 (DRD)

    • 2 × SDIO

    • 2 × CAN-FD

    • Up to 16 x UARTs

    • 2 × PCIe 3.0

    • 1 × GPMC (General Purpose Memory Controller)

    • 2 × LVDS, 1 × MIPI-CSI, 1 × HDMI

  • Power Supply: 5V/5A

  • Temperature Support: -40°C to 85°C (industrial grade)

  • Expansion Interface:

    • 314-pin MXM 3.0 gold-finger-edge-card connector

  • OS Support:

    • Linux 4.14

    • Ubuntu 18.04

    • Android 10 (coming soon)
