MYIR | System-On-Modules (SOMs)

MYC-SAMA5D3X CPU Module

The MYC-SAMA5D3X CPU Module is a compact and efficient embedded solution based on Atmel's ARM Cortex-A5 series processors, offering up to 536MHz processing power. With integrated 512MB DDR2 SDRAM, 256MB Nand Flash, and 16MB Nor Flash, it provides a robust platform for industrial applications. The module includes Gigabit Ethernet, a power management IC, and a DDR2 SO-DIMM 200-pin expansion connector. It is ideal for applications like HMIs, medical devices, and more, with ready-to-run Linux and Android software support..

  • Detail
  • Special Features
  • Specification

The MYC-SAMA5D3X CPU Module integrates the Atmel SAMA5D3 series ARM Cortex-A5 processors, running at speeds of up to 536MHz. It offers a versatile solution for embedded applications requiring low power consumption while providing powerful processing performance. The module features a high level of integration, including 512MB DDR2 SDRAM, 256MB Nand Flash, and 16MB Nor Flash, ensuring reliable storage for your application.

The MYC-SAMA5D3X provides a DDR2 SO-DIMM 200-pin expansion connector, making it compatible with other Atmel-based designs, and offering expansion capabilities for peripherals. The Gigabit Ethernet PHY on board supports high-speed communication, essential for industrial and automation systems. The module is ready to run with Linux and Android operating systems, providing the necessary software support for a fast and easy setup.

MYIR also offers a variety of processor models within the SAMA5D3 family, with the flexibility to choose the one that best fits your project requirements. The module is designed for industrial and embedded applications and supports a broad range of temperatures, making it suitable for demanding environments.

  • Processor:

    • ARM Cortex-A5 processor (Up to 536MHz)

    • 5 available models (SAMA5D31, SAMA5D33, SAMA5D34, SAMA5D35, SAMA5D36)

    • Features MMU, VFPv4, and 128KB SRAM

  • Memory:

    • 512MB DDR2 SDRAM (256MB optional)

    • 256MB Nand Flash

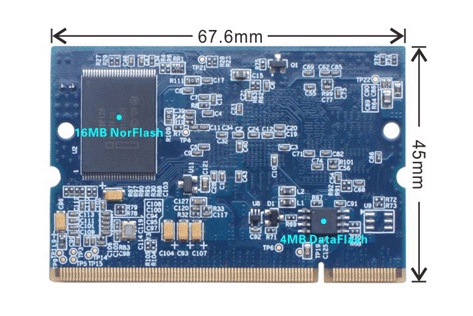

    • 16MB Nor Flash

    • 4MB Data Flash

  • Expansion Interface:

    • 1.8v DDR2 SO-DIMM 200-pin connector for extended peripheral integration

  • Connectivity:

    • On-board Gigabit Ethernet PHY

    • Multiple I/O options through expansion connectors

  • Operating System Support:

    • Linux 3.6.9

    • Android 4.0.4

  • Processor:

    • ARM Cortex-A5, Up to 536MHz

    • MMU, VFPv4, 128KB SRAM, 160KB ROM

    • 32KB Data Cache, 32KB Instruction Cache

    • 5 Processor Models: SAMA5D31, SAMA5D33, SAMA5D34, SAMA5D35, SAMA5D36

  • Memory:

    • 512MB DDR2 SDRAM (supports 256MB/1GB)

    • 256MB Nand Flash

    • 16MB Nor Flash

    • 4MB Data Flash

  • On-board Connectivity:

    • Gigabit Ethernet PHY

  • Expansion Interface:

    • 200-pin DDR2 SO-DIMM connector

  • Software Support:

    • Linux 3.6.9

    • Android 4.0.4

  • Temperature Range:

    • -40 to +85 Celsius (Industrial grade)

  • Other Features:

    • 1 Power Indicator LED (Red)

    • 1 User LED (Blue)
