MYIR | System-On-Modules (SOMs)

MYC-YM62X

The MYC-YM62X is a compact and powerful System-on-Module (SoM) based on the TI AM62x series processors, featuring ARM Cortex-A53 cores and a Cortex-M4F core. The module supports up to 1.4GHz processing, with a Neural Processing Unit (NPU) capable of up to 2.3 TOPS for AI workloads. It offers 1GB to 4GB DDR4, 8GB eMMC, and a 32KB EEPROM, and includes a variety of communication and display interfaces. With robust temperature support from -40°C to +85°C, the MYC-YM62X is ideal for industrial applications such as HMI, PLC, and automation control systems..

  • Detail
  • Special Features
  • Specification

The MYC-YM62X module is built for advanced embedded applications requiring high performance and low power consumption. With up to 1.4GHz ARM Cortex-A53 cores, the module supports heavy computational tasks, enhanced by the inclusion of a Cortex-M4F core and NPU for real-time processing and AI capabilities. The module integrates 1GB/2GB DDR4, 8GB eMMC, and 32KB EEPROM, offering ample storage for industrial IoT applications. The advanced GPU and NPU enable the handling of complex multimedia and machine learning workloads, making this module ideal for applications such as HMI, automation, and edge computing. It also supports dual Gigabit Ethernet, USB, and other industrial communication protocols.

  • Processor:

    • TI AM62x series: AM6254, AM6252, AM6231

    • Up to 1.4GHz Quad ARM Cortex-A53 cores, 400MHz Cortex-M4F core

    • Integrated 2.3 TOPS Neural Processing Unit (NPU) for AI

    • 3D GPU for graphics acceleration (only for AM625 processors)

  • Memory:

    • 1GB/2GB DDR4 (up to 4GB supported)

    • 8GB eMMC (up to 128GB supported)

    • 32KB EEPROM

  • Power Management: TPS6521901 Power Management IC

  • I/O Connectivity:

    • Dual Gigabit Ethernet ports

    • Dual USB 2.0

    • Dual CAN FD, up to 9 UARTs, SPI, I2C, and GPMC

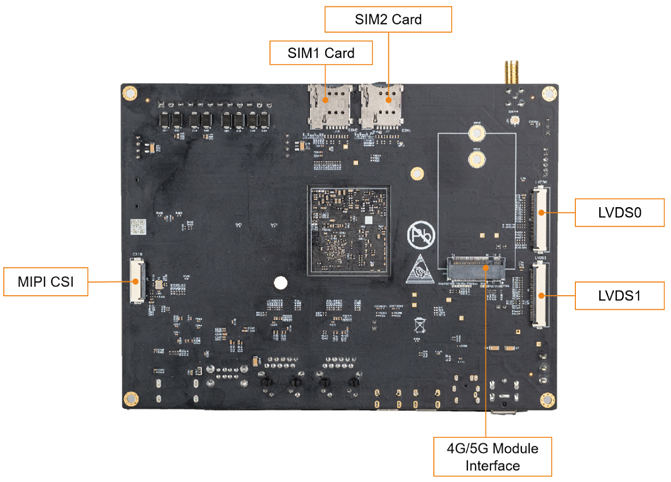

    • Dual LVDS and RGB interfaces

    • MIPI-CSI camera interface

  • Expansion Interfaces:

    • 164-pin Castellated-Hole and 58-pin LGA connectors for easy integration

  • Temperature Range: -40°C to +85°C (industrial grade)

  • Operating System Support:

    • Linux 6.1

  • Processor:

    • TI AM62x (AM6254, AM6252, AM6231)

    • Up to 1.4GHz Quad ARM Cortex-A53 cores

    • 400MHz ARM Cortex-M4F real-time core

    • 2.3 TOPS NPU for AI processing (AM625 processors only)

    • Integrated 3D GPU for display and graphics acceleration

  • Memory:

    • 1GB/2GB DDR4 (supports up to 4GB)

    • 8GB eMMC (supports up to 128GB)

    • 32KB EEPROM

  • Peripherals:

    • Dual Gigabit Ethernet ports

    • Dual USB 2.0

    • Up to 9 UARTs, 3 SPI, 2 CAN FD, 6 I2C

    • GPMC for external memory interface

    • Dual LVDS, RGB, and MIPI-CSI interfaces

    • 3 MCASP audio interfaces

    • 143 GPIOs

  • Expansion Interface:

    • 164-pin Castellated-Hole and 58-pin LGA connectors

  • Power Supply: 5V/1A

  • Operating System Support:

    • Linux 6.1

  • Temperature Range: -40°C to +85°C (Industrial grade)
