MYIR | System-On-Modules (SOMs)

MYC-YT113X

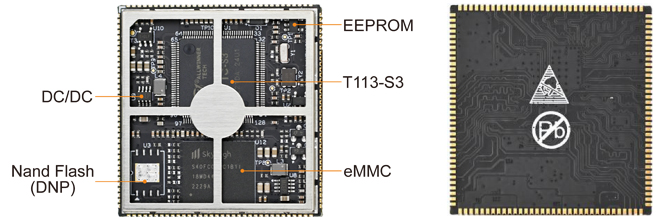

The MYC-YT113X is a low-cost, compact System-on-Module (SoM) based on the Allwinner T113-S3 processor, featuring a dual-core ARM Cortex-A7 CPU, 128MB DDR3, and HiFi4 DSP. With support for 4GB eMMC, 256MB Nand Flash, and a wide range of peripherals like Gigabit Ethernet, CAN, USB 2.0, and UARTs, this module is ideal for applications in HMI, industrial automation, and control terminals..

  • Detail
  • Special Features
  • Specification

The MYC-YT113X is designed for cost-effective embedded systems with a powerful dual-core ARM Cortex-A7 processor, running up to 1.2GHz, combined with a HiFi4 DSP. It offers extensive memory and storage configurations, with options for 4GB eMMC or 256MB Nand Flash and a 32KB EEPROM. The module supports high-definition video capabilities, including 1080p video decoding and encoding. The 140-pin expansion interface allows flexible connections to external peripherals, including Gigabit Ethernet, USB, CAN, and audio/video interfaces. This versatile SoM is ideal for industrial and multimedia applications, providing reliable performance in diverse environments.

  • Processor: Allwinner T113-S3 Dual-core ARM Cortex-A7 @ 1.2GHz with built-in 128MB DDR3

  • DSP: Single-core HiFi4 DSP for enhanced audio and video performance

  • Memory: 4GB eMMC or 256MB Nand Flash with 32KB EEPROM

  • Video: Supports H.265/H.264 video decoding up to 1080p@60fps, and JPEG/MJPEG video encoding

  • Connectivity: 1x Gigabit Ethernet, 2x USB 2.0, 6x UART, 2x CAN interfaces

  • Expansion: 140-pin Castellated-Hole expansion interface for flexible I/O options

  • Display: MIPI DSI, LVDS, and RGB interfaces for versatile display options

  • Audio: Supports audio input/output and TV-In/Out via CVBS interfaces

  • Processor: Allwinner T113-S3, Dual-core ARM Cortex-A7 @ 1.2GHz

  • Memory: 4GB eMMC / 256MB Nand Flash

  • Video Decoding: Up to 1080p@60fps H.265/H.264

  • Expansion: 140-pin stamp hole expansion interface

  • Connectivity: 1x Gigabit Ethernet, 2x USB 2.0, 6x UART, 2x CAN

  • Display: MIPI DSI, LVDS, RGB interfaces

  • Audio: Supports audio input/output, TV-In/Out (CVBS)

  • Power Supply: 5V/1A

  • Operating Temp: -40~85°C (industrial grade)

  • OS Support: Linux 5.4
