The IT9100 Power Meter is a versatile and precise tool designed to measure and analyze electrical parameters in various high-power environments. With the ability to handle inputs up to 1000 Vrms and 50 Arms, it is suitable for testing a wide range of electrical equipment, including motors, UPS systems, household appliances, and power electronics.

The meter features an impressive 100 kHz measurement bandwidth, which allows for detailed analysis of harmonic components. It can measure up to the 50th harmonic, making it an essential tool for detecting harmonic distortion in systems such as generators and inverters. This functionality is particularly useful for ensuring compliance with IEC standards and assessing the power quality of equipment.

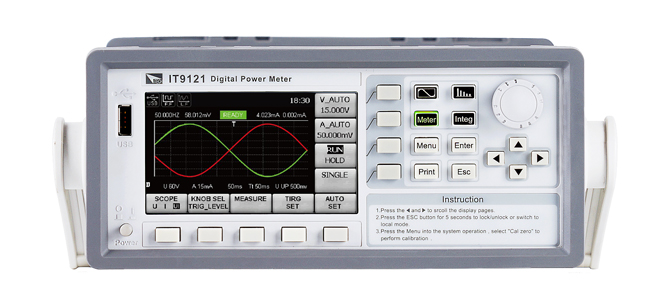

Equipped with a 4.3-inch color TFT LCD display, the IT9100 provides real-time data visualization of various parameters like voltage, current, active power, and harmonic analysis. The display features customizable interface styles that can be tailored to show different parameters in a sequence, ensuring that engineers can easily access the information most important to their testing.

The meter also supports oscilloscope functionality, allowing users to view and capture waveforms directly on the meter. This feature eliminates the need for external oscilloscopes when testing voltage, current, or power fluctuations, providing a streamlined and efficient testing process.

With USB, RS232, and LAN interfaces, the IT9100 can be easily integrated into automated test systems for remote monitoring and data logging. Users can also save measurement data to external storage devices for later analysis.

This power meter’s rich functionality, combined with its high accuracy and ease of use, makes it a powerful tool for engineers and technicians in industries such as power electronics, automotive, appliance testing, and energy monitoring.
