Rigol DG800 Pro Series

Now includes NABL Calibration Certificate.

The RIGOL DG800 Pro Series is a compact function/arbitrary waveform generator designed for circuit development, signal simulation, communication testing, education and field diagnostics. It offers frequencies up to 50 MHz, 625 MSa/s sampling, 16-bit vertical resolution, 2 Mpts standard arbitrary memory per channel and up to two output channels. A 7-inch touchscreen, advanced modulation, sequence generation and USB-C power support enable convenient laboratory and portable testing..

  • Detail
  • Special Features
  • Specification

The RIGOL DG800 Pro Series Function/Arbitrary Waveform Generator is designed for engineers, technicians, research laboratories, educational institutions and electronics manufacturers requiring a flexible source for standard, pulse, modulated and arbitrary signals.

The series combines several test functions in one compact instrument:

  • Function generator
  • Arbitrary waveform generator
  • Pulse generator
  • Noise generator
  • Harmonic generator
  • Analog and digital modulator
  • Sequence generator
  • Frequency sweep generator
  • Burst generator
  • Frequency counter

The DG800 Pro is suitable for stimulating circuits, simulating sensor outputs, testing communication systems, evaluating filters and amplifiers, generating clock signals and reproducing application-specific waveform conditions.



Available Models

The RIGOL DG800 Pro Series includes:

  • DG821 Pro: 25 MHz, one output channel
  • DG822 Pro: 25 MHz, two output channels
  • DG852 Pro: 50 MHz, two output channels

All three models provide:

  • 625 MSa/s maximum sampling rate
  • 16-bit vertical resolution
  • 2 Mpts standard arbitrary waveform memory per channel
  • Optional 8 Mpts memory per channel
  • 7-inch colour touchscreen
  • USB and LAN connectivity
  • Web Control
  • USB Type-C power input
  • Independent external frequency-counter input

The single-channel DG821 Pro can be upgraded to two-channel operation using the applicable channel-upgrade option.



Standard Waveform Generation

The DG800 Pro Series supports common waveforms required for laboratory and electronic test applications.

Available continuous waveform types include:

  • Sine
  • Square
  • Ramp
  • Pulse
  • Noise
  • Arbitrary
  • Harmonic

These waveforms can be used for:

  • Amplifier testing
  • Filter evaluation
  • Clock generation
  • Sensor simulation
  • Analog circuit testing
  • Digital circuit debugging
  • Control-system stimulation
  • Communication experiments
  •

Arbitrary Waveform Generation

The series supports arbitrary waveform generation with a maximum sample rate of 625 MSa/s and 16-bit vertical resolution.

Standard arbitrary waveform memory is 2 Mpts per channel, while the optional memory upgrade increases capacity to 8 Mpts per channel.

Arbitrary waveform generation is useful for reproducing:

  • Sensor outputs
  • Biomedical signals
  • Communication patterns
  • Power disturbances
  • Irregular pulses
  • Recorded signal conditions
  • Automotive waveforms
  • Custom engineering test signals

The arbitrary waveform length can be configured from 32 points per channel to the installed memory limit.



SiFi II Signal Fidelity Technology

The DG800 Pro uses RIGOL SiFi II technology for point-by-point arbitrary waveform generation.

This approach is designed to:

  • Preserve the original waveform point sequence
  • Reduce skipped or repeated waveform points
  • Improve arbitrary waveform fidelity
  • Reduce signal jitter
  • Support precisely adjustable sample rates
  • Improve reproduction of complex waveform shapes

RIGOL specifies output jitter as low as approximately 200 ps RMS under applicable conditions.



Dual-Channel Signal Generation

The DG822 Pro and DG852 Pro include two output channels. The DG821 Pro provides one channel as standard and supports an optional second-channel upgrade.

Dual-channel operation is suitable for:

  • Simultaneous generation of two signals
  • Phase-related waveform testing
  • Differential circuit stimulation
  • Clock and data simulation
  • Reference and excitation signal generation
  • Two-stage circuit testing
  • Dual-input amplifier testing
  • I/Q signal simulation

Each channel can be configured with its own frequency, amplitude, offset, phase, waveform and modulation settings.



Frequency Capability

The maximum sine-wave frequency depends on the selected model:

  • DG821 Pro: 25 MHz
  • DG822 Pro: 25 MHz
  • DG852 Pro: 50 MHz

Waveform-specific frequency limits differ from the maximum sine-wave rating.

For the DG852 Pro:

  • Sine: up to 50 MHz
  • Square: up to 40 MHz
  • Ramp: up to 1 MHz
  • Pulse: up to 25 MHz
  • Arbitrary: up to 15 MHz
  • Harmonic: up to 25 MHz

For the DG821 Pro and DG822 Pro:

  • Sine: up to 25 MHz
  • Square: up to 20 MHz
  • Ramp: up to 1 MHz
  • Pulse: up to 10 MHz
  • Arbitrary: up to 10 MHz
  • Harmonic: up to 10 MHz

The maximum output frequency should therefore be specified according to the selected waveform type rather than applied to every signal function.



Sequence Generation

The DG800 Pro supports advanced sequence generation for combining multiple waveform events into one automated test profile.

The sequence function supports:

  • Up to 64 waveform entries
  • Up to 256 repetitions
  • Sample rates from 1 μSa/s to 312.5 MSa/s
  • Normal, step and interpolation filter modes
  • Multiple arbitrary waveforms within one sequence
  • Seamless execution of programmed test cases

Sequence generation is useful for:

  • Automotive signal simulation
  • Power-state transition testing
  • Sensor-output sequences
  • Communication pattern generation
  • Production validation
  • Fault-condition reproduction
  • Multi-stage stimulus generation

A loop setting of zero can be used for continuous sequence repetition, depending on the configured sequence behaviour.



Modulation Functions

The DG800 Pro supports multiple analog and digital modulation types:

  • AM
  • FM
  • PM
  • SUM
  • ASK
  • FSK
  • PSK
  • PWM

These modulation capabilities support:

  • Communication-system education
  • Receiver testing
  • Carrier modulation experiments
  • Digital communication testing
  • Motor-control development
  • Switching power-supply testing
  • Modulation and demodulation verification
  •

Sweep Function

The sweep function automatically changes the output frequency across a configured range.

Supported sweep types include:

  • Linear sweep
  • Logarithmic sweep
  • Step sweep

Sweep generation is useful for:

  • Filter response testing
  • Amplifier bandwidth measurement
  • Resonance detection
  • Audio-system testing
  • Frequency-response analysis
  • Sensor characterisation
  •

Burst Function

Burst mode produces a programmed number of waveform cycles or a gated waveform.

Supported burst types include:

  • N-cycle burst
  • Gated burst

Burst testing is useful for:

  • Triggered circuit stimulation
  • Ultrasonic system testing
  • Pulse packet generation
  • Transient response evaluation
  • Communication burst simulation
  • Motor and actuator control testing
  •

Pulse Generation

The DG852 Pro supports pulse output up to 25 MHz, while the DG821 Pro and DG822 Pro support pulse output up to 10 MHz.

The DG852 Pro provides waveform rise times as low as approximately 3 ns under specified conditions.

Pulse generation supports:

  • Adjustable pulse width
  • Adjustable rise time
  • Adjustable fall time
  • Duty-cycle control
  • Delay control
  • Triggered pulse generation

This makes the generator suitable for digital circuit testing, timing validation and switching-system analysis.



Harmonic Generation

The built-in harmonic generator supports harmonics up to the 20th order.

Users can configure harmonic components for:

  • Filter testing
  • Amplifier linearity testing
  • Distortion simulation
  • Audio-system analysis
  • Power-quality experiments
  • Measurement equipment verification

Multiple harmonic components can be combined with controlled amplitudes and phases.



Noise Generation

The DG800 Pro includes wide-band noise generation with typical bandwidth greater than 250 MHz under the specified conditions.

Noise generation is useful for:

  • Filter response evaluation
  • Amplifier noise testing
  • Receiver sensitivity experiments
  • Noise immunity testing
  • Communication-system development
  • Statistical signal analysis
  •

Output Amplitude

The DG800 Pro provides a wide output-amplitude range.

Into a 50 Ω load:

  • 1 mVpp to 10 Vpp

Into high impedance:

  • 2 mVpp to 20 Vpp

Maximum combined AC and DC output is:

  • ±5 Vpk into 50 Ω
  • ±10 Vpk into high impedance

The output impedance is nominally 50 Ω.



Independent Frequency Counter

The series includes a dedicated external frequency-counter input with bandwidth up to 500 MHz.

The seven-digit frequency counter can measure:

  • Frequency
  • Period
  • Duty cycle
  • Positive pulse width
  • Negative pulse width

It also supports statistical analysis of measurement results.

The frequency-counter input is separate from the waveform output channels, allowing an external signal to be measured while the generator produces test signals.



7-Inch Colour Touchscreen

The DG800 Pro includes a 7-inch colour touchscreen with 1024 × 600 resolution.

The display supports:

  • Simultaneous dual-channel waveform viewing
  • Touch-based parameter adjustment
  • Waveform preview
  • Modulation configuration
  • Sequence editing
  • File management
  • Counter measurement results
  • System and connectivity settings

The larger display improves visibility when configuring two channels or editing complex arbitrary waveform sequences.



USB Type-C Power

The DG800 Pro uses a USB Type-C power input and supports USB Power Delivery.

The required power specification is:

  • 15 V
  • 3 A
  • 45 W

In addition to the supplied power adapter, a compatible USB PD power source or power bank can be used when it supports the required output.

This enables:

  • Portable field testing
  • Operation away from a standard AC outlet
  • Reduced bench cable requirements
  • Use in mobile engineering setups
  •

Compact and Portable Design

The DG800 Pro measures approximately:

  • 266 mm wide
  • 165 mm high
  • 63 mm deep

Its approximate weight is 1.78 kg.

The instrument can be placed on a workbench or mounted using a compatible monitor-style stand, helping reduce occupied bench space.



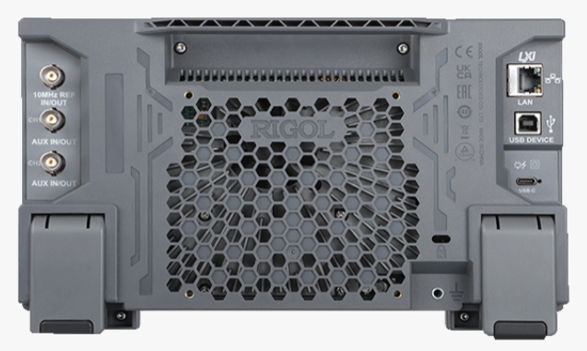

Connectivity and Remote Operation

Available communication and control functions include:

  • USB Host
  • USB Device
  • LAN
  • Web Control
  • FTP file transfer
  • SCPI remote programming

These functions support:

  • Remote browser-based operation
  • Automated test-system integration
  • Waveform-file transfer
  • Instrument configuration
  • Screenshot and data storage
  • PC-based control
  • Production-line automation
  •

Applications:

The RIGOL DG800 Pro Series is suitable for:

  • Analog circuit development
  • Digital circuit testing
  • Embedded-system debugging
  • Amplifier testing
  • Filter response testing
  • Sensor simulation
  • Pulse and clock generation
  • Communication-system testing
  • Modulation experiments
  • Power electronics development
  • Motor-control testing
  • Automotive electronics
  • Biomedical signal simulation
  • Educational laboratories
  • Research and development
  • Production testing
  • Field diagnostics
  • Service and repair laboratories
  •

Why Buy from Revine Tech:

Revine Tech provides professional function generators, oscilloscopes, probes and electronic test equipment for laboratory, educational, industrial and research applications.

Our technical team can help customers select the appropriate DG800 Pro model based on:

  • Maximum required signal frequency
  • Single-channel or dual-channel operation
  • Sine, pulse or square-wave requirements
  • Arbitrary waveform length
  • Sequence-generation requirements
  • Modulation requirements
  • Output-amplitude range
  • Frequency-counter requirements
  • Portable power requirements
  • LAN and Web Control integration
  • Automated test-system requirements
  • Calibration and documentation

The final RIGOL DG800 Pro price depends on the selected model, channel configuration, memory upgrade, accessories and calibration requirements.



Up to 50 MHz Output Frequency

The DG852 Pro provides sine-wave output up to 50 MHz.

The DG821 Pro and DG822 Pro provide sine-wave output up to 25 MHz.

The higher frequency range of the DG852 Pro makes it suitable for:

  • Faster analog circuit testing
  • Filter characterisation
  • Communication experiments
  • High-frequency signal stimulation
  • Clock and pulse testing
  •

625 MSa/s Sampling Rate

All DG800 Pro models provide a maximum sampling rate of 625 MSa/s.

This supports detailed waveform generation and improved reproduction of fast waveform transitions.



16-Bit Vertical Resolution

The 16-bit output system provides up to 65,536 amplitude levels.

Benefits include:

  • Fine amplitude adjustment
  • Smooth arbitrary waveform generation
  • Better low-level signal control
  • Reduced quantisation steps
  • Improved waveform fidelity

2 Mpts Standard Arbitrary Memory

Each channel includes 2 Mpts of standard waveform memory.

This supports detailed custom waveforms and longer signal records than basic generators with shorter memory.



Optional 8 Mpts Memory

The DG800 Pro-3RL option expands arbitrary waveform memory to 8 Mpts per channel.

Additional memory is useful for:

  • Long arbitrary signals
  • Detailed waveform reproduction
  • Communication patterns
  • Extended test sequences
  • Recorded signal simulation
  •

Up to 64 Sequence Events

Sequence mode supports up to 64 individual waveform entries within one programmed sequence.

This allows multiple test conditions to be prepared and executed automatically.



Up to 256 Sequence Repetitions

Each sequence can be configured for up to 256 repetitions, with continuous looping also available through the applicable loop setting.



40 MHz Square-Wave Output

The DG852 Pro generates square waves up to 40 MHz.

This is useful for:

  • Clock generation
  • Logic circuit testing
  • Timing analysis
  • Digital input stimulation
  • High-speed switching tests
  •

25 MHz Pulse Output

The DG852 Pro supports pulse generation up to 25 MHz with rise times as low as approximately 3 ns under specified conditions.



Up to 20th-Order Harmonic Generation

The integrated harmonic generator supports up to the 20th harmonic.

This supports advanced filter, amplifier and distortion testing.



Wide Modulation Support

The series supports:

  • AM
  • FM
  • PM
  • SUM
  • ASK
  • FSK
  • PSK
  • PWM
  •

High-Resolution 500 MHz Frequency Counter

The independent seven-digit frequency counter supports external signals up to 500 MHz.



Dual-Channel Display and Editing

The 7-inch touchscreen allows both channel waveforms and settings to be viewed and adjusted from the same screen.



Web Control

Web Control allows users to access and operate the generator through a compatible browser over the network.

This is useful for:

  • Remote laboratories
  • Shared test benches
  • Production systems
  • Classroom demonstrations
  • Equipment located inside test enclosures
  •

USB-C Mobile Power Support

The instrument can operate from a compatible 45 W USB PD power source, supporting field and mobile measurements.



Compact 1.78 kg Design

The thin, lightweight enclosure supports laboratory, classroom and field deployment without requiring a conventional full-size benchtop chassis.

Model Comparison

Model Maximum Sine Frequency Channels Sample Rate Vertical Resolution Standard Arbitrary Memory
DG821 Pro 25 MHz 1 625 MSa/s 16 bits 2 Mpts
DG822 Pro 25 MHz 2 625 MSa/s 16 bits 2 Mpts per channel
DG852 Pro 50 MHz 2 625 MSa/s 16 bits 2 Mpts per channel



General Technical Specifications

Specification Details
Product Series RIGOL DG800 Pro Series
Product Type Function/Arbitrary Waveform Generator
Available Models DG821 Pro, DG822 Pro and DG852 Pro
Maximum Sine Frequency 25 MHz or 50 MHz, model-dependent
Output Channels One or two, model-dependent
Maximum Sample Rate 625 MSa/s
Vertical Resolution 16 bits
Standard Arbitrary Memory 2 Mpts per channel
Optional Arbitrary Memory 8 Mpts per channel
Basic Waveforms Sine, square, ramp, pulse, noise, arbitrary and harmonic
Output Modes Continuous, modulation, sweep, burst and advanced
Modulation Types AM, FM, PM, SUM, ASK, FSK, PSK and PWM
Sweep Types Linear, logarithmic and step
Burst Types N-cycle and gated
Advanced Functions Sequence and arbitrary waveform
Sequence Entries Up to 64
Sequence Loops 0 to 256
Maximum Harmonic Order 20th
Frequency Counter Seven digits, up to 500 MHz
Display 7-inch colour touchscreen
Display Resolution 1024 × 600 pixels
Connectivity USB Host, USB Device and LAN
Remote Functions Web Control, FTP and SCPI
Power Input USB PD Type-C, 15 V, 3 A, 45 W
Dimensions Approximately 266 × 165 × 63 mm
Approximate Weight 1.78 kg
Recommended Calibration Interval 12 months



Waveform Frequency Specifications

Waveform DG821 Pro DG822 Pro DG852 Pro
Sine 1 μHz to 25 MHz 1 μHz to 25 MHz 1 μHz to 50 MHz
Square 1 μHz to 20 MHz 1 μHz to 20 MHz 1 μHz to 40 MHz
Ramp 1 μHz to 1 MHz 1 μHz to 1 MHz 1 μHz to 1 MHz
Pulse 1 μHz to 10 MHz 1 μHz to 10 MHz 1 μHz to 25 MHz
Arbitrary 1 μHz to 10 MHz 1 μHz to 10 MHz 1 μHz to 15 MHz
Harmonic 1 mHz to 10 MHz 1 mHz to 10 MHz 1 mHz to 25 MHz
Sequence Sample Rate 1 μSa/s to 312.5 MSa/s 1 μSa/s to 312.5 MSa/s 1 μSa/s to 312.5 MSa/s



Output Specifications

Specification Details
Amplitude into 50 Ω 1 mVpp to 10 Vpp
Amplitude into High Impedance 2 mVpp to 20 Vpp
Amplitude Resolution 0.1 mVpp, 0.1 mVrms, 1 mV, 0.1 dBm or four digits
Amplitude Units Vpp, Vrms, dBm and V
DC Offset into 50 Ω Up to ±5 Vpk combined AC and DC
DC Offset into High Impedance Up to ±10 Vpk combined AC and DC
Output Impedance 50 Ω nominal
Frequency Resolution 1 μHz or 12 digits
Time-Base Accuracy ±2 ppm



Sequence Specifications

Specification Details
Sequence Entries Up to 64
Loop Range 0 to 256
Sample Rate 1 μSa/s to 312.5 MSa/s
Waveform Length 32 points to 2 Mpts per channel standard
Optional Waveform Length Up to 8 Mpts per channel
Filter Modes Normal, step and interpolation
Primary Use Multi-event signal simulation and automated stimulus generation



DG852 Pro Key Specifications

Specification DG852 Pro
Maximum Sine Frequency 50 MHz
Channels 2
Maximum Sample Rate 625 MSa/s
Vertical Resolution 16 bits
Standard Arbitrary Memory 2 Mpts per channel
Optional Arbitrary Memory 8 Mpts per channel
Maximum Square Frequency 40 MHz
Maximum Pulse Frequency 25 MHz
Maximum Ramp Frequency 1 MHz
Maximum Arbitrary Frequency 15 MHz
Maximum Harmonic Frequency 25 MHz
Maximum Harmonic Order 20th
Frequency Counter Bandwidth 500 MHz
Display 7-inch touchscreen
Display Resolution 1024 × 600



Frequency Counter Specifications

Specification Details
Maximum Input Frequency 500 MHz
Display Resolution Seven digits
Measurements Frequency, period, duty cycle, positive pulse width and negative pulse width
Statistical Analysis Supported
Input Connection Independent front-panel counter input



Physical and Power Specifications

Specification Details
Width Approximately 266 mm
Height Approximately 165 mm
Depth Approximately 63 mm
Approximate Weight 1.78 kg
Power Connector USB Type-C
Required Power USB PD 15 V, 3 A, 45 W
AC Adapter Input 100 V to 240 V, 50 Hz to 60 Hz
Portable Power Support Compatible USB PD power source or power bank
Monitor Stand Support Supported with compatible mounting hardware
