The RIGOL DL3000 Series Programmable DC Electronic Load is designed for engineers, power electronics laboratories, production facilities and quality-assurance teams that need to test how a power source performs under controlled electrical loading.
The series can simulate different load conditions by drawing a programmed amount of current or power from the connected device under test. It is suitable for evaluating regulated power supplies, switching-mode power supplies, batteries, battery chargers, DC-DC converters, photovoltaic systems, automotive electronics, server power supplies and semiconductor power devices.
The current DL3000 family includes:
- DL3021: 150 V, 40 A, 200 W and 15 kHz dynamic mode
- DL3021A: 150 V, 40 A, 200 W and 30 kHz dynamic mode
- DL3031: 150 V, 60 A, 350 W and 15 kHz dynamic mode
- DL3031A: 150 V, 60 A, 350 W and 30 kHz dynamic mode
- DL3041: 200 V, 70 A, 450 W and 30 kHz dynamic mode
All models are single-channel programmable DC electronic loads. The DL3041 is the highest-power model in the series and is intended for applications requiring greater voltage, current and power-handling capability.
Four Static Operating Modes
The RIGOL DL3000 supports four standard static operating modes:
- Constant Current
- Constant Voltage
- Constant Resistance
- Constant Power
These modes allow users to reproduce different real-world load behaviours during power-source testing.
Constant Current Mode
In Constant Current mode, the electronic load draws a fixed current regardless of changes in the input voltage, within the permitted operating range.
This mode is suitable for:
- Power-supply load regulation testing
- Charger output testing
- Battery discharge testing
- Current-source validation
- DC converter testing
Constant Voltage Mode
In Constant Voltage mode, the electronic load adjusts the current to maintain a programmed input voltage.
This mode is useful for:
- Battery charger testing
- Current-source testing
- Photovoltaic source simulation
- Voltage-clamp applications
- Fuel-cell testing
Constant Resistance Mode
In Constant Resistance mode, the load simulates a programmed resistance. The current changes automatically according to the input voltage.
Typical applications include:
- Resistive load simulation
- Power-supply testing
- Automotive electrical testing
- Sensor and control-circuit validation
Constant Power Mode
In Constant Power mode, the load adjusts the current to maintain a programmed power level as the input voltage changes.
This mode is useful for simulating:
- DC-DC converter input loads
- Server and communication equipment
- Constant-power electronic systems
- Battery-powered devices
- Industrial electronic loads
-
Dynamic and Transient Testing
The DL3000 supports dynamic loading that switches between two programmed levels. This helps engineers evaluate how a power source responds when load demand changes suddenly.
The series provides three dynamic modes:
Selected models support dynamic operation up to 30 kHz. The DL3021 and DL3031 provide up to 15 kHz, while the DL3021A, DL3031A and DL3041 support up to 30 kHz.
Dynamic testing can be used to measure:
- Transient response
- Voltage recovery time
- Overshoot and undershoot
- Power-supply stability
- Output regulation
- Converter control-loop behaviour
- Battery response to pulsed loads
The DL3041 provides an adjustable current slew rate from 0.001 A/μs to 5 A/μs, allowing users to control how quickly the current changes between programmed levels.
List Sequence Function
The List function allows users to generate complex load profiles consisting of multiple programmed steps.
Up to 512 steps can be configured. Each step can include:
- Load value
- Step duration
- Current slew rate in CC mode
- Number of repetitions
- End state
List sequences are useful for:
- Simulating real product power consumption
- Reproducing vehicle electrical loads
- Testing charger response
- Running automated reliability cycles
- Simulating changing server workloads
- Testing power supplies against repeated load profiles
-
Battery Testing
The built-in battery test function allows users to discharge a battery under controlled conditions and measure its performance.
Battery testing can include:
- Constant-current discharge
- Battery capacity measurement
- Discharge time measurement
- Cut-off voltage control
- Cut-off capacity control
- Cut-off time control
The test can stop automatically when the configured voltage, capacity or discharge-time condition is reached.
This function is suitable for:
- Rechargeable battery evaluation
- Battery pack testing
- Cell characterisation
- Capacity verification
- Battery ageing studies
- Quality-control testing
-
OCP and OPP Testing
The DL3000 includes dedicated Overcurrent Protection and Overpower Protection test functions.
OCP Testing
OCP testing gradually increases the current load according to programmed steps until the connected power source activates its overcurrent protection.
This helps engineers determine:
- OCP activation current
- Protection response time
- Pass or fail result
- Recovery behaviour
- Protection consistency
-
OPP Testing
OPP testing increases the load power in programmed steps to determine when the power source activates overpower protection.
This is suitable for:
- SMPS protection validation
- Adapter testing
- DC-DC converter testing
- Server power-supply testing
- Charger protection testing
-
Short-Circuit Testing
The short-circuit test function allows the electronic load to simulate a short-load condition within the instrument’s rated operating limits.
This helps users evaluate:
- Power-supply short-circuit protection
- Current limiting
- Protection response
- Recovery after fault removal
- Device safety behaviour
The output capability and protection rating of the device under test should always be reviewed before performing this test.
Factory Test Function
The Factory function supports repetitive pass/fail testing in production and quality-control environments.
Users can configure:
- Operating mode
- Test value
- Upper limit
- Lower limit
- Pass indication
- Fail indication
- Audible status alerts
This function helps simplify routine production testing without requiring complex external software.
Waveform Display
The 4.3-inch TFT LCD can display changing voltage, current and power values as a waveform.
Users can:
- Observe real-time parameter trends
- Pause the waveform
- Zoom into the waveform
- Record displayed data
- Capture screenshots
- Review load behaviour visually
The waveform display is useful for monitoring dynamic tests, battery discharge and changing power conditions.
Measurement and Readback
The series provides voltage, current and power readback for monitoring the connected device under test.
Minimum available readback resolution can reach:
High-resolution readback may depend on the model or installed option.
This measurement capability helps users evaluate:
- Output voltage
- Load current
- Input power
- Battery discharge behaviour
- Protection thresholds
- Power-supply regulation
-
Protection Functions
The DL3000 includes protection features intended to protect both the electronic load and the connected test system.
Protection functions include:
- Overvoltage protection
- Overcurrent protection
- Overpower protection
- Overtemperature protection
- Reverse-voltage protection
When a protection condition occurs, the load can turn off its input and stop drawing current. A warning message is displayed to indicate the detected condition.
Remote Control and Automation

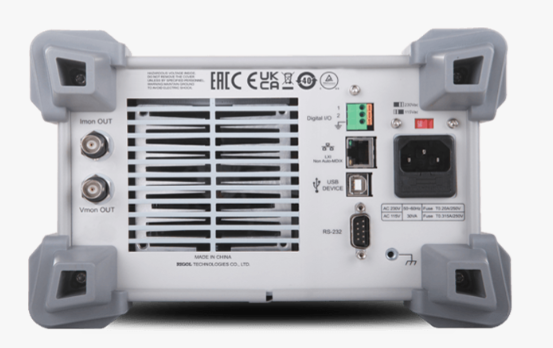

The series supports remote operation through multiple communication interfaces.
Available interfaces include:
- USB Host
- USB Device
- RS232
- LAN
- Optional USB-GPIB converter
- Digital input and output
Remote connectivity allows the DL3000 to be integrated into:
- Automated production lines
- Burn-in systems
- Battery test stations
- Power-supply validation benches
- Remote laboratory systems
- Custom test software
-
Applications:
The RIGOL DL3000 Series is suitable for:
- Switching-mode power-supply testing
- Regulated DC power-supply testing
- Server power-supply testing
- Battery discharge and capacity testing
- Battery charger validation
- Mobile-device charger testing
- DC-DC converter testing
- Automotive electronics testing
- New-energy vehicle electronics
- Fuel-cell testing
- Photovoltaic inverter testing
- Semiconductor power-device testing
- MOSFET and IGBT evaluation
- Power adapter testing
- Production-line testing
- Quality-assurance testing
- Research and development
- Educational power electronics laboratories
-
Why Buy from Revine Tech:
Revine Tech provides test and measurement equipment for power electronics, automotive electronics, battery testing, industrial validation and research applications.
Our technical team can help customers select the correct DL3000 model according to:
- Maximum test voltage
- Maximum load current
- Maximum continuous power
- Required dynamic frequency
- Required current slew rate
- Battery test requirements
- OCP and OPP test requirements
- Remote-control interfaces
- Automated test-system integration
- Rack-mounting requirements
- Calibration documentation
The final RIGOL DL3000 price depends on the selected model, installed interfaces, options, calibration requirements and accessories.
