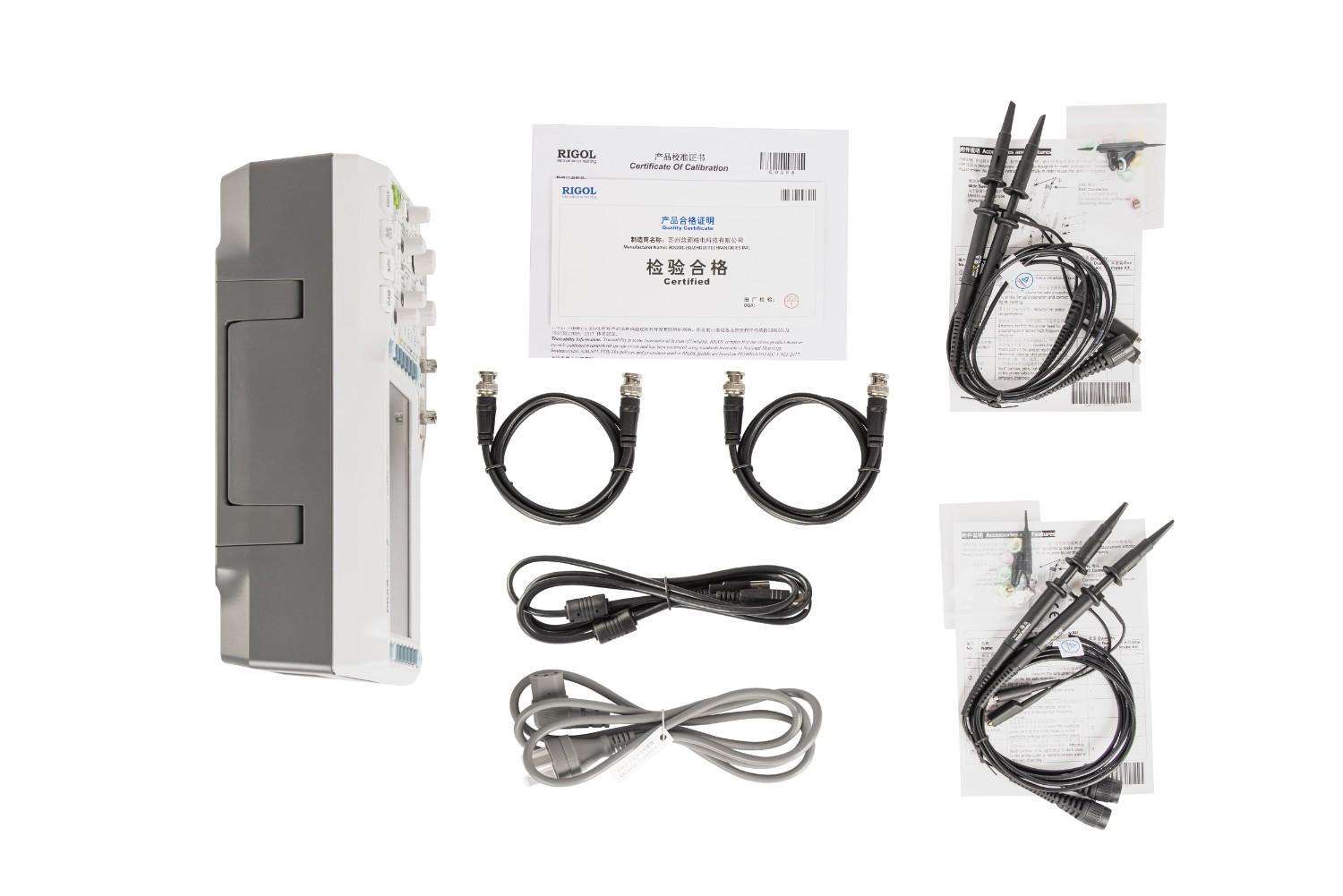

Rigol DS1074Z-S Plus

Rs. 90624.00

High quality 4 channel DSO with 70 MHz bandwidth + 2 channel waveform generator with 25 MHz bandwidth, 1 GSa/s and 24 Mpts memory depth. Plus Version with MSO logic analyser upgrade option! Get all options for free with the purchase of a new DS1000Z series oscilloscope! Options: SD-DS1000Z Serial Decoder, AT-DS1000Z Advanced Trigger, MEM-DS1000Z Memory , REC-DS1000Z Record-Module Now includes NABL Calibration Certificate. 3 years warranty.

  • Detail
  • Special Features
  • Specification

The Rigol DS1074Z-S-Plus is a very high quality four channel digital storage oscilloscope with built-in 25 MHz bandwidth 2CH arbitrary waveform generator. The scope features a real-time sample rate of up to 1 GSa/s and a bandwidth of 70 MHz.

The Rigol oscilloscopes are equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.

This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The DS1074Z-Plus has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quicky. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.

The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.

Model DS1054Z DS1074Z Plus DS1074Z-S Plus DS1104Z Plus DS1104Z-S Plus
Channels 4 4 4 4 4
Bandwidth 50 MHz 70 MHz 70 MHz 100 MHz 100 MHz
Sampling Rate 1 GSa/s 1 GSa/s 1 GSa/s 1 GSa/s 1 GSa/s
Memory Depth 12 Mpts /
24 Mpts (Option)		 12 Mpts /
24 Mpts (Option)		 12 Mpts /
24 Mpts (Option)		 12 Mpts /
24 Mpts (Option)		 12 Mpts /
24 Mpts (Option)
2 CH Waveform-Generator X X Standard X Standard





MSO Ready (option, not included-Logic Probe-RPL1116)

The plus models are MSO ready, and can be upgraded by the user with an MSO upgrade option at any time. This is a purchasable option and can be found in the accessories. If you plan to buy a new device with logic analyser already included please take a look at the Rigol MSO1000Z series instead.

Large Display for 4 Channels

It is possible to display all four channels on the large display with 17.8 cm (7″) diameter and a resolution of 800 × 480 pixel without any problems.

Deeper Memory

The Rigol DS1000Z oscilloscopes can store up to 12 million measurement points. You can zoom into a selected part of the captured waveforms to get more details and scroll within the measurement points. With the optional memory module MEM-DS1000Z even 24 million data points are available. The memory expansion module “MEM-DS1000Z” is available on this page under the “accessories”tab.

Fast Capturing

The high sampling rate (up to 1 GSa/s) of the Rigol DS1000Z Oscilloscopes and the large memory makes it possible to record up to 30,000 waveforms per second.

Realtime waveform record, replay, analysis (option)

With the optional recorder module DS1000Z-REC the recorded waveforms can be conveniently recorded, displayed and analyzed. The recorder module “DS1000Z-REC” is available on this page under the “accessories” tab.

Multi-Level Intensity Grading Display“Multi-Level Grading Intensity” display, extensive signal characteristics with a very large number of measurement values can also be displayed completely.

Extensive Trigger Options

The Rigol oscilloscopes offer extensive trigger options for a professional use. The special triggers Windows, Nth Edge, Delay, Timeout, Runt, RS232/UART, I²C und SPI are available as option as “AT-DS1000Z Advanced Trigger” module on this page under the “accessories” tab.

Serial bus decoding function (option)

With the optional “SA-DS1000Z Decoding Kit” serial data packages of different serial bus systems can be analyzed, decoded, and displayed directly as byte values. Supported protocols are: RS232/UART, I²C, and SPI. The serial decoding module “SA-DS1000Z” is available on this page under the “accessories” tab.

Advanced Math

The DS1000Z series oscilloscopes comes with a modern and advanced math system which lets it solve complicated signal calculations quite simply with predefined formulas.

Masked Pass/Fail-Tests
Pass/fail testing can be used for troubleshooting in various environments like communication networks.

Auto measurements with statistics
The oscilloscope measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).

Build-In 2 CH Waveform Generator (DS1000Z-S Version only)
The DS1000Z-S Versions of these devices offer a build-in 2 channel arbiträry waveform generator with 14 Bit resolution, 25 MHz bandwidth and 200 MSa/s sampling rate.

General Data Digital Oscilloscope Rigol DS1074Z-S-Plus
Display 17,8 cm (7″) WVGA–TFT LCD
Resolution 800 × 480 Pixel

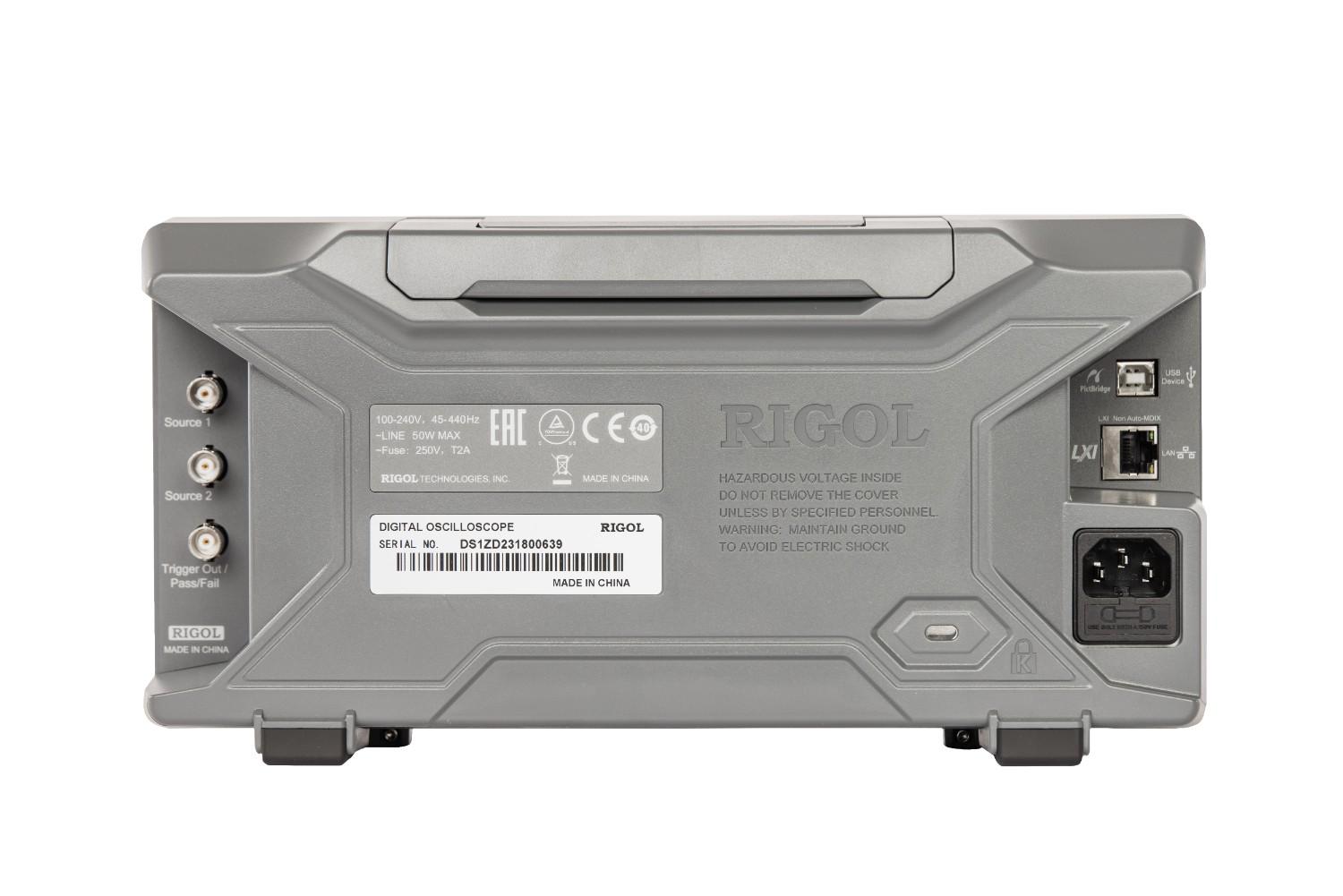

Interface USB-host for i.e. USB sticks



USB-Device for a PC connection or USB Pict-Bridge printer interface

LAN for network connectivity (LXI compilant)

GPIB (IEE-488, General Purpose Interface Bus)  USB-GPIB Module

Trigger- and Calibration output
Size (W × H × D) 313 mm × 160 mm × 122 mm
Weight 3.2 kg
Supported operation systems Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)
Oscilloscope Functions Digital Oscilloscope Rigol DS1074Z-S-Plus
Channels 4
Real-time sample rate 1 GSa/s realtime (1 Channel)



500 MSa/s realtime (2 Channels)

250 MSa/s realtime (4 Channels)
Bandwidth 70 MHz
Sampling Modes Normal, average, peak detect
Mathematics userdefined, FFT (Fast Fourier Transform)
FFT windows Rectangle, Hanning, Hamming, Blackman
Signal Bus Decoding RS232/UART (optional), I²C (optional), SPI (optional)
Signal Digital Oscilloscope Rigol DS1074Z-S-Plus
Input DC/AC Coupling, CAT I 300 Vrms, CAT II 100 Vrms
Real-time sample rate up to 1 GSa/s realtime
Time base 5 ns/div – 50 s/div
Memory max. 12M Mpts (1 Channel)



max. 24M Mpts. (1 Channel) with memory option MEM-DS1000Z

max. 6M Mpts. (2 Channels)

max. 12M Mpts. (2 Channels) with memory option MEM-DS1000Z

max. 3M Mpts. (3/4 Channels)

max. 6M Mpts. (3/4 Channels) with memory option MEM-DS1000Z
Vertical Digital Oscilloscope Rigol DS1074Z-S-Plus
Analog digital converter (A/D) 8 Bit
Sensitivity range (V/div) 1mV/div – 10 V/div
Offset range 1mV/div – 10 V/div
Trigger Digital Oscilloscope Rigol DS1074Z-S-Plus
Trigger  Channel 1/2/3/4, AC Line
Signal system and line/field frequency



(Video Trigger mode)

 PAL, NTSC, SECAM



480P, 576P HDTV standards
Trigger function Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, USB, FlexRay
Measurement Digital Oscilloscope Rigol DS1074Z-S-Plus
Cursor measurement Manual, Track and Auto Measure modes
Auto measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot,



Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width,

Positive, Duty Cycle, Negative Duty Cycle, Delay1-2 (rise), Delay1-2 (fall),

Phase1-2 (rise), Phase1-2 (fall)
Waveform-Generator Digital Oscilloscope Rigol DS1074Z-S-Plus
Channels 2
Sampling Rate 200 MSa/s
Vertikal Resolution 14 Bit
Max. Frequency 25 MHz
Amplitude 20 mVpp bis 5 Vpp (HIGH-Z)



10 mVpp bis 2,5 Vpp (50 Ω)
DC Offset ±2,5 V (HIGH-Z)



±1,25 V (50 Ω)
Standard Waveforms Sine, Square, Pulse, Triangle, Noise, DC
Arbiträry Waveforms Since, Exp.Rise, EXP.Fall, ECG, Gauss, Lorentz, Haversine
