Rigol M300 Series

Now includes NABL Calibration Certificate.

The RIGOL M300 Series is a modular data acquisition and switching system designed for multichannel measurements, product validation, automated production testing and sensor monitoring. Its five-slot mainframe supports eight plug-in module types, an optional 6½-digit DMM, scan speeds up to 60 channels per second and up to 320 switch channels. A 4.3-inch colour display and multiple communication interfaces simplify standalone and automated operation..

  • Detail
  • Special Features
  • Specification

The RIGOL M300 Series Data Acquisition and Switching System is designed for engineers, laboratories, production facilities and research teams that need to measure and monitor multiple signals through a single configurable platform.

Unlike an oscilloscope, the M300 is built specifically for multichannel data acquisition, switching, scanning and automated measurement. Its modular architecture allows users to combine a precision digital multimeter module with multiplexers, actuator channels, a switch matrix and multifunction input/output modules according to the test application.

The system is suitable for product performance testing during research and development, environmental monitoring, temperature logging, component validation, production-line testing and automated test equipment integration.

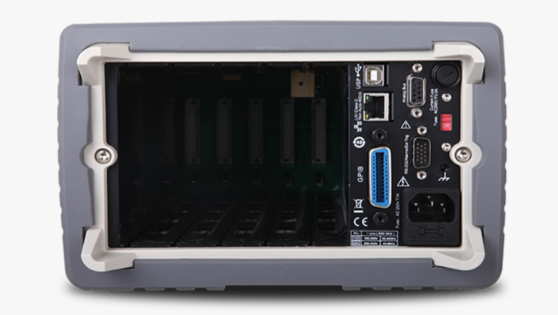

Modular Five-Slot Mainframe

The RIGOL M300 mainframe includes five plug-in module slots. These slots can accept different combinations of eight available module types.

Users can configure the system for:

  • Multichannel voltage measurements
  • Multichannel current measurements
  • Resistance testing
  • Temperature monitoring
  • Frequency and period measurements
  • Sensor data acquisition
  • Relay switching
  • Digital input and output control
  • Totalizer measurements
  • Analog signal output
  • Matrix switching

The modular design allows users to purchase only the measurement and switching functions required for the application. Modules can also be changed when testing requirements evolve.

The modules do not support hot plugging. The mainframe must be switched off before a module is inserted or removed.



Configurations Available

The RIGOL M300 Series is available in three primary configurations:

  • M300: Five-slot data acquisition and switching mainframe
  • M301: M300 mainframe with MC3065 6½-digit DMM module
  • M302: M300 mainframe with MC3065 DMM module and MC3120 20-channel multiplexer

The M300 base mainframe does not include a permanently built-in digital multimeter. Measurement capability is added through the MC3065 DMM module, an M301 or M302 bundle, or a compatible external digital multimeter.



6½-Digit Measurement Capability

The optional MC3065 digital multimeter module provides 6½-digit reading resolution for accurate multichannel measurements.

Supported measurement functions include:

  • DC voltage
  • AC voltage
  • DC current
  • AC current
  • Two-wire resistance
  • Four-wire resistance
  • Frequency
  • Period
  • Thermocouple temperature
  • Thermistor temperature
  • RTD temperature
  • User-defined sensor measurements

The DMM module can be installed in any mainframe slot. When it is used with compatible multiplexer modules, the system automatically routes each configured input channel to the measurement module during a scan.



Up to 320 Switch Channels

The M300 mainframe can support up to 320 switch channels when all five slots are populated with 64-channel MC3164 multiplexer modules.

When one slot is occupied by the MC3065 DMM module, the remaining four slots can support up to 256 directly measured channels using four MC3164 modules.

This distinction is important when selecting a configuration:

  • Up to 320 switch channels when all five slots are used for switching modules
  • Up to 256 measurement channels when one slot is reserved for the internal DMM module
  • Additional external DMM configurations may be created for specialised automated test systems

The selected channel capacity depends on the module combination and measurement method.



Maximum Scan Speed of 60 Channels per Second

The RIGOL M300 supports a maximum scan speed of up to 60 channels per second. This enables efficient monitoring of multiple test points in research, validation and production environments.

Actual scan performance can depend on:

  • Measurement function
  • Measurement range
  • Integration time
  • Auto-zero settings
  • Channel delay
  • Module type
  • Trigger configuration
  • Number of channels in the scan list

For applications requiring higher measurement accuracy or improved noise rejection, the scan rate may be reduced by using a longer integration time.



Standalone Data Acquisition

The M300 can perform data acquisition without being permanently connected to a computer.

The 4.3-inch colour display allows users to:

  • Create and edit scan lists
  • Configure individual measurement channels
  • Set scan intervals
  • Select trigger modes
  • Monitor channel values
  • View measurement curves
  • Check channel status
  • Review measurement statistics
  • Save and recall configurations
  • Examine alarm conditions

This standalone functionality is useful for laboratory benches, production stations and long-duration monitoring applications where a dedicated computer is not always required.

USB Data Logging



The system supports USB data logging and interval scanning. It can store up to 100,000 time-stamped readings for later review and analysis.

Recorded data can include:

  • Measurement values
  • Channel numbers
  • Measurement time
  • Scaling results
  • Alarm information
  • Statistical values

USB storage support helps users transfer acquired data to a computer for reporting, analysis and long-term record keeping.

Flexible Scan and Trigger Control

The M300 provides five trigger modes:

  • Automatic trigger
  • Manual trigger
  • External trigger
  • Absolute-time trigger
  • Alarm trigger

Automatic triggering supports configurable scan intervals. Users can configure a fixed number of scans or continuous scanning according to the monitoring requirement.

External triggering allows the M300 to synchronise with other equipment in an automated test setup. Alarm triggering can begin a scan when a selected channel meets a defined alarm condition.



Statistical Analysis and Alarm Monitoring

The M300 provides built-in statistical functions to help users evaluate acquired data directly on the instrument.

Available statistics include:

  • Average
  • Maximum
  • Minimum
  • Standard deviation

Upper and lower limits can be configured for individual channels. The system can display alarm conditions when a measurement exceeds the configured limits.

These functions are useful for:

  • Production pass/fail testing
  • Burn-in monitoring
  • Environmental testing
  • Component comparison
  • Process monitoring
  • Long-duration stability studies
  •

Remote Control and Automated Test Integration

The standard M300 configuration provides multiple communication interfaces:

  • USB Host
  • USB Device
  • LAN
  • GPIB
  • RS232

The LAN interface supports LXI Core 2011 Device functionality. The system also supports standard SCPI commands for remote programming and integration with automated test software.

These interfaces allow users to:

  • Configure the mainframe remotely
  • Start and stop scans
  • Retrieve measurement data
  • Control switching modules
  • Monitor alarms
  • Integrate the M300 into production systems
  • Build custom automated measurement applications
  •

UltraAcquire Control and Analysis Software

RIGOL UltraAcquire software supports instrument configuration, data acquisition, analysis and reporting from a computer.

The software can control up to five M300 mainframes in a larger test system.

UltraAcquire supports:

  • System and channel configuration
  • Automated scanning
  • Real-time data recording
  • Trend plotting
  • Limit monitoring
  • Alarm configuration
  • Trigger configuration
  • Multiple data-display formats
  • Report generation
  • Measurement data export

Connecting multiple mainframes allows engineers to build larger distributed acquisition systems for complex production, reliability and environmental tests.



Applications:

The RIGOL M300 data acquisition system is suitable for:

  • Product design verification
  • Research and development testing
  • Production-line automated testing
  • Electronic component validation
  • Multichannel temperature monitoring
  • Environmental chamber testing
  • Battery testing
  • Power-supply testing
  • Sensor characterisation
  • Burn-in and reliability testing
  • Manufacturing quality control
  • Data logging
  • Process monitoring
  • Relay and actuator control
  • Educational and engineering laboratories
  • Automated test equipment integration
  • Preventive maintenance testing
  •

Why Buy from Revine Tech:

Revine Tech supplies professional test and measurement equipment for industrial, engineering, laboratory and research applications.

Our technical team can help customers choose the correct RIGOL M300 configuration based on:

  • Required number of measurement channels
  • Signal types to be measured
  • Voltage and current ranges
  • Two-wire or four-wire resistance requirements
  • Temperature sensor types
  • Required scan speed
  • Switching requirements
  • Relay and actuator control
  • Digital input and output requirements
  • Matrix switching requirements
  • Data logging duration
  • PC control and software integration
  • Rack-mounting requirements

The final RIGOL M300 price depends on the selected mainframe configuration, DMM module, multiplexer modules, terminal blocks, software and accessories.

Five-Slot Modular Architecture

The M300 provides five slots for configurable measurement and switching modules.

This modular structure offers several advantages:

  • Custom configuration for each application
  • Easy system expansion
  • Flexible channel density
  • Combined measurement and switching
  • Reduced need for multiple standalone instruments
  • Lower cost per measurement channel
  • Simplified automated test-system wiring
  •

Eight Plug-In Module Types

The M300 supports eight module types:

  1. MC3065 6½-digit DMM module
  2. MC3120 20-channel multiplexer
  3. MC3132 32-channel multiplexer
  4. MC3164 64-channel single-ended multiplexer
  5. MC3324 mixed voltage and current multiplexer
  6. MC3416 16-channel actuator
  7. MC3534 multifunction module
  8. MC3648 4 × 8 matrix switch
  9.

The module range supports precision measurement, signal routing, relay control, digital I/O and complex switching applications.



MC3065 6½-Digit DMM Module

The MC3065 provides the primary precision measurement capability for the M300 platform.

Key functions include:

  • DC and AC voltage
  • DC and AC current
  • Two-wire resistance
  • Four-wire resistance
  • Frequency
  • Period
  • Thermocouple temperature
  • Thermistor temperature
  • RTD temperature
  • Arbitrary sensor measurement
  •

The maximum signal connected to the DMM through the analog bus must not exceed 300 V DC or 300 V RMS.



MC3120 20-Channel Multiplexer

The MC3120 provides 20 fully isolated two-wire channels arranged in two banks of ten channels.

Key capabilities include:

  • 20 two-wire measurement channels
  • Up to ten four-wire resistance channels
  • Fully isolated HI and LO switching
  • Break-before-make scanning
  • Compatibility with the MC3065 DMM module

This module is suitable for general voltage, resistance, frequency and temperature measurements.



MC3132 32-Channel Multiplexer

The MC3132 provides 32 fully isolated two-wire channels divided into two banks of 16.

Key capabilities include:

  • 32 two-wire channels
  • Up to 16 four-wire resistance channels
  • Fully isolated HI and LO switching
  • Automatic channel pairing for four-wire measurements
  • Break-before-make operation
  • Compatibility with the MC3065 DMM module
  •

MC3164 64-Channel Single-Ended Multiplexer

The MC3164 provides the highest channel density in the M300 module range.

Key capabilities include:

  • 64 single-ended channels
  • Two banks of 32 channels
  • High-density voltage and sensor scanning
  • Break-before-make operation
  • Compatibility with the MC3065 DMM module

The MC3164 does not support four-wire resistance measurement.

Using five MC3164 modules provides up to 320 switch channels. Using one MC3065 and four MC3164 modules provides up to 256 directly measured channels.



MC3324 Mixed Multiplexer

The MC3324 combines voltage and current measurement channels in one module.

It includes:

  • 20 voltage channels
  • Four current channels
  • Two banks of ten voltage channels
  • Support for two-wire measurements
  • Support for paired four-wire resistance measurements
  • DC and AC current measurement through dedicated current channels
  • Break-before-make switching

This module is useful when voltage, resistance, temperature and current must be measured within the same system.



MC3416 16-Channel Actuator

The MC3416 provides 16 actuator channels for switching external devices or connecting signals to a device under test.

Each channel supports:

  • Normally open operation
  • Normally closed operation
  • Independent relay control
  • Automated device activation
  • External equipment switching

It can be used to control relays, indicators, loads, fixtures and other devices in an automated test setup.



MC3534 Multifunction Module

The MC3534 combines digital input/output, totalizer input and analog output functions.

It provides:

  • Four 8-bit digital input/output ports
  • Four totalizer inputs
  • Two totalizer channels up to 10 MHz
  • Two totalizer channels up to 100 kHz
  • Four analog output channels
  • Calibrated analog output up to ±12 V

This module can be used for digital status monitoring, pulse counting, equipment control and analog stimulus generation.



MC3648 4 × 8 Matrix Switch

The MC3648 provides a 4 × 8 matrix with 32 two-wire crosspoints.

It supports:

  • Flexible connection between multiple inputs and outputs
  • Simultaneous connection of multiple crosspoints
  • Expansion into larger matrix configurations
  • Automated signal routing
  • Device-under-test switching
  • Multipoint functional testing

Multiple matrix modules can be combined, provided the total number of crosspoints does not exceed the supported system limit.



Up to 60 Channels per Second

The maximum scan speed of 60 channels per second helps reduce test time in multichannel production and monitoring applications.

This is useful for:

  • High-volume production testing
  • Rapid sensor scanning
  • Component comparison
  • Environmental monitoring
  • Multi-point voltage measurements
  •

4.3-Inch Colour Display

The 4.3-inch high-resolution colour LCD displays:

  • Scan configuration
  • Channel measurements
  • System status
  • Measurement parameters
  • Trend curves
  • Alarm information
  • Operating prompts

The system can be configured and operated directly from the front panel without a computer.



Up to 100,000 Time-Stamped Readings

Internal interval-scanning functions can store up to 100,000 time-stamped readings.

This supports:

  • Long-duration data logging
  • Environmental tests
  • Thermal profiling
  • Stability monitoring
  • Burn-in testing
  • Historical data review
  •

Five Trigger Modes

The M300 provides:

  • Automatic trigger
  • Manual trigger
  • External trigger
  • Absolute-time trigger
  • Alarm trigger

These trigger options support both standalone measurements and synchronised automated test procedures.



Multiple Communication Interfaces

Standard interfaces include:

  • USB Host
  • USB Device
  • 10/100 Mbit LAN
  • GPIB
  • RS232
  • LXI Core 2011 Device support

No separate communication module is required for the standard interfaces.



SCPI Remote Programming

SCPI command support allows the M300 to be controlled from:

  • Custom test applications
  • Production test software
  • Laboratory automation platforms
  • Remote monitoring systems
  • Computer-based data acquisition programs
  •

UltraAcquire Multi-Mainframe Control

UltraAcquire can control up to five M300 mainframes. This enables the construction of larger systems with additional channels and more complex switching arrangements.

The software supports:

  • Remote configuration
  • Data plotting
  • Limit and alarm monitoring
  • Trigger control
  • Data export
  • Report creation
  •

Standalone and PC-Controlled Operation

The M300 can be used:

  • Independently from the front panel
  • With USB storage
  • Through a network connection
  • Under SCPI program control
  • With UltraAcquire software
  • As part of an automated production system

Mainframe Specifications

Specification Details
Product Name RIGOL M300 Series Data Acquisition and Switching System
Product Type Modular data acquisition and switch system
Main Configurations M300, M301 and M302
Number of Slots Five
Supported Module Types Eight
DMM Resolution 6½ digits with MC3065 module
Maximum Scan Speed Up to 60 channels per second
Maximum Switch Channels Up to 320 per mainframe
Maximum Measurement Channels with Internal DMM Up to 256 using one MC3065 and four MC3164 modules
Display 4.3-inch high-resolution colour LCD
Standalone Operation Supported
Internal Data Storage Up to 100,000 time-stamped readings
Statistics Average, maximum, minimum and standard deviation
Trigger Modes Automatic, manual, external, absolute time and alarm
Communication Interfaces USB Host, USB Device, GPIB, LAN and RS232
LAN Speed 10/100 Mbit
LXI Compatibility LXI Core 2011 Device, Version 1.4
Remote Programming Standard SCPI commands
PC Software UltraAcquire
Multi-Mainframe Software Control Up to five mainframes
USB Data Logging Supported
External DMM Support Supported



Available Configurations

Model Included Configuration
M300 Five-slot data acquisition and switching mainframe
M301 M300 mainframe with MC3065 6½-digit DMM module
M302 M300 mainframe with MC3065 DMM module and MC3120 20-channel multiplexer



Measurement Functions with MC3065

Measurement Category Supported Functions
Voltage DC voltage and AC voltage
Current DC current and AC current
Resistance Two-wire and four-wire resistance
Frequency Measurements Frequency and period
Temperature Thermocouple, thermistor and RTD
Sensor Measurements User-defined arbitrary sensor measurements
Reading Resolution 6½ digits
Maximum Analog-Bus Input 300 V DC or 300 V RMS



Plug-In Module Specifications

Module Module Type Channel Configuration Primary Function
MC3065 DMM module 6½-digit Precision electrical and temperature measurements
MC3120 Multiplexer 20 two-wire channels Voltage, resistance, temperature, frequency and sensor scanning
MC3132 Multiplexer 32 two-wire channels Higher-density isolated measurement scanning
MC3164 Single-ended multiplexer 64 channels Maximum channel-density scanning
MC3324 Mixed multiplexer 20 voltage and four current channels Combined voltage and current acquisition
MC3416 Actuator 16 channels Relay and external-device control
MC3534 Multifunction module Digital I/O, totalizer and analog outputs Digital control, counting and signal output
MC3648 Matrix switch 4 × 8, 32 crosspoints Flexible multipoint signal routing



Channel Capacity

Configuration Maximum Channel Capacity
Five MC3164 modules 320 switch channels
One MC3065 and four MC3164 modules 256 measured channels
One MC3065 and four MC3132 modules 128 two-wire measurement channels
One MC3065 and four MC3120 modules 80 two-wire measurement channels
M302 standard bundle 20 two-wire measurement channels



MC3534 Multifunction Module

Function Specification
Digital I/O Four 8-bit ports
Totalizer Inputs Four
High-Speed Totalizer Channels Two channels up to 10 MHz
Standard Totalizer Channels Two channels up to 100 kHz
Totalizer Sensitivity 1 V peak-to-peak
Analog Outputs Four
Analog Output Range Calibrated output up to ±12 V



General Specifications

Specification Details
Display Size 4.3 inches
Power Supply, Low Range AC 100 V to 120 V, 45 Hz to 440 Hz
Power Supply, High Range AC 200 V to 240 V, 45 Hz to 66 Hz
Maximum Power Consumption 25 VA
Operating Temperature 0°C to 50°C at full specified accuracy
Operating Humidity Up to 80% RH at 40°C, non-condensing
Storage Temperature -40°C to 70°C
Maximum Operating Altitude 2,000 metres
Measurement Category CAT I, 300 V
Pollution Degree 2
Dimensions 159.0 × 239.0 × 373.4 mm
Approximate Weight 5.7 kg without packaging
Warm-Up Time 90 minutes
Safety Standards IEC 61010-1, EN 61010-1, UL 61010-1 and CAN/CSA-C22.2 No. 61010-1
EMC Standard EN 61326-1



Standard Accessories

Standard accessories can include:

  • Region-compatible power cord
  • USB cable
  • Mixed-interface separator cable
  • UltraAcquire control and analysis software
  • Spare mainframe and DMM-module fuses

Package contents should be confirmed for the selected M300, M301 or M302 configuration.



Optional Modules and Accessories

Optional items include:

  • MC3065 DMM module
  • MC3120 20-channel multiplexer
  • MC3132 32-channel multiplexer
  • MC3164 64-channel multiplexer
  • MC3324 mixed multiplexer
  • MC3416 actuator module
  • MC3534 multifunction module
  • MC3648 matrix switch
  • Module-specific terminal blocks
  • GPIB adapter
  • RS232 cable
  • External analog-bus port
  • SMB-to-BNC cable
  • Single-instrument rack-mount kit
  • Dual-instrument rack-mount kit
  • UltraAcquire Pro software

Terminal blocks must be selected to match the installed measurement or switching module.

Final channel count, scan speed, measurement accuracy, included modules, terminal blocks and software should be confirmed for the selected configuration before ordering.
