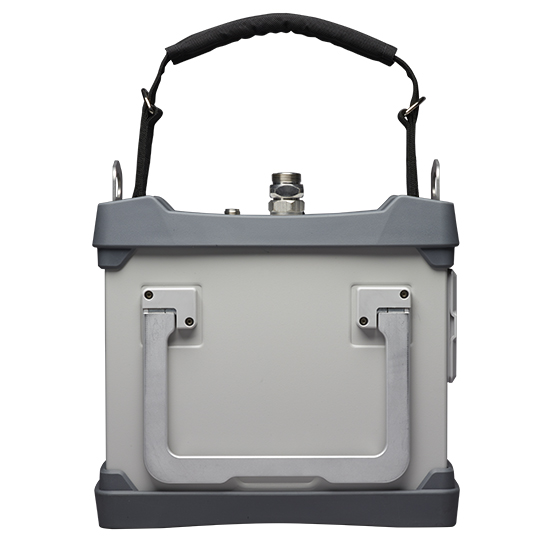

Image 3
ANRITSU | Mobile Wireless Communications Measuring Instruments

PIM Master™ MW82119B

The PIM Master™ MW82119B is a battery-operated, 40W portable Passive Intermodulation (PIM) analyzer with an optional Site Master™ Cable & Antenna Analyzer feature. Designed for rugged field environments, it features a large outdoor-viewable display, intuitive user interface, and is ideal for top-of-the-tower PIM and line sweep testing, enabling superior RF performance in LTE Remote Radio Head (RRH) installations..

  • Detail
  • Special Features
  • Specification

The PIM Master™ MW82119B from Anritsu is an advanced, field-ready Passive Intermodulation analyzer designed for macro site, DAS, and RRH installations. Engineered with rugged portability, it combines high-output PIM measurement (up to 40W) with the powerful Site Master™ cable and antenna analysis, enabling comprehensive RF performance validation with a single device.

With Distance-to-PIM functionality, the MW82119B helps technicians accurately locate PIM sources within the cable and antenna system, reducing downtime and enhancing site quality. The optional Site Master module enhances the toolset with Return Loss, VSWR, Cable Loss, and Distance-to-Fault diagnostics — crucial for ensuring optimal RF signal transmission and low reflection losses.

This unit is ideal for on-site testing, especially in outdoor conditions. Its large sunlight-readable display, durable chassis, and long battery life make it suitable for extended field operations. It supports antenna alignment validation, remote site RF troubleshooting, and component-level PIM analysis, making it a go-to tool for network operators and infrastructure providers aiming to reduce dropped calls and optimize LTE/5G coverage.

The PIM Master™ MW82119B from Anritsu is an advanced, field-ready Passive Intermodulation analyzer designed for macro site, DAS, and RRH installations. Engineered with rugged portability, it combines high-output PIM measurement (up to 40W) with the powerful Site Master™ cable and antenna analysis, enabling comprehensive RF performance validation with a single device.

With Distance-to-PIM functionality, the MW82119B helps technicians accurately locate PIM sources within the cable and antenna system, reducing downtime and enhancing site quality. The optional Site Master module enhances the toolset with Return Loss, VSWR, Cable Loss, and Distance-to-Fault diagnostics — crucial for ensuring optimal RF signal transmission and low reflection losses.

This unit is ideal for on-site testing, especially in outdoor conditions. Its large sunlight-readable display, durable chassis, and long battery life make it suitable for extended field operations. It supports antenna alignment validation, remote site RF troubleshooting, and component-level PIM analysis, making it a go-to tool for network operators and infrastructure providers aiming to reduce dropped calls and optimize LTE/5G coverage.

  1. All-in-One Testing Tool: Combines PIM analysis and Site Master line sweep functions.

  2. Battery-Operated Portability: Fully portable and optimized for field use.

  3. 40W High Power PIM Testing: Ensures high-sensitivity detection in real-world environments.

  4. Site Master Capability (Optional):

    • Return Loss, VSWR, Distance-to-Fault (DTF), Cable Loss.

  5. Distance-to-PIM (DTP) Measurement: Locates passive intermodulation sources in the system.

  6. Outdoor-Viewable Display: High-brightness screen for daylight visibility.

  7. Rugged Field Design: Built to withstand harsh conditions at cell sites and rooftops.

  8. Smart Aligner App Compatibility: Integrates with Multiwave tools for site close-out reports.

  9. Fast, Intuitive UI: Streamlined operation ideal for field technicians.

  10. Ideal for DAS, RRH, and Macro Site Testing: Covers multiple deployment scenarios.

Parameter Details
Output Power 40 Watts (nominal)
Measurement Capabilities PIM, Distance-to-PIM, Return Loss, VSWR, Cable Loss, Distance-to-Fault
Display Outdoor viewable, high-brightness display
Power Supply Rechargeable battery operated
Integrated Tools Optional Site Master line sweep capability
Supported Testing Areas DAS, Macro Sites, RRH, Antennas, RF Components
Distance-to-PIM Yes
Smart Aligner Compatibility Yes (Android App for site closeout reports)
Portability Field-optimized rugged design
Applications RF, DAS, LTE, PIM site certification, Antenna alignment verification
