Fluke | Power Quality Analyzer

Fluke Norma 5000 Power Analyzers

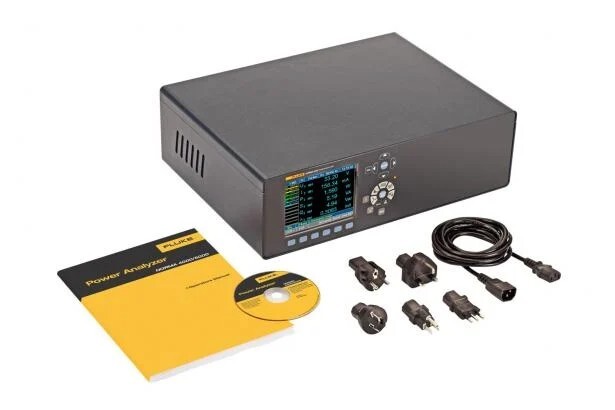

The Fluke Norma 5000 is a high-precision six-phase power analyzer designed for testing and development of electrical components such as motors, inverters, lighting systems, power supplies, transformers, and automotive components. With its compact design and advanced features, it provides accurate measurements of voltage, current, and power harmonics up to the 40th harmonic, making it ideal for complex power quality assessments..

  • Detail
  • Special Features
  • Specification

The Fluke Norma 5000 is engineered to provide precise and reliable power measurements in various applications. Its modular design allows users to configure the analyzer according to their specific needs, whether it's for single-phase or six-phase systems. The high bandwidth and sampling rates enable detailed analysis of electrical signals, making it suitable for complex testing scenarios. The inclusion of FFT analysis and digital oscilloscope mode provides in-depth insights into signal characteristics, while the recorder function facilitates continuous monitoring over time. With the Fluke NormaView PC software, users can easily download data, perform detailed analyses, and generate comprehensive reports.

  • Six-Phase Measurement: Supports up to six power phases, suitable for complex systems.

  • High Bandwidth: Offers bandwidth from DC to 3 MHz or DC to 10 MHz, depending on the input module.

  • Sampling Rate: Sampling rates of 341 kHz or 1 MHz, depending on the input module.

  • FFT Analysis: Performs Fast Fourier Transformation (FFT) up to the 40th harmonic.

  • Digital Oscilloscope Mode: Simultaneous display of up to three measured values on sample level.

  • Recorder Function: Records measured values for later analysis.

  • Vector Diagram Display: Visual representation of phase relationships.

  • Fluke NormaView PC Software: For data download, analysis, and report writing.

  • Modular Power Phases: Allows customization with up to six power phases.

  • Galvanically Isolated Inputs: Prevents short circuits in all applications.

Specification Details
Number of Phases 3, 4, or 6
Voltage Input Range 0.3 V to 1000 V
Current Input Range 0.03 mA to 20 A (depending on input module)
Bandwidth DC to 3 MHz or DC to 10 MHz (depending on input module)
Sampling Rate 341 kHz or 1 MHz (depending on input module)
Basic Accuracy 0.2%, 0.1%, or 0.03% (depending on input module)
FFT Analysis Up to the 40th harmonic
Display 5.7" color, 320 x 240 pixels
Memory 4 MB for configurations, 0.5 MB for settings
Interfaces RS232, USB (standard); IEEE 488, Ethernet (optional)
Process Interface PI1 (optional)
Software Fluke NormaView PC software
Dimensions (H x W x D) 15 cm x 44.7 cm x 31.5 cm
Weight Approximately 7 kg (15 lb)
