Fluke | Power Quality Analyzer

Fluke Norma 6000 Series Portable Power Analyzers

Now includes NABL Calibration Certificate.

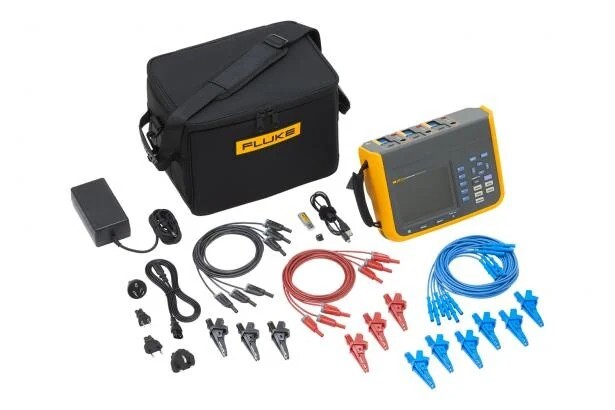

The Fluke Norma 6000 Series comprises portable, battery-powered precision power analyzers designed for high-accuracy measurements in both laboratory and field environments. With models offering 3 or 4 measurement channels, these analyzers can simultaneously measure three-phase and DC power, making them ideal for applications such as inverter efficiency testing, motor diagnostics, and power quality assessments..

  • Detail
  • Special Features
  • Specification

The Fluke Norma 6000 Series is engineered to provide accurate and reliable power measurements in diverse applications. Its portable design eliminates the need for bulky equipment, enabling measurements directly at the load in real-world conditions. With high measurement accuracy and wide bandwidth, these analyzers can capture detailed data, including harmonics and mechanical parameters, to assess system performance comprehensively. The inclusion of advanced features like dual analyzer synchronization and extensive data storage makes the Fluke Norma 6000 Series a versatile tool for professionals in the field.

  • High Measurement Accuracy: Offers 0.1% measurement accuracy for precise data collection.

  • Wide Bandwidth: Features a 500 kHz bandwidth to capture a broad range of frequencies.

  • Portable Design: Lightweight and compact, weighing only 3.5 kg, suitable for on-site measurements.

  • Extended Battery Life: Operates for up to 10 hours on a single charge, facilitating prolonged field use.

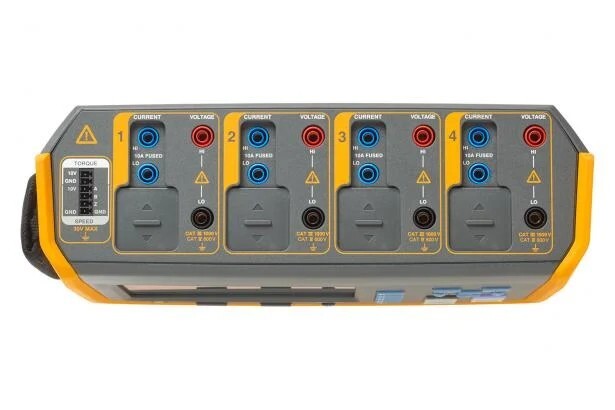

  • Versatile Measurement Channels: Available in 3-channel and 4-channel configurations, with the 4-channel model capable of measuring both three-phase and DC power simultaneously.

  • Mechanical Parameter Measurement: The 6003+ and 6004+ models include inputs for measuring mechanical parameters such as speed and torque, allowing for comprehensive analysis of electrical to mechanical efficiency.

  • Advanced Harmonics Analysis: Supports harmonic measurements up to the 100th harmonic, essential for detailed power quality analysis.

  • Data Storage and Connectivity: Equipped with 32GB of onboard storage and USB/RS485 interfaces for data transfer and remote control.

  • Dual Analyzer Synchronization: Allows combining two analyzers to extend measurement capabilities to 6 or 8 channels for complex systems.

  • Robust Safety Standards: Complies with IEC 61010-1: Pollution Degree 2, IEC 61010-2-030: CAT IV 600V, CAT III 1000V, ensuring safe operation in various environments.

Specification Details
Measurement Channels 3 or 4
Voltage Input Range 10 V, 100 V, 1000 V
Current Input Range 0.1 A, 1 A, 10 A
Bandwidth 500 kHz
Sample Rate 200 ks/s
Measurement Accuracy 0.1%
Harmonics Measurement Up to 100th harmonic
Battery Life Up to 10 hours
Weight 3.5 kg
Dimensions (H x W x D) 298 mm x 215 mm x 96 mm
Display 5.7" TFT LCD, 640 x 480
Storage Capacity 32 GB
Communication Interfaces USB, RS485
Safety Standards IEC 61010-1: Pollution Degree 2, IEC 61010-2-030: CAT IV 600V, CAT III 1000V
