Fluke | Insulation Testers

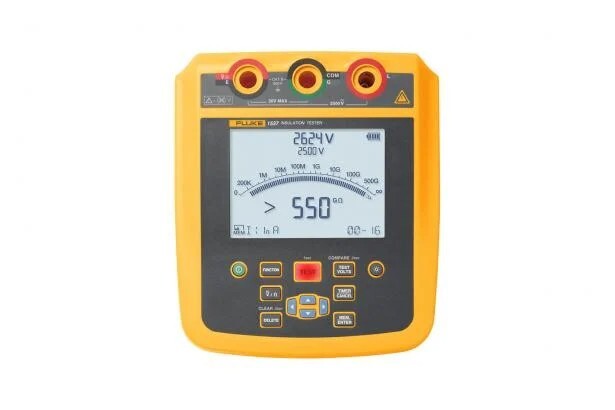

Fluke 1535 and 1537 Insulation Resistance Tester and Megohmmeters

Precision You Can Trust
NABL-Accreditied Calibration | Available on Request

The Fluke 1535 Insulation Resistance Tester is designed to perform high-voltage insulation resistance testing with selectable test voltages from 250 V to 2500 V. Ideal for industrial maintenance, it offers reliable, accurate readings up to 500 GΩ and provides a CAT IV 600 V safety rating..

  • Detail
  • Special Features
  • Specification

The Fluke 1535 is built for insulation resistance testing in various industrial applications, from troubleshooting electrical installations to preventive maintenance. Its long battery life allows technicians to carry out numerous tests in the field, and the wide test voltage range supports testing a variety of insulation types. The Fluke 1535 is user-friendly, with an intuitive interface designed to simplify insulation resistance testing and provide accurate results.

  • Test Voltage Range: Selectable from 250 V to 2500 V.

  • Insulation Resistance Measurement: Up to 500 GΩ.

  • Short Circuit Current: >2 mA.

  • Safety Rating: CAT IV 600 V for use in industrial environments.

  • Battery Life: Can perform over 1,300 tests at 2,500 V on a single charge.

  • Compact Design: Rugged and portable for field use.

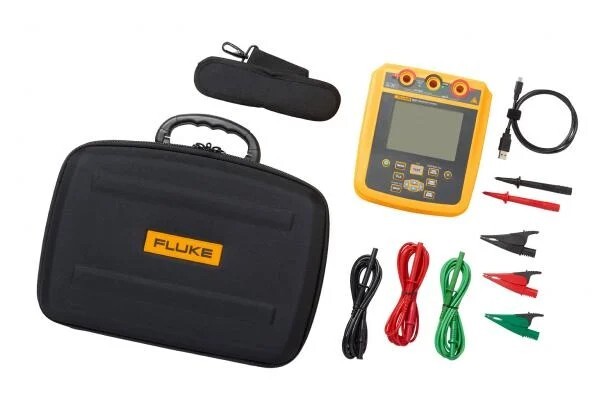

  • Accessories Included: Test leads with alligator clips (red, black, green), probe (red, black), and a soft carrying case.

  • Test Voltage Range: 250 V to 2500 V

  • Insulation Resistance: Up to 500 GΩ

  • Short Circuit Current: >2 mA

  • Safety Rating: CAT IV 600 V

  • Battery Life: 1,300+ tests at 2,500 V

  • Dimensions: 9.1 x 4.5 x 2.5 in (231 x 114 x 64 mm)

  • Weight: 2.2 lbs (1 kg)
