Rigol DM3058 Digital Multimeter

Precision You Can Trust
NABL-Accreditied Calibration | Available on Request
Rs. 90801.00

5ÂŊ digit true RMS precision table multimeter for measuring voltages, currents, resistances, capacitances, and frequencies. Now includes NABL Calibration Certificate. 3 years warranty.

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

đŸ”ĸ Max Reading & Speed
240,000 counts (5½ digits) → finer steps → tighter accuracy.
120 Sa/s sampling → rapid captures → trends and glitches appear fast.

🗄ī¸ Memory For Monitoring
10 groups × 2000 readings (volatile) → log long runs → review without re-testing.

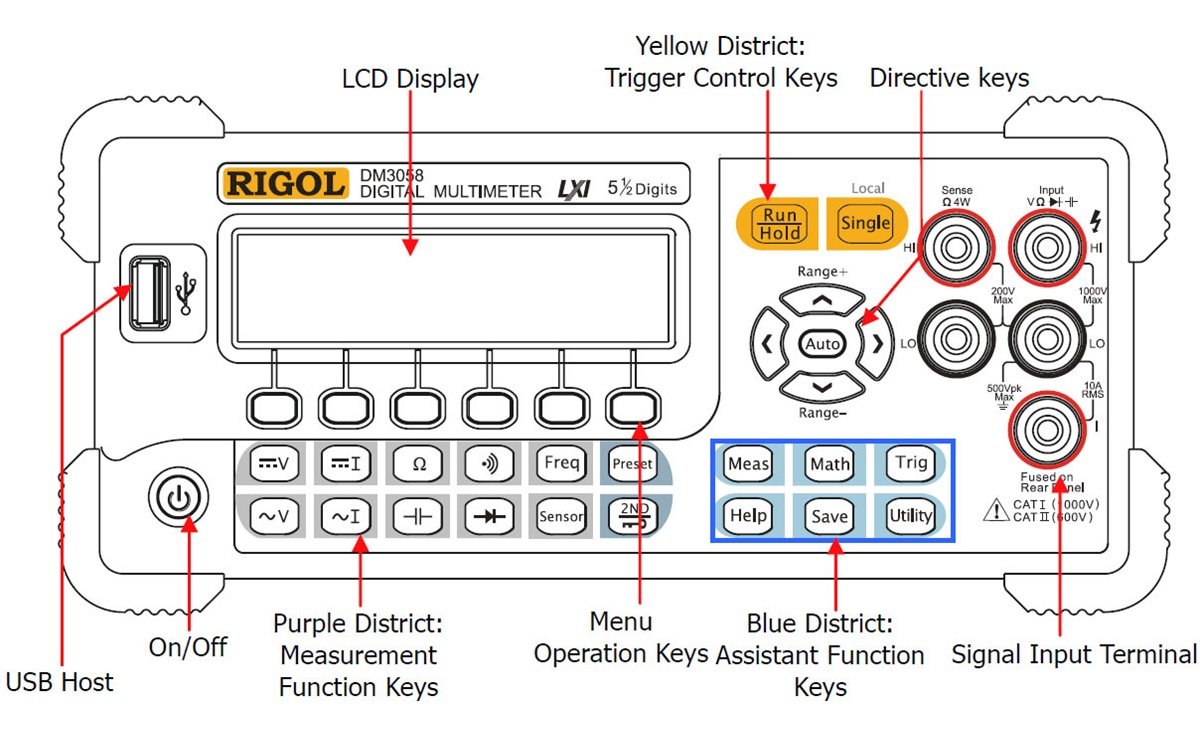

đŸ–Ĩī¸ Display & Readability
256×64 LCD → clear digits → quick checks at a glance.
Max display: 5½ digits → small changes stay visible.

📚 Measurement Functions (Range → Use)
DCV: 200 mV–1000 V → low rails to mains-level checks.
ACV: 200 mV–750 V → true line work and converters.
DCA: 200 µA–10 A → sleep currents to heavy loads.
ACA: 200 µA–10 A → motors, supplies, and chargers.
Resistance: 200 Ω–10 MΩ → shorts to high-value nets.
Capacitance: 2 nF–100 µF → filters and timing parts.
Frequency: 20 Hz–1 MHz → power lines to switching clocks.

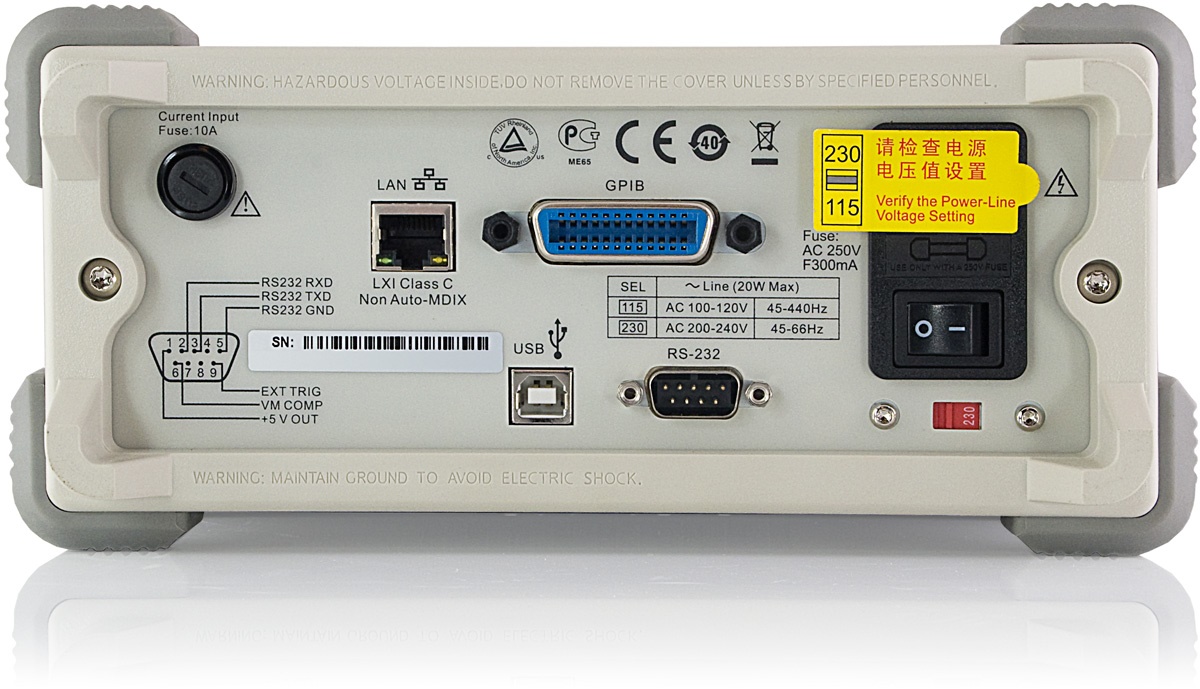

🔌 Connectivity (Plug → Automate)
RS-232, USB Device, USB Host, 10/100 LAN, GPIB, Ext Trigger → drop into any rig → SCPI control, logging, sync.

⚡ Power & Safety
230 V/50 Hz or 110 V/60 Hz → global mains ready.
CAT II / 600 V → safer work on mains-adjacent circuits.

đŸ“Ļ Size & Weight
290.5 × 231.6 × 107.0 mm (11.44″ × 9.12″ × 4.21″) → compact bench fit.
2.5 kg (5.5 lb) → easy to move, stable on rack.

🛡ī¸ Warranty
3 years → long coverage → lower total cost of ownership.

đŸŽ¯ High Accuracy
5½-digit resolution + DCV accuracy to 0.015% → tight numbers → trust every reading.

📚 Wide Measurement Range
DCV, DCI, ACV, ACI, resistance, capacitance, frequency → one meter → most jobs covered.

⚡ Fast Sampling Rate
120 Sa/s → quick captures → trends and glitches appear sooner.

🗄ī¸ Long-Term Monitoring
Up to 10 groups × 2000 readings stored → walk away → come back to full logs.

🌊 True RMS (TRMS)
Real AC math → distorted waves still read right → fewer surprises.

🔌 Comprehensive Connectivity
RS-232, USB Device/Host, LAN, GPIB, Ext Trigger → plug into any rig → automate without pain.

đŸ–Ĩī¸ Ease of Use
256×64 LCD → clear digits at a glance.
Auto power-off + data hold → save energy, freeze results when needed.

🛡ī¸ Built-In Safety
CAT II / 600 V → safer work on mains-adjacent circuits → confidence at the bench.

Feature Specification
Max Reading 240,000 counts (5½ digits)
Sampling Rate 120 Sa/s
Memory Depth (volatile) 10 groups of 2000 readings
Display 256×64 pixels LCD
Measurement Functions DCV, DCI, ACV, ACI, resistance, capacitance, frequency
Interfaces RS-232, USB Device, USB Host, LAN, GPIB, External Trigger
Max. Voltage Measurement 1000 V (DCV)
Max. Current Measurement 10 A (DCI, ACI)
Resistance Measurement 200 Ω to 10 MΩ
Capacitance Measurement 2 nF to 100 µF
Frequency Measurement 20 Hz to 1 MHz
Accuracy (DCV) 0.015%
Safety CAT II/600V
Weight 2.5 kg (5.5 lbs)
Dimensions 290.5 mm × 231.6 mm × 107.0 mm (11.44″ × 9.12″ × 4.21″)
Warranty 3 years
