Rigol DP821

Rs. 78411.00

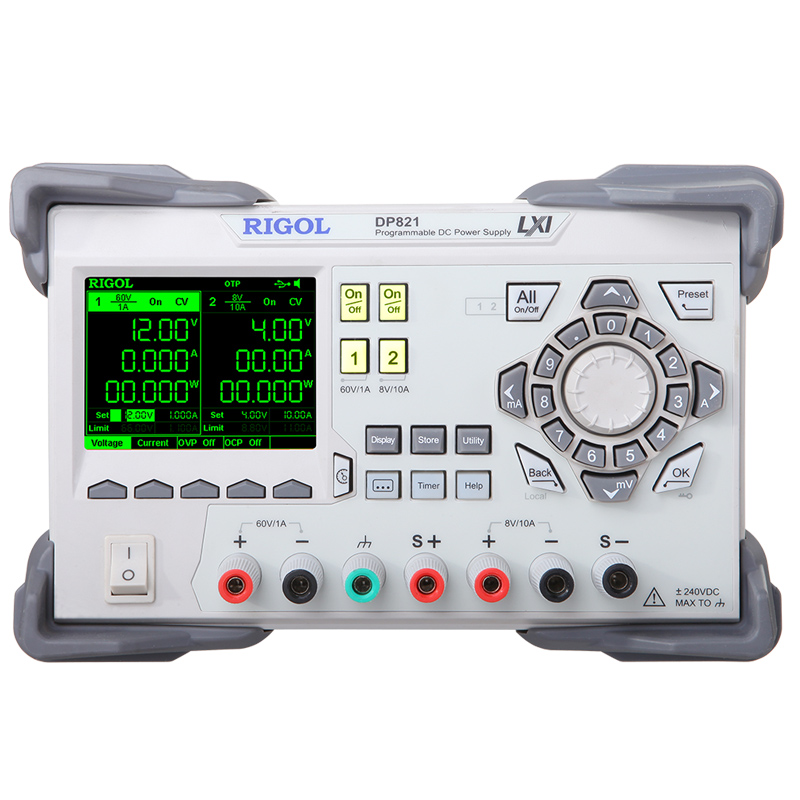

The Rigol DP821 is a high-quality programmable laboratory power supply with two outputs (60V/1A and 8V/10A) and a maximum power output of 140W. Featuring a 3.5" monochrome TFT display, this power supply offers high-precision voltage and current control, overvoltage protection, and programmable timer control. It also includes NABL Calibration Certificate and comes with a 3-year warranty..

  • Detail
  • Special Features
  • Specification

What it is

  • Programmable DC power supply for labs and production.

  • Precise voltage and current control for everyday tests.

Outputs and power

  • Two channels: 60 V at 1 A, and 8 V at 10 A.

  • Total power up to 140 W for small to mid-size devices.

Display and curves

  • Simple UI with clear menus.

  • See live signal curves to spot spikes and dips fast.

  • Catch transient peaks and set safe current limits.

Sequencing and automation

  • Program steps once and run in order.

  • Use the timer to change voltage and current at set intervals.

  • Cut manual work and keep tests repeatable.

Output analysis

  • Built-in analyzer shows stats for V, I, and W.

  • Check average, mode, and variance to judge stability.

  • Tune limits with real numbers, not guesses.

Precision

  • Add HIRES-DP800 for 1 mV and 1 mA resolution.

  • Test sensitive parts with tighter margins.

Remote control

  • Use SCPI from a PC or test rack.

  • Work with LabVIEW for logging and scripts.

  • Fit easily into multi-device setups.

Protection

  • OCP, OPP, OTP, and overvoltage on board.

  • Alarms warn early; shutdown protects the load and the supply.

Display

  • Read fast on a 3.5" monochrome TFT.

  • See voltage, current, power at a glance.

  • View real-time curves for dynamic checks.

Output Monitoring

  • Track the live output state.

  • Set limits once; trigger warn, shutoff, or beep when crossed.

Timer & Sequencing

  • Automate steps with a programmable timer.

  • Store up to 100 settings; run them in order at set intervals.

  • Get repeatable tests with minimal manual work.

High-Resolution Measurement

  • Resolve fine changes: 1 mV and 1 mA with HIRES-DP800.

  • New DP800 units include HIRES preinstalled.

  • Diagnose small drifts with confidence.

Connectivity & Remote Control

  • Plug in easily: USB and LAN on hand; GPIB and RS-232 optional.

  • Send SCPI commands for full control.

  • Use LabVIEW for scripted runs and data capture.

Protection

  • Stay safe with OCP, OPP, OTP, overvoltage, and reverse alarm.

  • Protect both the supply and your device under test.

General Features

  • Power Capacity: 140W

  • Rated Voltage: 60V (Output 1), 8V (Output 2)

  • Rated Current: 1A (Output 1), 10A (Output 2)

  • Interfaces: USB, LAN (optional), RS232 (optional), GPIB (optional)

  • Warranty: 3 years

  • NABL Calibration Certificate: Included

Output and Performance

  • Output 1: 0 to 60V/DC, max 1A

  • Output 2: 0 to 8V/DC, max 10A

  • Resolution: 10 mV (1 mV with HIRES-DP800 option)

  • Accuracy: ±0.1% + 25 mV (Voltage), ±0.1% + 10 mA (Current)

  • Ripple and Noise: < 350 μV rms / 2 mVpp (Voltage), < 2 mA rms (Current)

  • Load Regulation: < 0.01% + 2 mV (Voltage), < 0.01% + 250 μA (Current)

Protection & Control

  • Full Protection: OCP, OPP, OTP, Over Voltage, Reverse Alarm

  • Programmable Timer: Stores up to 100 settings for automated testing

  • Output Monitoring: Includes real-time monitoring and alert system for over-voltage, over-current, or other test conditions

Remote Control & Integration

  • SCPI Language: Remote control via SCPI commands

  • LabView Compatibility: Integration with LabView for automated testing

  • USB Host: For connecting USB devices to store settings

Physical Characteristics

  • Display: 3.5" monochrome TFT (Resolution: 320 × 240 pixels)

  • Dimensions: 23.9 cm x 15.7 cm x 41.8 cm (9.41" × 6.18" × 16.46")

  • Weight: 9.0 kg (19.84 lbs)
