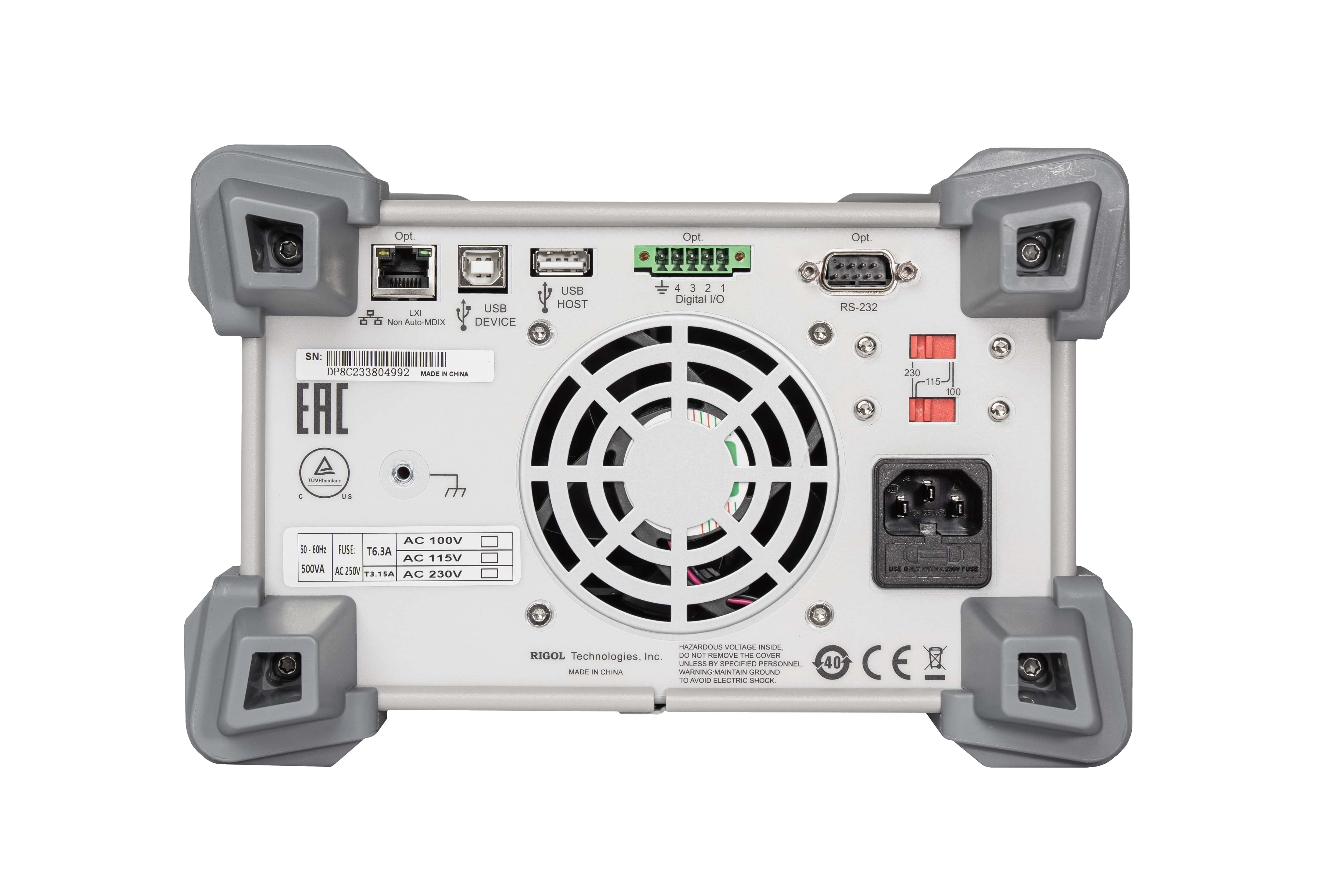

Image 3
DC Power

Rigol DP832

Rs. 83721.00

The Rigol DP832 is a high-quality programmable DC power supply with three output channels. Output 1 and Output 2 provide 0-30 V and 0-3 A, while Output 3 offers 0-5 V and 0-3 A, with a total maximum power output of 195W. The power supply includes advanced features like programmable voltage curves, signal curve displays, and a 3.5″ monochrome TFT display. It comes with a 3-year warranty and free HIRES-DP800 options (1mV/1mA high-resolution licenses valid until 31.12.2025) with purchase, along with an NABL calibration certificate..

  • Detail
  • Special Features
  • Specification

✨ Key Benefits (Cause → Effect)
Independent channels → separate specs per load → fewer boxes on the bench.
High-resolution mode → finer setpoints → safer limits, truer measurements.
Programmable timer → stored steps on schedule → repeat tests without babysitting.

📈 Control & Analysis (Tight, Task → Outcome)
Signal curve display → see spikes and sags live → set current limits with confidence.
Output analysis → median/mode/average/variance → verify stability fast → document with proof.

🌐 Connectivity (Plug → Perform)
USB, LAN, optional RS-232/GPIB → SCPI remote control → script, log, automate.
Drops into ATE racks → same supply, same steps → higher throughput, fewer errors.

➕ Tracking (Dual 30 V Rails)
Set one output → partner output tracks with reverse polarity → instant ± rails.
Linked moves → fewer dials, fewer mistakes → cleaner analog setups.

🧪 Where It Fits (Use → Payoff)
Op-amp and analog bring-up → stable ± supplies → reliable measurements.
Sensor/MCU boards → soft ramps, step loads → protect fresh silicon.
Production fixtures → repeatable profiles → dependable pass/fail data.

📺 Clearly Arranged Display
3.5″ monochrome TFT → 320×240 → volts/amps/watts read cleanly at a glance.
Clear UI → quicker checks → fewer mistakes.

🧭 Output Monitoring (Option)
Watch output state → meet your condition → warn / beep / shut off.
Instant action → protect DUTs → avoid damage.

📈 Display Signal Curves
Live traces → see spikes and dips → set current limits with confidence.
Visual feedback → faster diagnosis → cleaner results.

⏱️ Programmable Timer
Store up to 100 V/I steps → auto-run in sequence → repetitive tests go hands-free.
Repeat profiles → consistent data → easy comparisons.

📊 Output Analysis (Option)
Built-in stats → groups, median, mode, average, deviations.
Numbers at a glance → verify stability → document quickly.

🔗 Trigger Output (Option)
Rear Digital I/O → trigger in/out → sync with scopes, loads, fixtures.
Tighter timing → coordinated tests → fewer reruns.

🌐 Excellent Connectivity & Remote Control
USB Host/Device, LAN, optional RS-232/GPIB → SCPI control → script, log, automate.
LabVIEW integration → drop into ATE rigs → scale without fuss.

Specification Rigol DP832
Outputs 3
Output 1 0 to +30 V / DC with max. 3 A
Output 2 0 to +30 V / DC with max. 3 A
Output 3 0 to +5 V / DC with max. 3 A
Ground Sharing Output 1 sole GND, Output 2 + Output 3 shared GND
Output Power (max.) 195 W
Overtemperature shutdown 55 °C
Working Temperature 0 °C to 40 °C
Cooling Method Fan cooling
Output Voltage Output 1: 0 to +30 V, Output 2: 0 to +30 V, Output 3: 0 to +5 V
Accuracy (Voltage) ±0.05% + 10 mV
Resolution (Voltage) 10 mV (1 mV with High-Resolution Option)
Overvoltage Protection 10 mV to 33 V
Load Regulation (Voltage) < 0.01% + 2 mV
Line Regulation (Voltage) < 0.01% + 2 mV
Ripple and Noise (Voltage) < 350 μV rms / 2 mVpp
Output Current Output 1: 3 A, Output 2: 3 A, Output 3: 3 A
Accuracy (Current) ±0.15% + 5 mA
Resolution (Current) 10 mA (1 mA with High-Resolution Option)
Overcurrent Protection 1 mA to 3.3 A
Load Regulation (Current) < 0.01% + 250 μA
Line Regulation (Current) < 0.01% + 250 μA
Ripple and Noise (Current) < 2 mA rms
Display 3.5″ Monochrome TFT-LCD
Resolution (Display) 320 × 240 Pixel
Additional Interfaces USB Host, USB Device, LAN, RS232 (optional), GPIB (optional)
Dimensions (W × H × D) 23.9 cm × 15.7 cm × 41.8 cm
Weight 9.0 kg
Input 230 V/AC, 115 V/AC, or 100 V/AC (adjustable)
Tracking Function Yes (for Output 1 and Output 2)
