SEALEVEL | USB Hubs & Isolators

SeaISO USB Isolator

Precision You Can Trust
NABL-Accreditied Calibration | Available on Request
Rs. 25781.00

Protect your host and field equipment with the SeaISO ISO-1 Inline USB Isolator, offering 4 kVrms of isolation for data and power, ideal for commercial, industrial, and medical environments..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The SeaISO ISO-1 single-port inline USB isolator is designed to provide medical-grade isolation between the host system and connected USB devices, ensuring protection from damaging transients and surges. This isolator is ideal for use in environments where equipment safety is critical, such as industrial control systems, medical devices, and laboratories.

With a compact, easy-to-install design, the SeaISO ISO-1 connects directly to any available USB port without requiring additional drivers. The unit is USB bus-powered, ensuring hassle-free setup and energy-efficient operation. It provides up to 300 mA to a downstream USB device on standard USB ports and 500 mA when connected to a high-power USB port (1 A or greater).

Designed to meet IEC/EN 60601-1 3rd Edition standards, the SeaISO ISO-1 ensures high safety standards for applications requiring isolation between equipment. Its rugged plastic enclosure allows for easy mounting and integration into wall-mounted or panel-mounted setups, making it ideal for both fixed and mobile use.

  • 4 kVrms isolation for data and power lines (medical-grade)

  • UL Recognized, compliant with EN60601-1 3rd Edition

  • USB bus-powered: No external power required

  • Provides up to 500 mA to downstream USB devices (depending on host power)

  • High-retention USB connectors to prevent accidental disconnections

  • Supports Microsoft Windows, Linux, and other USB-aware OS

  • Compatible with USB 2.0 at 12 Mbps data rates

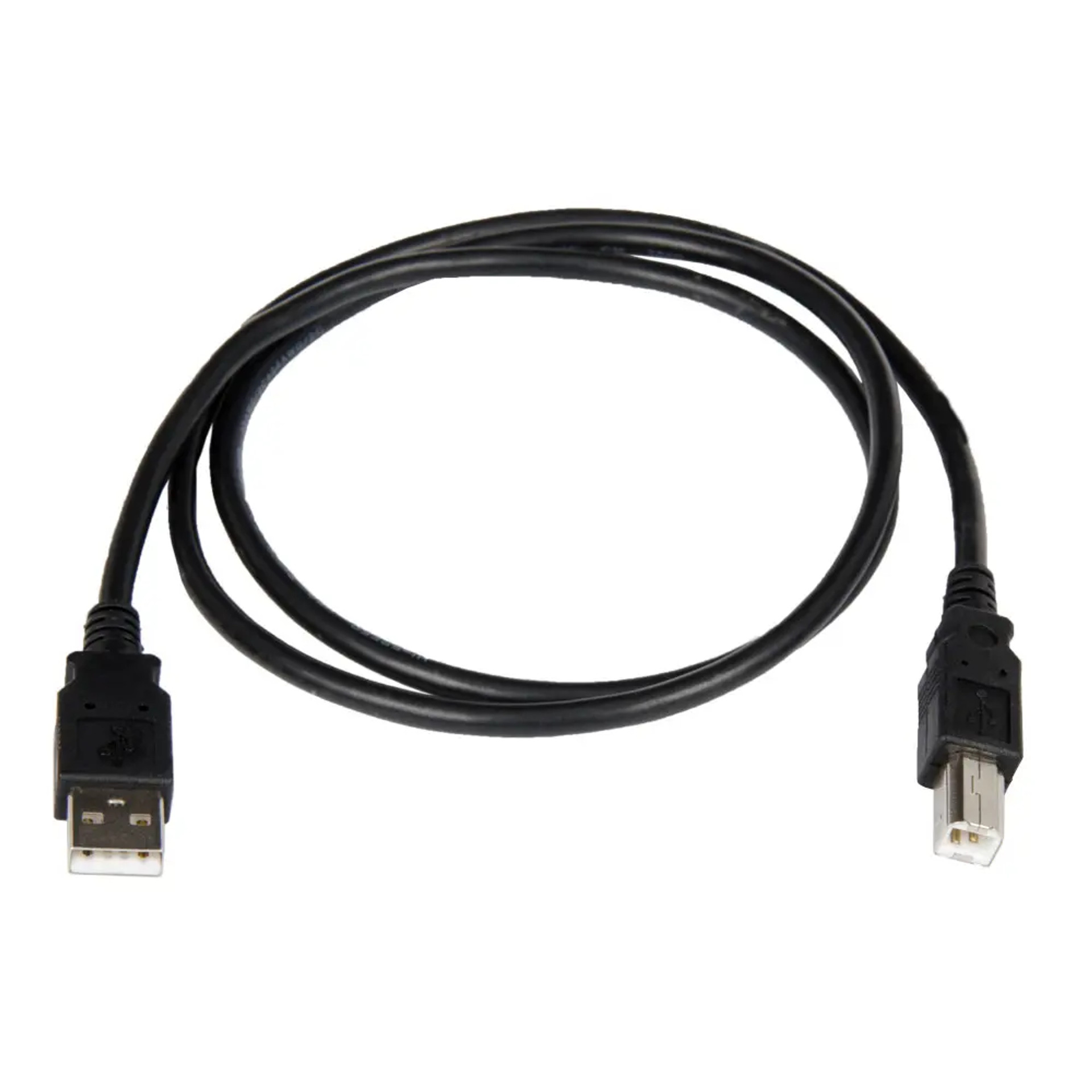

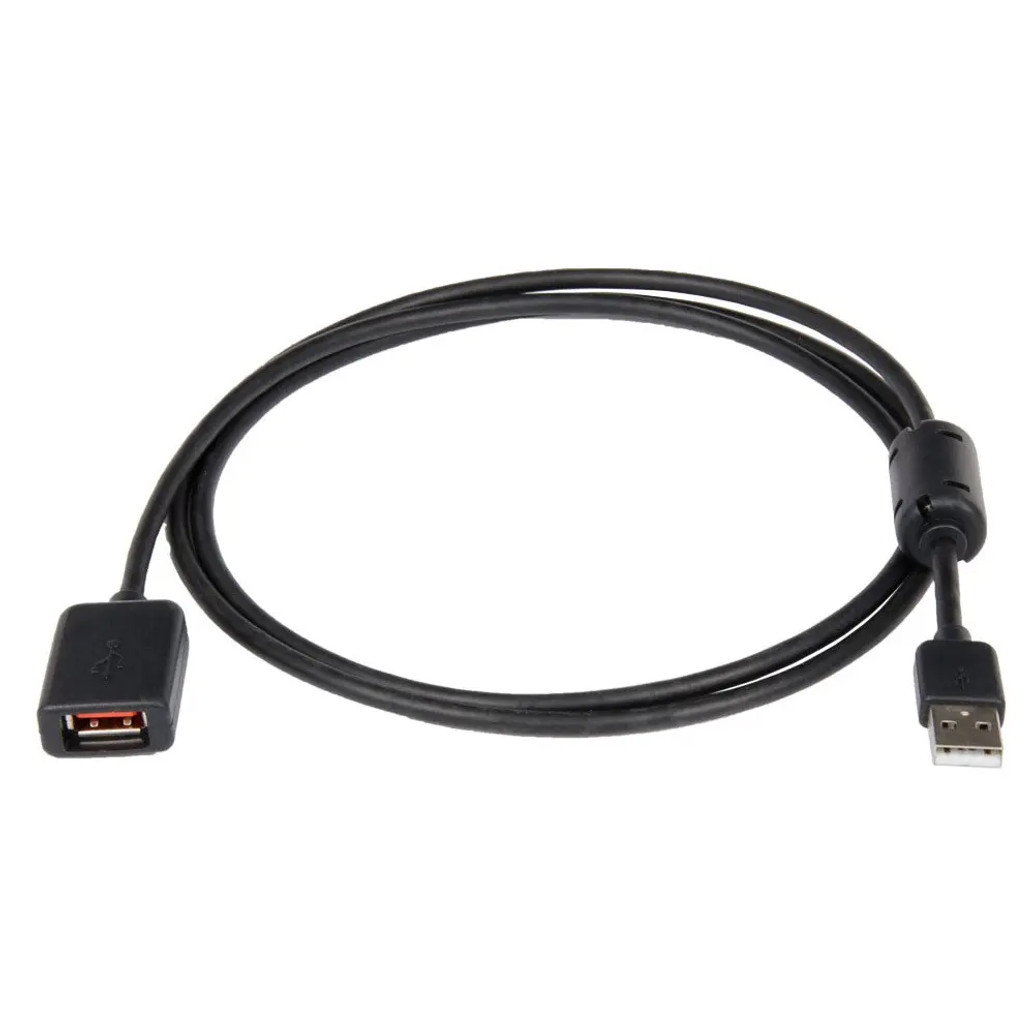

  • Includes 1.3-meter USB extension and 1-meter USB A to B cable

Feature Details
Host Interface(s) USB
Max Data Distance 5 meters
Max Data Rate 12 Mbps (USB 2.0)
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Number of Ports 1 port
Power Requirement USB +5V @ 200 mA (Max)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
USB Specification USB 2.0 Compliant; 1.0 Compatible
Dimensions (Enclosure) 7.6" (L) x 2.0" (W) x 1.1" (H) (4.0" L without ears)
Humidity Range 10-90% Relative Humidity/Non-Condensing
Included Cables 1.3m USB A to A extension, 1m USB A to B device cable
