SEALEVEL | USB Digital

SeaDAC Lite PLC-8 Kit

Now includes NABL Calibration Certificate.
Rs. 24384.00

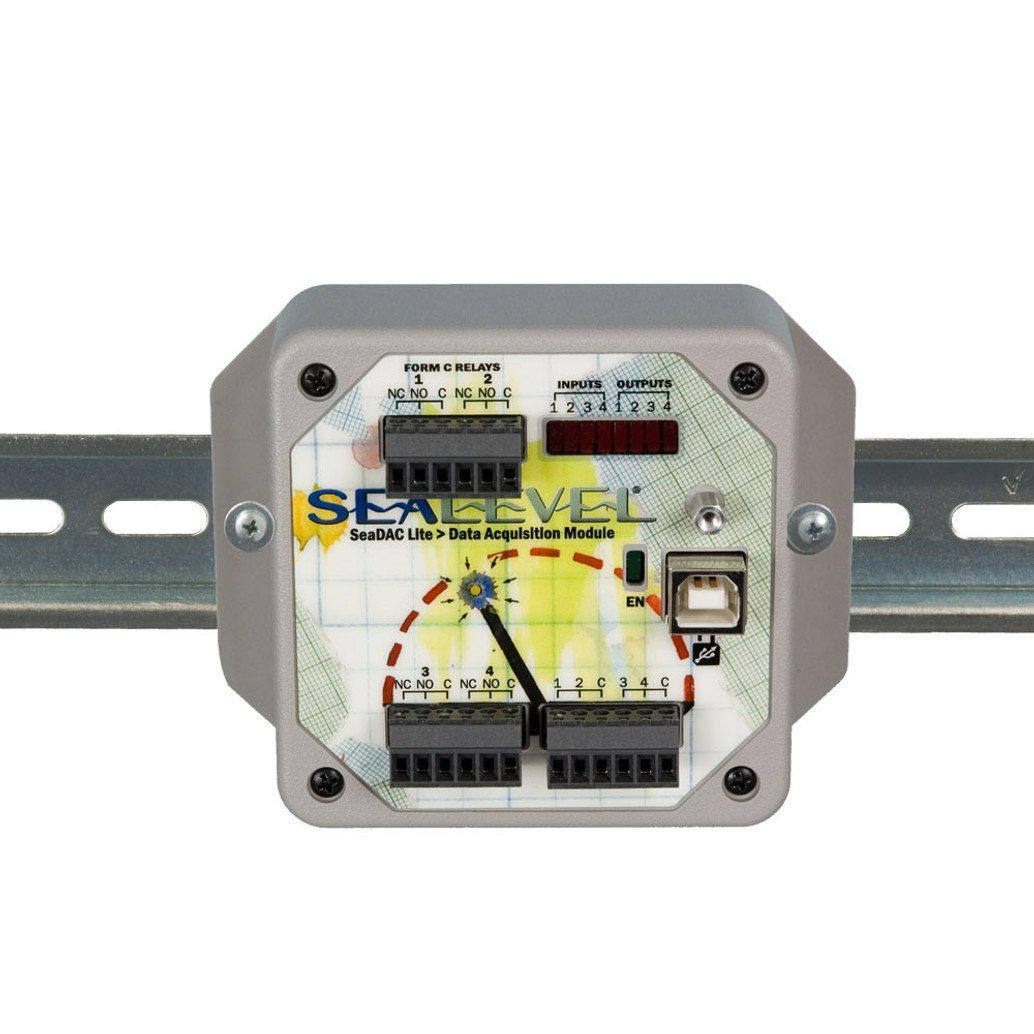

The SeaDAC Lite 8112 is a USB-based data acquisition module that features four optically isolated digital inputs and four Form C (SPDT) relay outputs, offering reliable signal monitoring and high-current switching through a compact, rugged USB interface. Ideal for industrial automation, control panels, and custom system integration..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

Model 8112 from the SeaDAC Lite series enables robust USB I/O interfacing, combining input isolation and power switching in a compact form factor. The isolated inputs offer enhanced protection against surges, while the Form C relays allow flexible control of high-current loads in either normally open or normally closed configurations.

It uses 3.5mm removable terminal blocks for simplified field wiring and includes a USB Type B SeaLATCH locking connector that prevents accidental disconnection. The enclosure is durable enough for industrial environments, and installation is seamless with Sealevel’s SeaMAX software suite, which provides GUI and API-based control across platforms.

This unit is perfect for engineers needing reliable I/O control in automation, test benches, equipment triggering, and more.

  1. 4 Optically Isolated Inputs (5–30 VDC) with 3500 VDC protection

  2. 4 SPDT Form C Relays rated for up to 6 A at 250 VAC / 5 A at 60 VDC

  3. SeaLATCH USB Port for secure locking connections

  4. Status LEDs for visual indication of I/O activity

  5. Rugged plastic enclosure for mounting on walls or panels

  6. USB Bus Powered – no external power supply needed

  7. Fully supported by SeaMAX software (Windows and Linux)

  8. Compatible with third-party applications via the SeaMAX API

Parameter Value
Model Number 8112
Inputs 4 Optically Isolated, 5–30 VDC
Input Isolation 3500 VDC (2500 VAC RMS)
Outputs 4 Form C Relays (SPDT)
Relay Ratings 6 A @ 250 VAC, 5 A @ 60 VDC
Relay Configuration NO or NC wiring, individual commons
USB Interface USB 1.1 Compliant, USB 2.0 Compatible
Connector SeaLATCH USB Type B (locking)
Power USB powered, +5 V @ 500 mA
Enclosure Rugged plastic (wall/panel mountable)
Dimensions 4.3" (L) x 3.4" (W) x 1.3" (H)
Operating Temp 0°C to +70°C (Extended: -40°C to +85°C optional)
Storage Temp -50°C to +105°C
Humidity 10–90% RH, non-condensing
Software Support SeaMAX (Windows, Linux), API compatible
