SEALEVEL | USB Digital

SeaDAC Lite REL-4C

Now includes NABL Calibration Certificate.
Rs. 19685.00

The SeaDAC Lite - USB to 4 Form C Relay Outputs module provides four Form C SPDT relay outputs for PC-based control and automation. These relays can handle high-current loads and are easily controlled via a USB connection..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

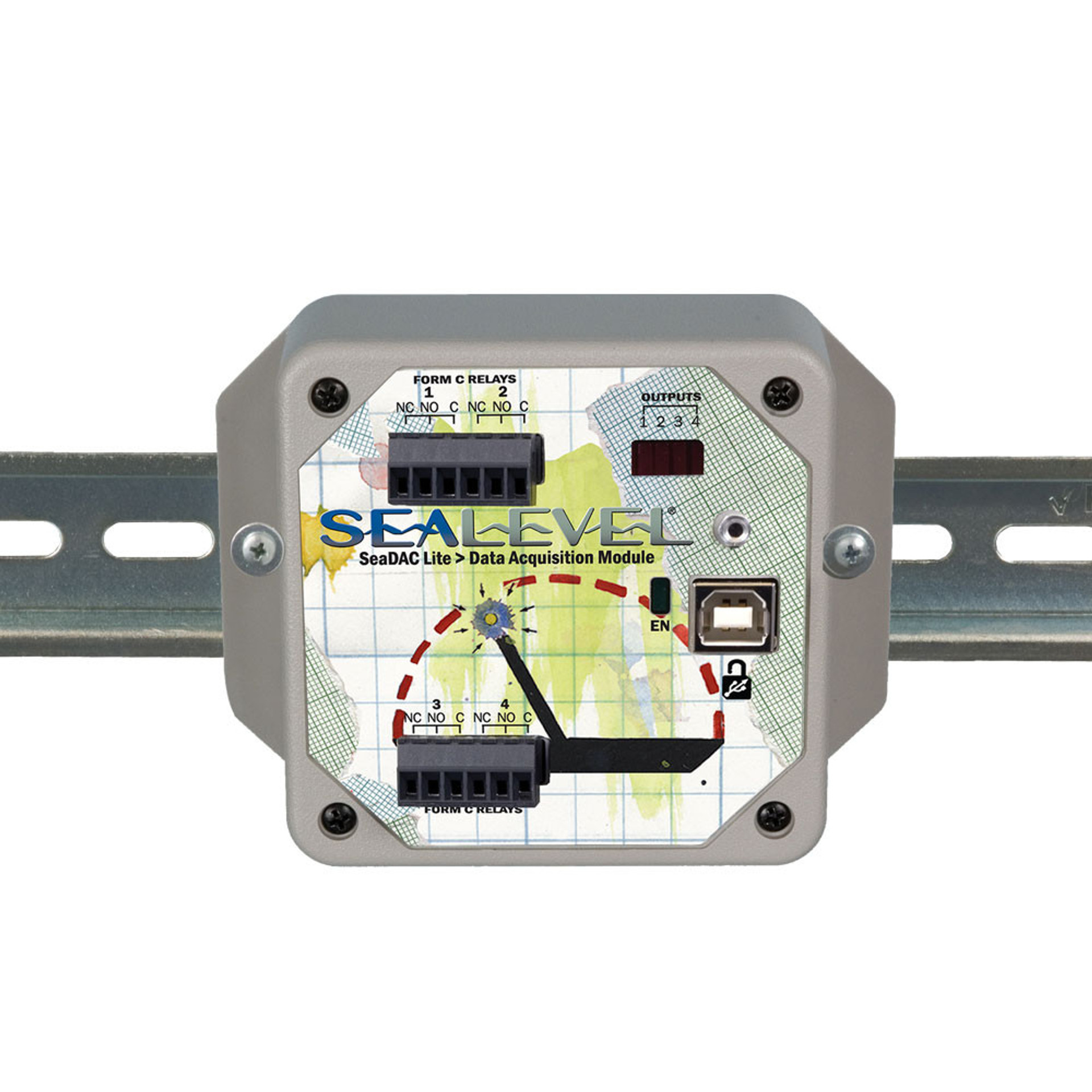

The SeaDAC Lite - USB to 4 Form C Relay Outputs is ideal for automation and control systems requiring high-current relay outputs. It features 4 Form C SPDT relays that can switch significant loads, making it perfect for industrial or high-power applications. The module is equipped with removable terminal blocks, simplifying wiring connections, and status LEDs to display relay activity.

This device is powered via the USB bus, eliminating the need for an external power supply. With SeaLATCH USB connectors, it offers a secure connection to avoid accidental disconnections. The module is housed in a rugged enclosure, suitable for installation in various environments.

The SeaMAX software suite makes it easy to integrate with third-party applications or Modbus RTU-compliant devices, supporting both Windows and Linux operating systems.

  • 4 Form C (SPDT) relays, each capable of switching up to 6A at 250VAC or 5A at 60VDC

  • Removable 3.5mm terminal blocks for easy wiring with 16-30 AWG wire

  • USB bus-powered, no external power supply needed

  • SeaLATCH locking USB port for a secure connection

  • Status LEDs for monitoring relay activity

  • Sealevel software supports Windows and Linux operating systems

  • Rugged, attractive plastic enclosure suitable for mounting in various environments

Feature Details
Host Interface USB
Operating Temperature 0°C to 70°C (32°F to 158°F)
Power Requirement +5V @ 500mA
Storage Temperature -50°C to 105°C (-58°F to 221°F)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Number of Ports 4
Dimensions 4.3 (L) x 3.4 (W) x 1.3 (H)
Humidity Range 10-90% Relative Humidity/Non-Condensing
