SEALEVEL | USB Digital

SeaDAC Lite PLC-8

Rs. 24384.00

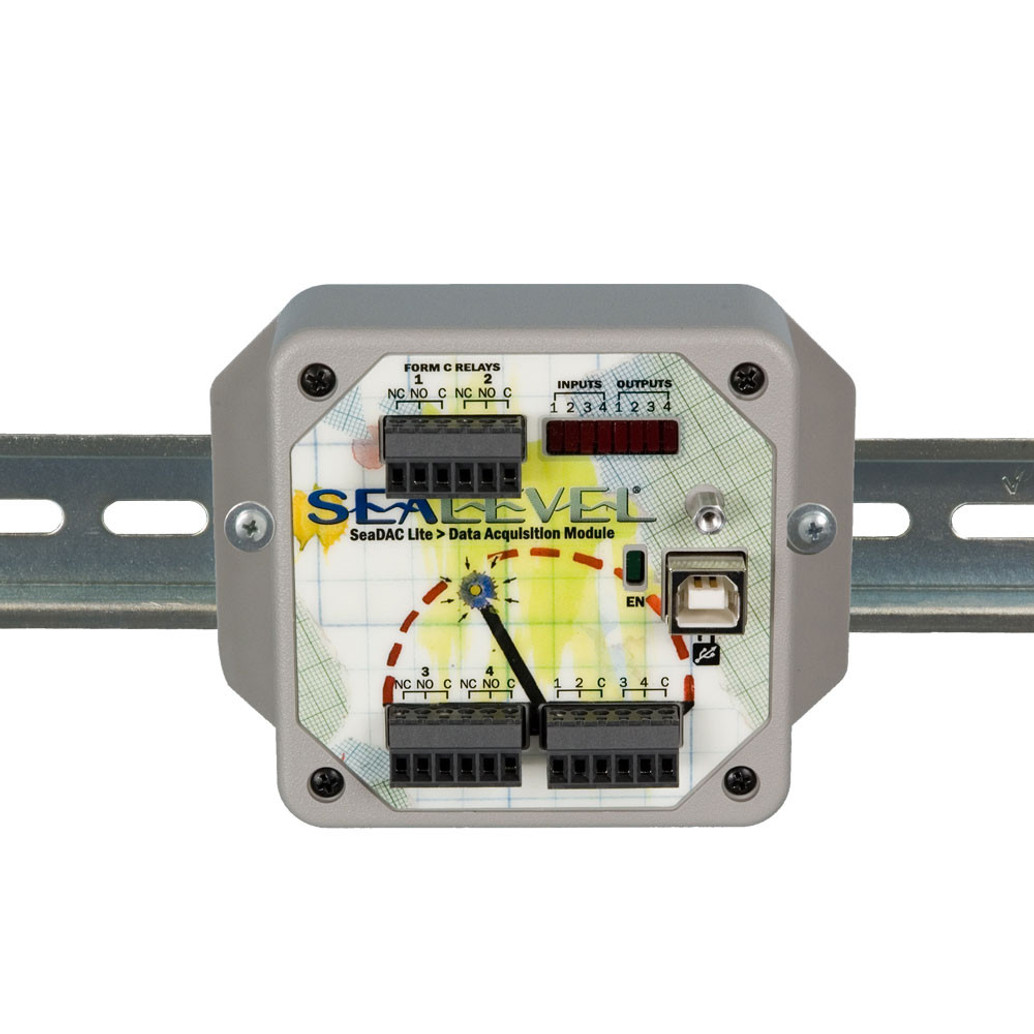

The SeaDAC Lite - USB to 4 Isolated Inputs; 4 Form C Relays offers 4 optically isolated inputs and 4 Form C (SPDT) relay outputs, allowing easy control and monitoring of equipment via USB connection. The inputs are 5-30VDC with 3500VDC isolation, and the high-current Form C relays can switch up to 6A at 250VAC and 5A at 60VDC..

  • Detail
  • Special Features
  • Specification

The SeaDAC Lite - USB to 4 Isolated Inputs; 4 Form C Relays is designed for control and monitoring of industrial equipment via a USB connection. The 4 optically isolated inputs offer 3500VDC isolation, ensuring protection against voltage surges and ground loops. The 4 Form C (SPDT) relays are capable of switching high-current loads, up to 6A at 250VAC and 5A at 60VDC. The module features removable terminal blocks, making it easy to wire devices, while status LEDs allow for easy monitoring of I/O activity.

The module is USB bus powered, eliminating the need for an external power supply. The SeaMAX software suite simplifies installation, making it compatible with both Windows and Linux operating systems. The SeaDAC Lite is housed in a durable, rugged plastic enclosure, suitable for wall, under-counter, or panel mounting.

  • 4 optically isolated inputs with 3500VDC isolation

  • 4 high-current Form C (SPDT) relays, with the capability to switch up to 6A at 250VAC and 5A at 60VDC

  • USB bus-powered, eliminating the need for external power supply

  • Status LEDs to display I/O activity

  • Removable 3.5mm terminal blocks for easy wiring

  • SeaLATCH locking USB port with thumbscrew for a secure connection

  • Rugged plastic enclosure, ideal for mounting in various environments

  • SeaMAX software suite for easy integration and operation with Windows and Linux systems

  • Operating temperature range: 0°C to 70°C, with optional extended temperature range (-40°C to +85°C)

Feature Details
Host Interface USB
Operating Temperature 0°C to 70°C (32°F to 158°F)
Power Requirement +5V @ 500mA
Storage Temperature -50°C to 105°C (-58°F to 221°F)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Family SeaDAC Lite
Dimensions 4.3" (L) x 3.4" (W) x 1.3" (H)
Humidity Range 10-90% Relative Humidity/Non-Condensing
