SEALEVEL | USB Digital

SeaDAC Lite REL-4

Now includes NABL Calibration Certificate.
Rs. 18288.00

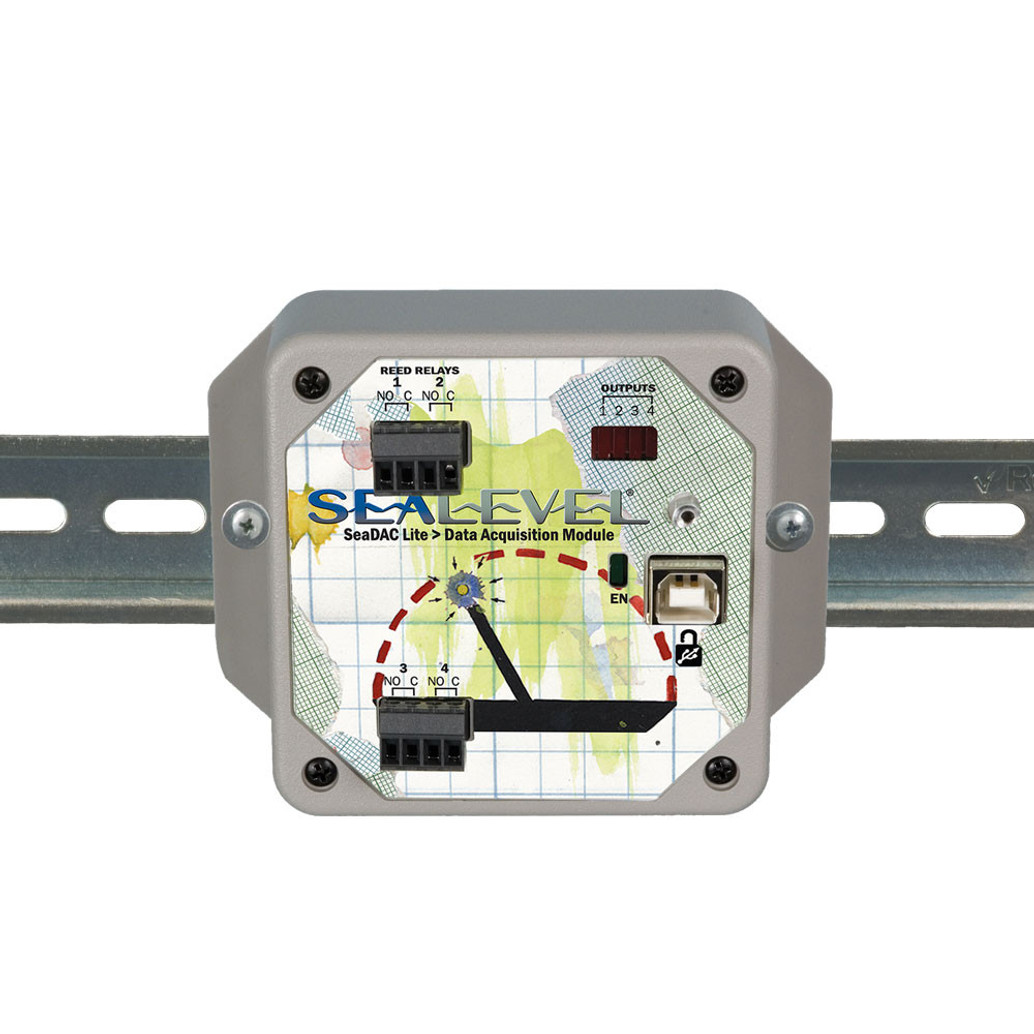

The SeaDAC Lite - USB to 4 Reed Relays module provides 4 dry-contact Reed relay outputs for controlling low current devices via USB. With long-life switch closures and removable terminal blocks, it's ideal for use in automation and control systems..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The SeaDAC Lite - USB to 4 Reed Relays is designed to provide reliable dry-contact Reed relay outputs for low-current applications, all controlled via a USB connection. This module is ideal for use in environments where simple switching is required. Each Reed relay comes with a discrete common, allowing for better flexibility in wiring and configuration.

With USB bus power, there's no need for an external power source, making it easy to integrate into existing systems. The module is housed in a rugged plastic enclosure and features removable terminal blocks for quick and efficient field wiring.

  • 4 Reed relay outputs for long-life switch closures

  • Discrete common for each relay

  • USB bus-powered, no external power supply required

  • Status LEDs to display I/O activity

  • Removable 3.5mm terminal blocks for easy wiring

  • SeaLATCH locking USB port to prevent accidental disconnections

  • Standard operating temperature: 0°C to +70°C, with optional extended temperature range (-40°C to +85°C)

Feature Details
Host Interface USB
Operating Temperature 0°C to 70°C (32°F to 158°F)
Power Requirement +5V @ 500mA
Storage Temperature -50°C to 105°C (-58°F to 221°F)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Family SeaDAC Lite
Dimensions 4.3" (L) x 3.4" (W) x 1.3" (H)
Humidity Range 10-90% Relative Humidity/Non-Condensing
