SEALEVEL | USB Digital

SeaLINKPLC-16

Now includes NABL Calibration Certificate.

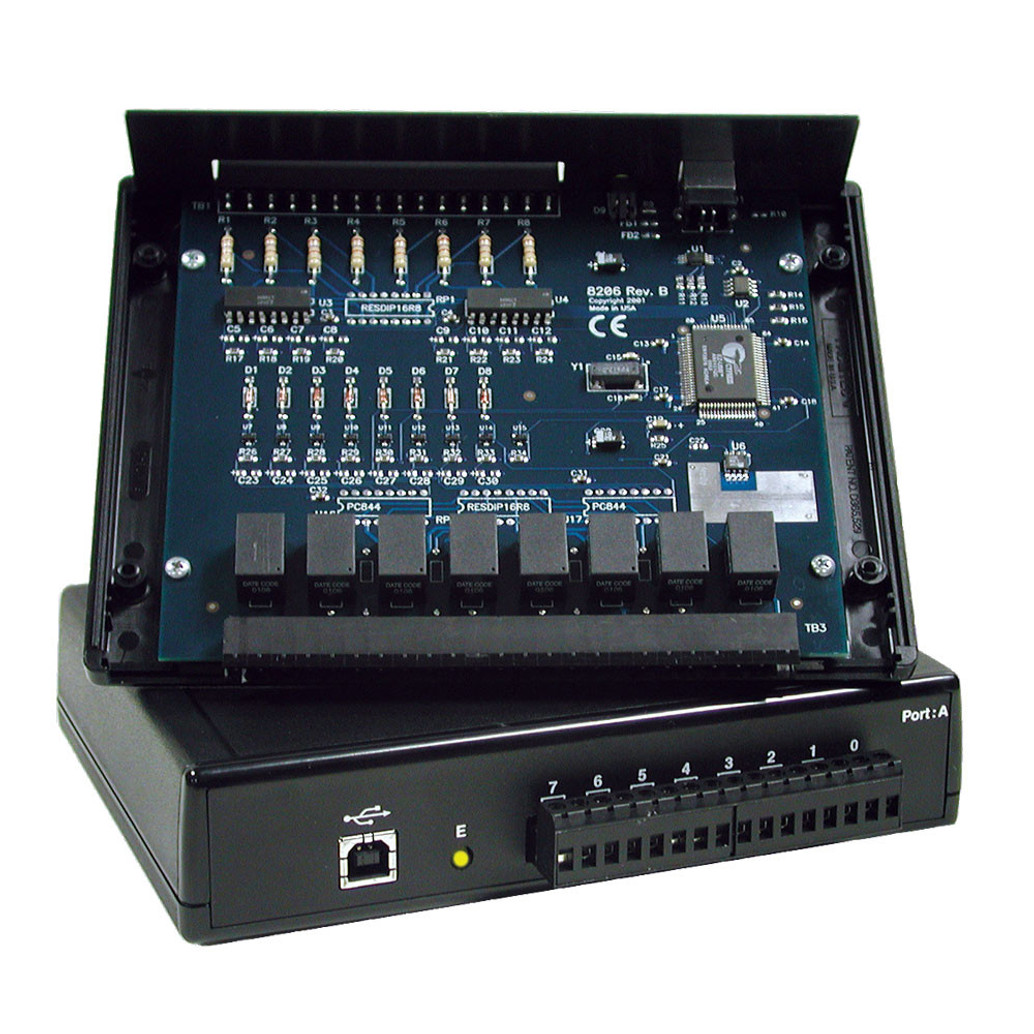

The SeaLINK PLC-16 is a USB digital I/O interface adapter offering 8 optically isolated inputs and 8 Form C relay outputs, ideal for PC-based control and industrial automation systems..

  • Detail
  • Special Features
  • Specification

The SeaLINK PLC-16 is a USB digital I/O interface adapter designed to provide 8 optically isolated inputs and 8 Form C relay outputs, offering high flexibility for industrial automation and equipment control. The Form C relays support 2 Amp switching and carry current, making them suitable for high-power control applications.

With removable screw terminals and an optional DIN rail mounting, the adapter simplifies wiring and installation, allowing for easy integration into control systems. The SeaIO Classic software ensures smooth operation on Windows operating systems.

As a legacy product, SeaLINK PLC-16 continues to receive technical and warranty support, but for new designs, we recommend the SeaI/O-420U, which provides comparable functionality and improved component availability. Additionally, this product is not supported on USB 3.x ports, and users must update their SeaIO drivers to ensure proper operation.

  • 8 Form C relay outputs supporting 2 Amp switch and carry current

  • 8 optically isolated inputs for safe, high-performance operation

  • Onboard removable screw terminals for easy wiring connections

  • DIN rail mounting option for flexible installation

  • SeaIO Classic software drivers for easy installation and operation with Windows systems

  • Legacy product, not recommended for new designs due to limited component availability (Transition to SeaI/O-420U for new projects)

  • Not compatible with USB 3.x ports, requires SeaIO driver update

Feature Details
Host Interface USB
Operating Temperature 0°C to 70°C (32°F to 158°F)
Power Requirement +5V @ 50mA
Storage Temperature -50°C to 105°C (-58°F to 221°F)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Family SeaDAC
Dimensions 7.1" (L) x 5.3" (W) x 1.5" (H)
Humidity Range 10-90% Relative Humidity/Non-Condensing
