SEALEVEL | USB Digital

TA01

Now includes NABL Calibration Certificate.
Rs. 11557.00

The TA01 is a 50-pin terminal simulation module that replicates the behavior of a standard 24-channel relay rack. It’s ideal for testing and debugging TTL digital I/O control programs before deployment, with built-in LEDs and DIP switches for simulating real-world signals..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The TA01-ROHS Relay Rack Simulation Module is a valuable diagnostic tool for developers working with Sealevel TTL digital I/O systems. It provides a safe, accurate simulation of an industry-standard 24-channel relay rack, allowing control programs to be tested and debugged in the lab before being deployed in the field.

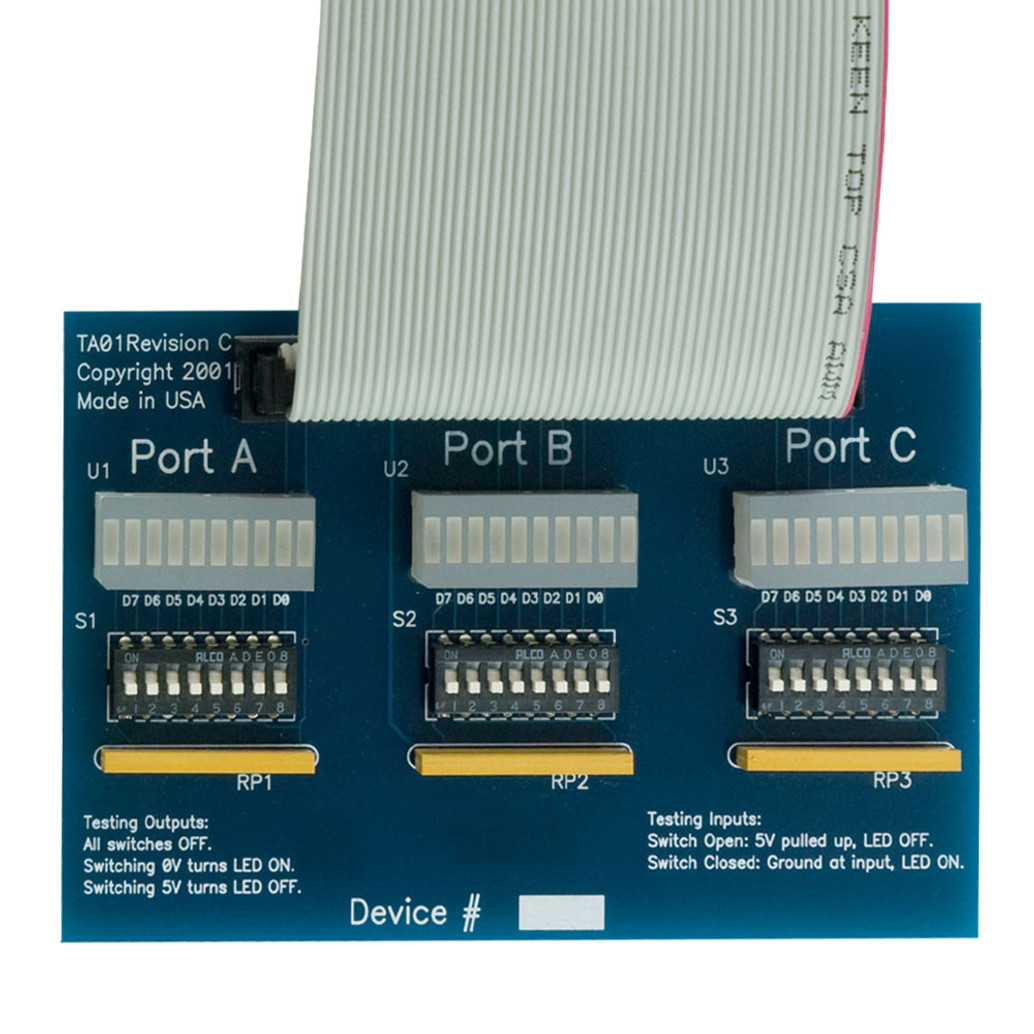

The module features three 8-bit LED arrays that visually indicate the state of each I/O port bit—mimicking energized relays. For input simulation, eight-position DIP switches are included, allowing you to toggle input status and observe system responses in real time.

Designed to work with Sealevel's 24-, 48-, and 96-channel TTL devices, the TA01 connects via a standard 50-pin IDC ribbon cable. It also comes with an ST101 Snap Track for easy mounting in a DIN rail environment.

Using the TA01 reduces deployment risks and helps ensure flawless control system installation on-site.

  • Simulates 24-Channel Relay Rack – Ideal for pre-installation testing

  • 3 x 8-Bit LED Blocks – Visual indication of output state per I/O bit

  • DIP Switch Inputs – Generate input signal changes manually

  • 50-Pin IDC Compatibility – Connects to standard Sealevel TTL devices

  • No External Relays Required – Fully electronic simulation module

  • Includes ST101 Snap Track – For convenient DIN rail mounting

  • Supports Sealevel 24/48/96 Channel TTL Products

  • Speeds Debugging Process – Reduce time spent testing on-site

Parameter Details
Model Number TA01-ROHS
Simulation Type 24-Channel Relay Rack Equivalent
Connector Interface 50-Pin IDC Ribbon Cable (Not Included)
LED Display 3 x 8-bit Blocks – Output Activity Visualization
DIP Switches 3 x 8-Position Switches – Simulate Input Changes
Compatible Devices Sealevel 24/48/96 Channel TTL Digital I/O Products
Mounting Includes ST101 Snap Track for DIN Rail Mounting
Use Case I/O Simulation, Pre-Deployment Debugging, Lab Testing Environments
