SEALEVEL | SeaIO

TR156

Rs. 3048.00

International wall-mount power adapter delivering 24VDC @ 1A. Ideal for powering SeaI/O data acquisition modules across global installations..

  • Detail
  • Special Features
  • Specification

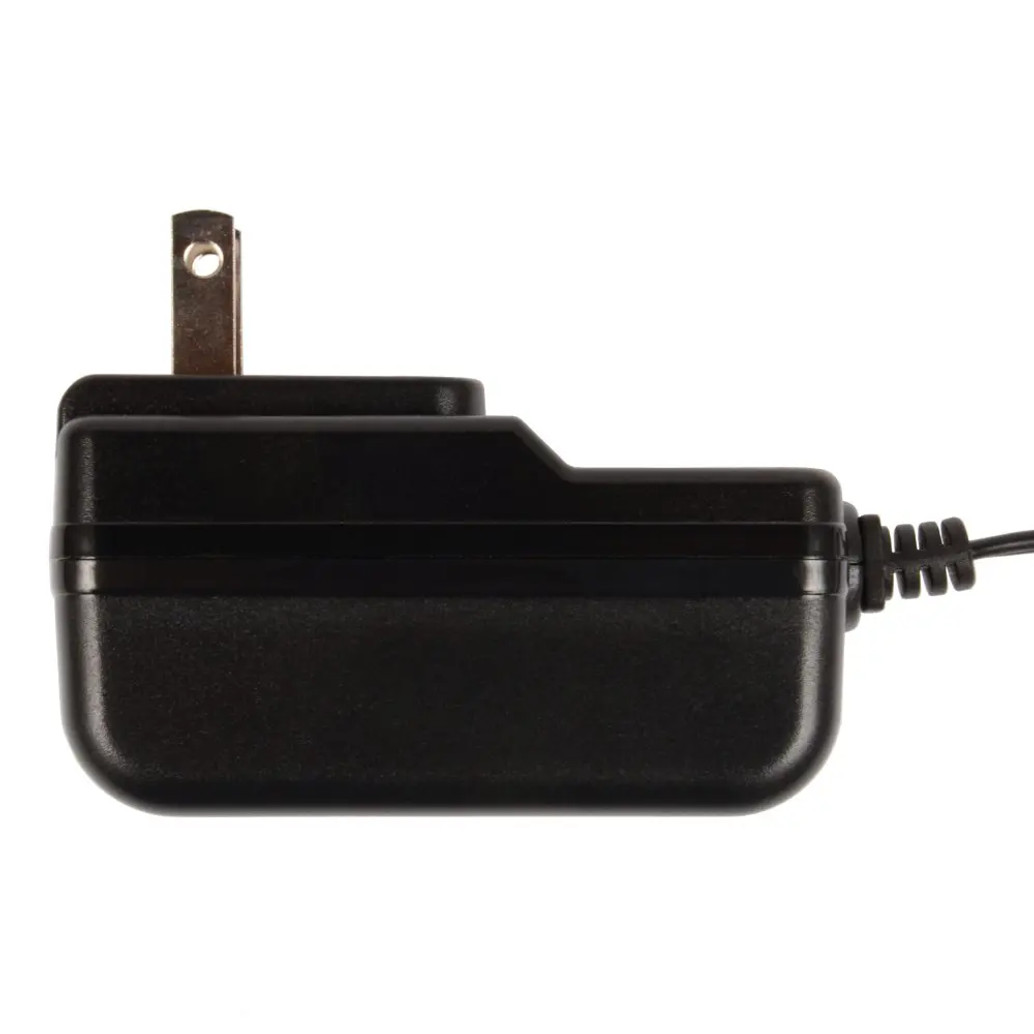

The TR156 is a compact, travel-ready power supply designed to deliver stable 24VDC power for SeaI/O modules and related devices. Accepting universal AC input (100–240VAC), it supports operation in a wide range of countries thanks to its included set of 4 interchangeable plugs compatible with outlets in Asia, Europe, UK, US, and more.

The output delivers 1A at 24VDC through a 1.3mm barrel connector, with a cable length of approximately 60 inches—providing ample reach for industrial or lab setups. Its efficiency rating meets Level VI standards, ensuring energy-conscious operation. Safety and environmental compliance are confirmed by UL/cUL 60950-1 and RoHS certifications.

This adapter is perfect for powering one or more SeaI/O modules; users should consult the SeaI/O manual to ensure sufficient power headroom when using with multiple devices.

  • Input: 100–240VAC, 50/60Hz (universal)

  • Output: Regulated 24VDC @ 1A

  • Includes 4 interchangeable AC plugs for worldwide use

  • 1.3mm barrel connector with 60-inch DC cable

  • Meets Level VI energy efficiency standards

  • UL/cUL 60950-1 certified, RoHS compliant

  • Supports single or multiple SeaI/O modules (refer to power requirements)

  • Input Voltage: 100–240VAC, 50/60Hz

  • Output Voltage: 24VDC

  • Max Output Current: 1A

  • Power Output: 24W

  • Connector Type: 1.3mm barrel

  • Cord Length: Approx. 60 inches

  • Plug Types: US, UK, EU, Asia/Australia (interchangeable)

  • Certifications: UL/cUL 60950-1, RoHS compliant

  • Energy Standard: Level VI efficiency

  • Operating Temperature: 0°C to 40°C (32°F to 104°F)

  • Compatibility: All SeaI/O modules (single or multi-stack with proper sizing)
