SEALEVEL | SeaIO

SeaI/O-410S

Now includes NABL Calibration Certificate.
Rs. 30480.00

SeaI/O-410S is an RS-232 Modbus RTU interface module that features 16 optically isolated inputs and 16 Reed relay outputs, providing a reliable solution for low current switching and industrial control applications..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The SeaI/O-410S provides 16 digital I/O channels, consisting of 16 optically isolated inputs and 16 Reed relays (Form A) for switching low-current devices. Designed to support a wide input range of 5–30VDC, the isolated inputs ensure protection against transients and electrical noise. The Reed relays are ideal for controlling devices such as alarms, lights, and low-power industrial equipment, with a long operational lifespan.

Communication is handled via RS-232 using Modbus RTU, a reliable protocol for industrial automation systems. Each input and output group is arranged into four-bit segments with shared common terminals, simplifying field wiring. The module is powered by a 9–30VDC source and comes with Sealevel’s SeaMAX software drivers for easy installation and integration with Windows and Linux systems.

Expand your system easily with up to 246 additional SeaI/O N-series modules, making the SeaI/O-410S a flexible choice for scalable control and monitoring applications.

  • 16 optically isolated digital inputs (5–30VDC)

  • 16 Reed relays (Form A) for low-current switching

  • RS-232 Modbus RTU interface for reliable communication

  • Easy wiring with 3.5mm removable terminal blocks

  • Wide power input range: 9–30VDC

  • Supports Sealevel SeaMAX API for Windows & Linux

  • Expandable with up to 246 SeaI/O N-series modules

  • Durable enclosure design for industrial applications

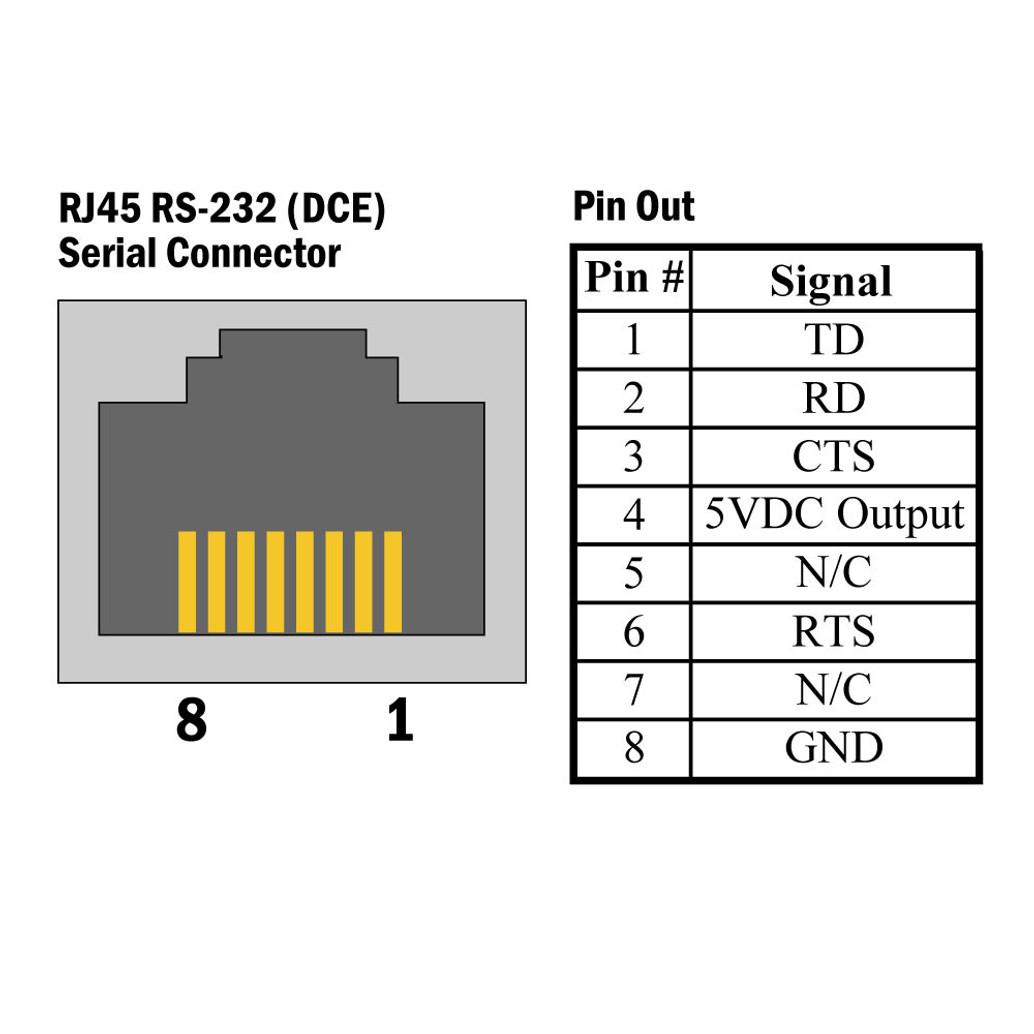

  • Host Interface: RS-232

  • Digital Inputs: 16 optically isolated (5–30VDC)

  • Relay Outputs: 16 Reed relays (Form A)

  • Power Supply: 9–30 VDC @ 1.6W

  • Operating Temperature: 0°C to 70°C (32°F to 158°F)

  • Storage Temperature: -50°C to 105°C (-58°F to 221°F)

  • Dimensions: 7.5" (L) x 5.1" (W) x 1.3" (H)

  • Humidity Range: 10–90% RH (non-condensing)

  • Software Support: SeaMAX API for Windows & Linux

  • Expansion Support: Up to 246 SeaI/O modules

  • Form Factor: Enclosure
