SEALEVEL | SeaIO

SeaI/O-580E

Now includes NABL Calibration Certificate.
Rs. 77978.00

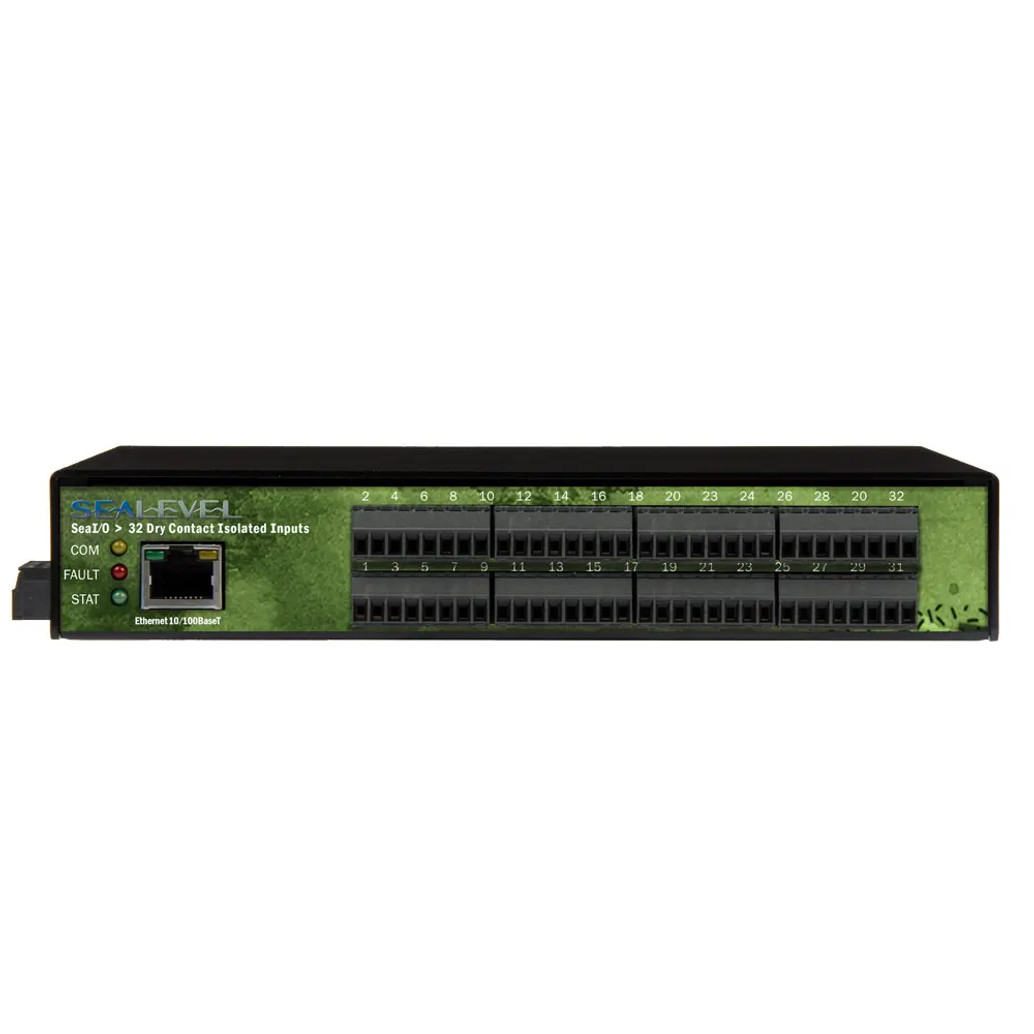

The SeaI/O-580E provides 32 isolated dry contact inputs, ideal for applications like alarm contacts and HVAC controls. It communicates via Modbus TCP over Ethernet, offering simple wiring and seamless integration into industrial control systems..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

contact inputs. It features 32 isolated inputs, making it ideal for industrial control systems that need to monitor alarm contacts, HVAC systems, and sensing relay contacts. The dry contact inputs do not require external power to be triggered, simplifying system installation and operation.

Communication is achieved through Modbus TCP over Ethernet, which allows easy integration into existing control systems. The module is powered by a 9-30VDC source and features removable screw terminals for easy field installation.

For mobile diagnostics and remote monitoring, the Sealevel Modbus Connect app allows users to access the I/O system and troubleshoot directly from iOS devices. The SeaI/O-580E also supports expansion, allowing up to 246 SeaI/O N-series modules for larger control systems.

  • 32 Isolated Dry Contact Inputs – Ideal for monitoring alarm contacts, HVAC controls, and other control system inputs

  • Dry Contact (No-Voltage) – Simple, no external power required to trigger inputs

  • Modbus TCP Communication – Over Ethernet for remote control and monitoring

  • Sealevel SeaMAX API – Supports integration with Windows and Linux systems

  • Power Input – Operates on 9–30VDC, with Sealevel power supply options available

  • Removable Screw Terminals – Simplifies field wiring connections

  • Expansion Capability – Supports up to 246 additional SeaI/O N-series modules

  • iOS App Ready – Sealevel Modbus Connect app for remote I/O testing and diagnostics

  • Enclosure Design – Durable and ready for industrial environments

Parameter Details
Model Number 580E-ROHS
Form Factor Enclosure
Host Interface Ethernet (10/100BaseT)
Communication Protocol Modbus TCP
Number of Inputs 32
Input Type Optically Isolated Dry Contact Inputs
Number of Outputs 0
Output Type N/A
Power Requirement 9–30 VDC @ 3W (Typical)
Expansion Capability Supports up to 246 SeaI/O N-Series Modules
Software Compatibility SeaMAX API (Windows/Linux), Modbus TCP
iOS App Support Sealevel Modbus Connect App
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -50°C to 105°C (-58°F to 221°F)
Humidity Range 10–90% RH, Non-Condensing
Dimensions (inches) 7.5" (L) x 5.1" (W) x 1.3" (H)
