SEALEVEL | SeaIO

SeaI/O-580PoE

Rs. 77978.00

The SeaI/O-580PoE provides 32 isolated dry contact inputs with Power over Ethernet (PoE) capability. Ideal for industrial monitoring applications, it uses Modbus TCP for remote control and eliminates the need for external power, using a single CAT5 cable for both data and power..

  • Detail
  • Special Features
  • Specification

The SeaI/O-580PoE is a PoE-enabled Ethernet I/O module designed for applications requiring 32 isolated dry contact inputs. The dry contact inputs are ideal for monitoring devices such as alarm contacts, HVAC systems, and other industrial control systems. The module requires no external power to trigger inputs, simplifying the installation and operation.

The module is powered via Power over Ethernet (PoE), meaning both data and power are delivered over a single CAT5 cable. The module conforms to IEEE 802.3af-2003 and operates as a Class 0 device, which eliminates the need for external power sources. 24 VDC is provided for powering additional SeaI/O expansion modules via an RS-485 pass-through connector.

Communication with the module is facilitated using Modbus TCP over Ethernet, making it ideal for remote control and monitoring. The SeaI/O-580PoE also supports the Sealevel Modbus Connect app for iOS, allowing users to remotely access I/O systems and perform diagnostics.

The module is designed for industrial environments, housed in a protective enclosure, and features removable screw terminals for easy wiring.

  • 32 Isolated Dry Contact Inputs – Detect contact closures between two externally wired field contact points for monitoring alarm contacts, HVAC controls, and more

  • Dry Contact (No-Voltage) Inputs – Simplifies integration with control systems, requiring no external power to trigger inputs

  • PoE (Power over Ethernet) – Class 0 (IEEE 802.3af), providing both data and 24 VDC power over a single CAT5 cable

  • Modbus TCP Communication – Seamless communication over Ethernet for remote monitoring and control

  • Sealevel SeaMAX API – Supports integration with Windows and Linux systems

  • Power Input – Powered via PoE with no need for additional power supplies

  • Removable Screw Terminals – Simplifies field wiring and installation

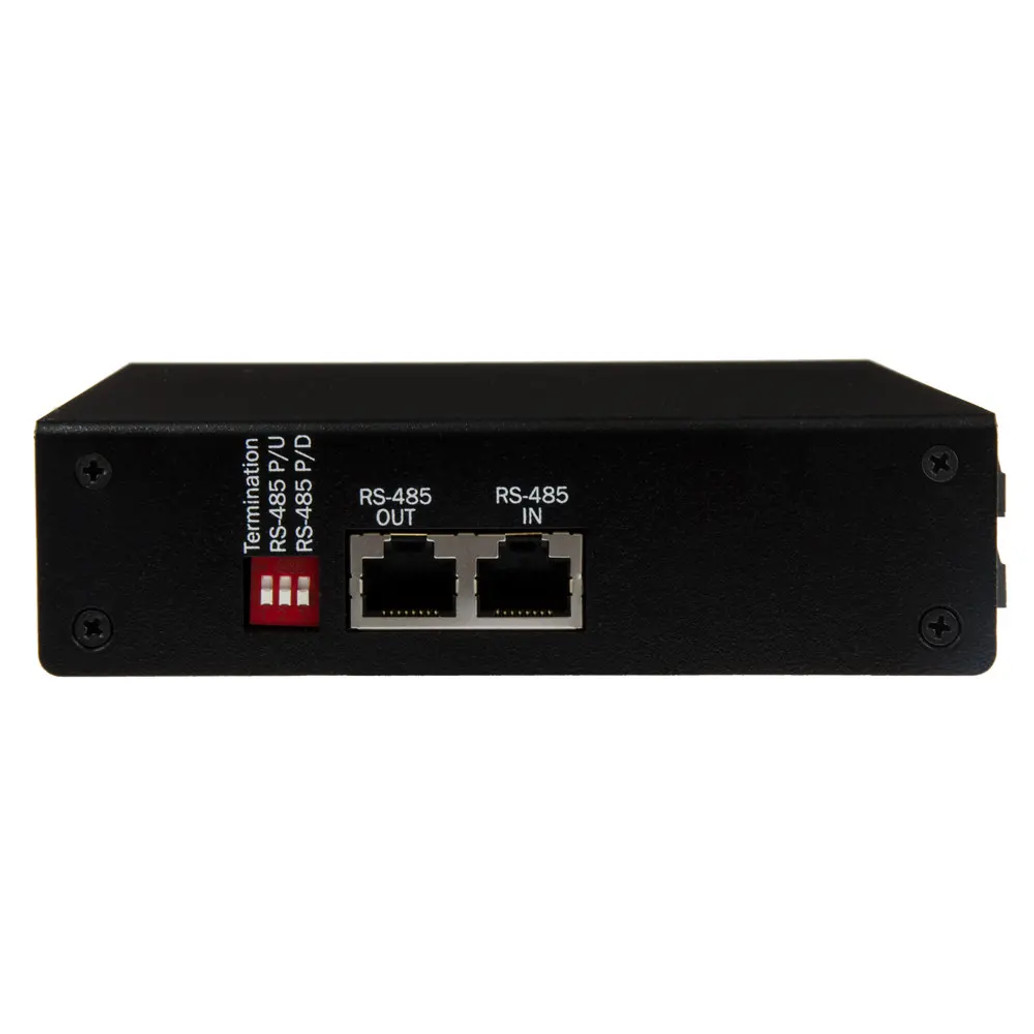

  • Expansion Capability – Supports additional SeaI/O N-series modules via RS-485 pass-through connectors

  • iOS App Ready – Sealevel Modbus Connect app for remote I/O testing and diagnostics

  • Enclosure Design – Durable and protected for industrial environments

Parameter Details
Model Number 580PoE-ROHS
Form Factor Enclosure
Host Interface Ethernet (10/100BaseT)
Communication Protocol Modbus TCP
Number of Inputs 32
Input Type Optically Isolated Dry Contact Inputs
Number of Outputs 0
Output Type N/A
Power Requirement 802.3af PoE Class 0 @ 3W (Typical)
Expansion Capability Supports additional SeaI/O N-Series Modules
Software Compatibility SeaMAX API (Windows/Linux), Modbus TCP
iOS App Support Sealevel Modbus Connect App
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -50°C to 105°C (-58°F to 221°F)
Humidity Range 10–90% RH, Non-Condensing
Dimensions (inches) 7.5" (L) x 5.1" (W) x 1.3" (H)
