SEALEVEL | PCI Express

COMM+232.PCIe

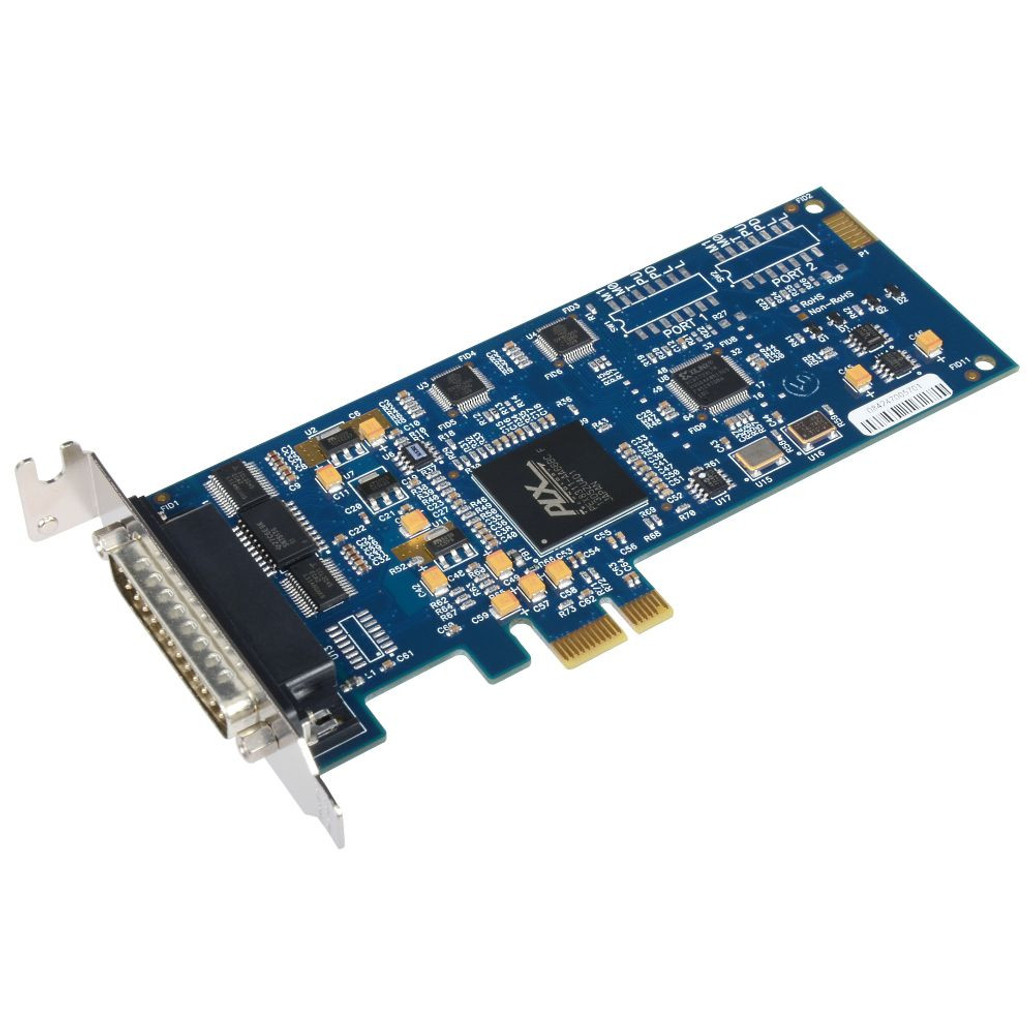

The COMM+232.PCIe is a low-profile PCI Express serial adapter providing two RS-232 serial ports, supporting high-speed data rates up to 921.6K bps. Ideal for data-intensive applications, it ensures reliable communication with a wide range of serial peripherals..

  • Detail
  • Special Features
  • Specification

The COMM+232.PCIe offers two RS-232 serial ports for high-performance, asynchronous communication. Using a 16C950 UART with 128-byte Tx/Rx FIFOs, it supports data rates up to 921.6K bps, making it ideal for high-speed data transfer in industrial automation and serial communication applications. The 9-bit framing support ensures compatibility with legacy 16550 serial devices, while the flexible clock prescaler allows support for both standard and non-standard baud rates. The SeaCOM software driver makes it easy to integrate with Microsoft Windows systems, and the included 36-inch cable connects to two DB9M connectors.



  • 2 RS-232 serial ports with modem control signals for maximum compatibility

  • 16C950 UART with 128-byte Tx/Rx FIFOs

  • Data rates up to 921.6K bps for fast and reliable communication

  • 9-bit framing support for compatibility with legacy 16550 applications

  • Flexible clock prescaler and 14.7456 MHz oscillator for a wide range of baud rates

  • PCI Express X1 interface, compatible with low-profile PCI Express slots

  • 36-inch cable terminating in 2 DB9M connectors

  • Standard profile bracket included for versatile installation

  • SeaCOM software driver for easy installation on Windows operating systems

  • Obsolete product; refer to 7202ec for the current version

  • Product Name: COMM+232.PCIe: PCIe to 2-Port RS-232 Async Serial Adapter

  • Host Interface: PCI Express X1

  • Number of Ports: 2

  • Max Data Rate: Exceeds 1 Mbps

  • Max Data Distance: 50 feet

  • Operating Temperature: 0°C to 70°C (32°F to 158°F)

  • Storage Temperature: -50°C to 105°C (-58°F to 221°F)

  • Communications Chip: Ultra high-speed UART (16C950)

  • Dimensions: 5.75" (L) x 2.54" (W)

  • Electrical Interface: RS-232

  • Serial Connector(s): DB9M

  • Humidity Range: 10-90% Relative Humidity (Non-Condensing)

  • Software: SeaCOM driver for Windows
