SEALEVEL | PCI Express

COMM+8.422.PCIe

Now includes NABL Calibration Certificate.

The 7802e PCI Express RS-422, RS-485 Serial Interface provides eight asynchronous serial ports for industrial automation, supporting data rates up to 921.6 Kbps. With field-selectable RS-422 and RS-485 modes, it’s ideal for long-distance device connections and multi-drop RS-485 networks..

  • Detail
  • Special Features
  • Specification

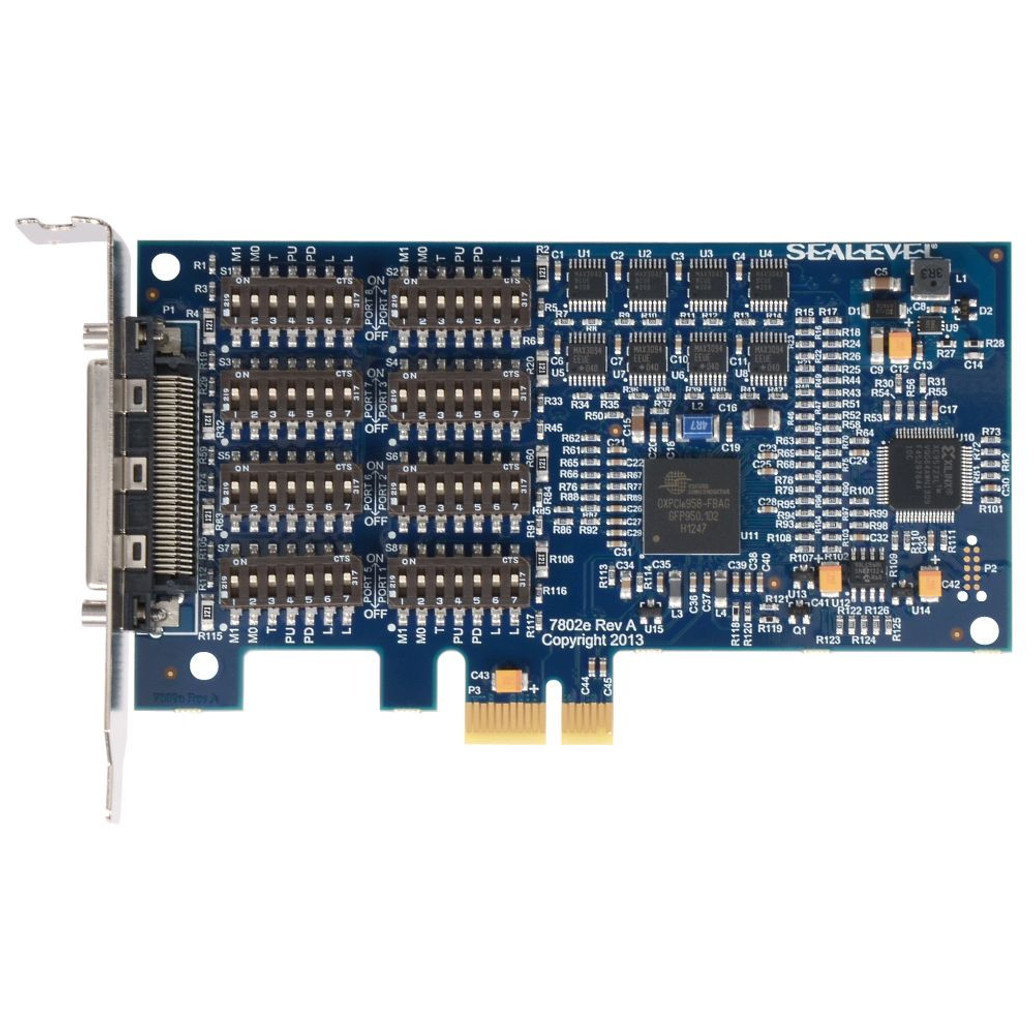

The 7802e PCI Express RS-422, RS-485 Serial Interface is a robust interface adapter designed for industrial automation and control applications. Offering eight serial ports, the device is configurable for RS-422 and RS-485, supporting high data rates up to 921.6 Kbps. RS-422 mode ensures reliable communication over long distances (up to 4000 feet), while RS-485 mode allows connection of up to 31 devices per port, making it ideal for complex, multi-drop networks. The auto-enable feature in RS-485 mode simplifies setup by automatically managing the transmitter, eliminating the need for application software control and reducing the risk of bus contention or data corruption. The card is compatible with XP, Vista, Windows 7, and Windows 8 through Sealevel's SeaCOM software

  • Eight asynchronous serial ports supporting RS-422 or RS-485

  • Data rates up to 921.6 Kbps

  • RS-422 mode supports long-distance connections (up to 4000 feet)

  • RS-485 mode supports up to 31 devices per port in multi-drop networks

  • Auto-enabled RS-485 transmitters for simplified integration

  • Compatible with XP, Vista, Windows 7, and Windows 8

  • Ships with low-profile PC bracket, with an optional standard profile bracket (order 7802eS)

  • Supports Sealevel SeaCOM software for easy installation

  • PCI Express 1.0a compliant

  • Product Name: 7802e PCI Express RS-422, RS-485 Serial Interface

  • Host Interface: PCI Express 1.0a

  • Number of Ports: 8

  • Electrical Interface: RS-422, RS-485

  • Max Data Rate: 921.6 Kbps

  • Max Data Distance: 4000 feet (RS-422)

  • Operating Temperature: 0°C to 70°C (32°F to 158°F)

  • Communications Chip: 16C954

  • Dimensions: 4.700" (L) x 2.536" (H)

  • Software: SeaCOM driver for XP, Vista, Windows 7, and Windows 8

  • Card Height: Low profile (standard profile bracket available with 7802eS)
