SEALEVEL | PCI Express

Ultra 530.LPCIe

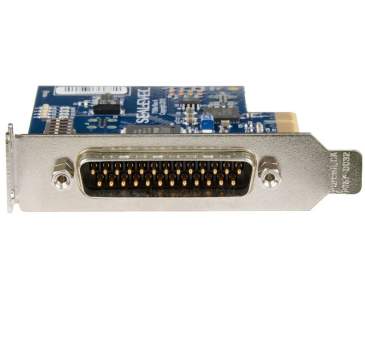

The 7106e Ultra 530.LPCIe is a low-profile PCI Express serial interface offering one configurable serial port for RS-232, RS-422, RS-485, or RS-530. Designed for ultra-fast data transfer, it supports baud rates exceeding 921.6 Kbps, making it ideal for data-intensive applications..

  • Detail
  • Special Features
  • Specification

The 7106e Ultra 530.LPCIe is a versatile, high-speed PCI Express adapter with a single serial port that can be configured for RS-232, RS-422, RS-485, or RS-530 communication standards. This adapter supports data rates exceeding 921.6 Kbps, making it perfect for applications requiring high throughput and reliable performance. The DIP switch interface allows for easy configuration, including electrical interface selection and line termination. The RS-485 mode automatically enables the transmitter in hardware, removing the need for software control and preventing data corruption. The SeaCOM software driver simplifies installation and operation on both Windows and Linux systems. The card fits in any low-profile PCI Express slot, and an optional standard profile bracket is available for full-height slots.

  • Single configurable serial port supporting RS-232, RS-422, RS-485, or RS-530

  • Ultra-high-speed UART with 256-byte Tx/Rx FIFOs

  • Flexible clock prescaler for supporting a wide range of baud rates

  • DIP switches for interface selection, echo suppression, and line termination

  • Slew rate limiting feature for minimizing electromagnetic interference

  • RS-485 transmitter auto-enable for Windows applications, eliminating software control

  • Modem control signals implemented in RS-232 mode for maximum compatibility

  • Compatible with Windows and Linux operating systems via SeaCOM software driver

  • Low-profile PCI Express X1 card with option for standard profile bracket

  • RoHS compliant

  • Product Name: 7106e - Ultra 530.LPCIe - BK-LP-DB25

  • Host Interface: PCI Express X1

  • Number of Ports: 1 (configurable for RS-232, RS-422, RS-485, or RS-530)

  • Max Data Rate: Exceeds 921.6 Kbps

  • Operating Temperature: 0°C to 70°C (32°F to 158°F)

  • Communications Chip: Ultra high-speed UART

  • Dimensions: Low-profile card (standard profile bracket available)

  • Electrical Interface: RS-232, RS-422, RS-485, RS-530

  • Modem Control: Implemented in RS-232 mode

  • Software: SeaCOM driver for Windows and Linux

  • Compliance: RoHS (2011/65/EU)
