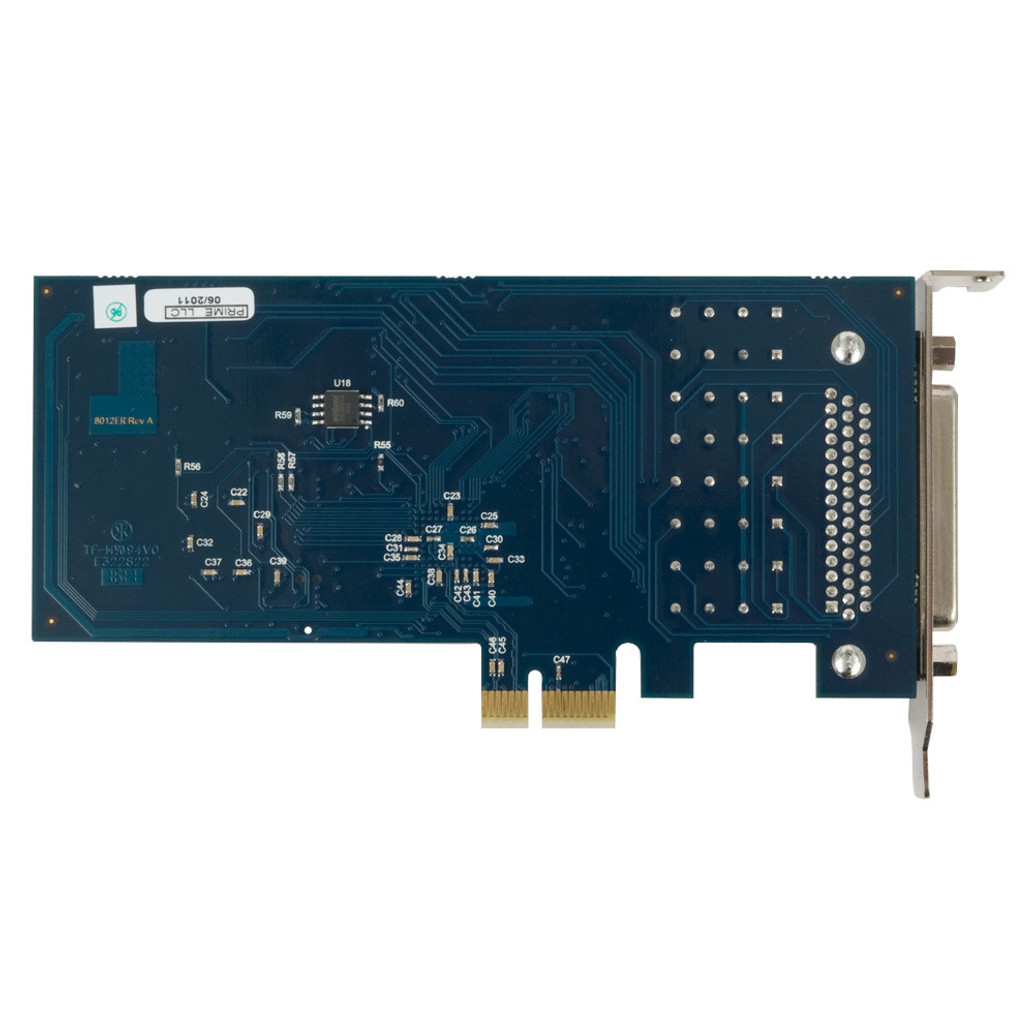

Image 3
SEALEVEL | PCI Digital

DIO-16.LPCIe

Rs. 33528.00

The DIO-16.LPCIe is a Low Profile PCI Express digital I/O adapter featuring 8 optically isolated inputs and 8 Reed relay outputs (SPST). It provides reliable industrial-grade digital I/O while protecting PCs and sensitive equipment from voltage spikes and ground loop currents..

  • Detail
  • Special Features
  • Specification

  • Isolation: Optical isolation protects the host PC from industrial voltage spikes and surges

  • Relay Outputs: High-quality, low-current SPST dry contact closures for reliable switching

  • Usage: Suitable for industrial automation, digital I/O monitoring, and control systems

  • Software: Includes SeaIO Classic drivers and Digital I/O Handbook for guidance

  • 8 optically isolated inputs, non-polarized, rated for 3–30 VDC

  • 8 Reed relay outputs with long-life, dry contact closures; normally open and close when energized

  • PCI Express X1 compliant, compatible with any low profile PCI Express slot

  • Standard profile bracket included for flexible installation

  • Sealevel SeaIO Classic software drivers for easy Windows installation and operation

  • Digital I/O Handbook included for accelerated development and logic guidance

  • Host Interface: PCI Express

  • Operating Temperature: 0°C to 70°C (32°F to 158°F)

  • Storage Temperature: -35°C to 100°C (-31°F to 212°F)

  • Humidity Range: 10–90% RH, non-condensing
