SEALEVEL | PCI Digital

TB07

Rs. 9271.00

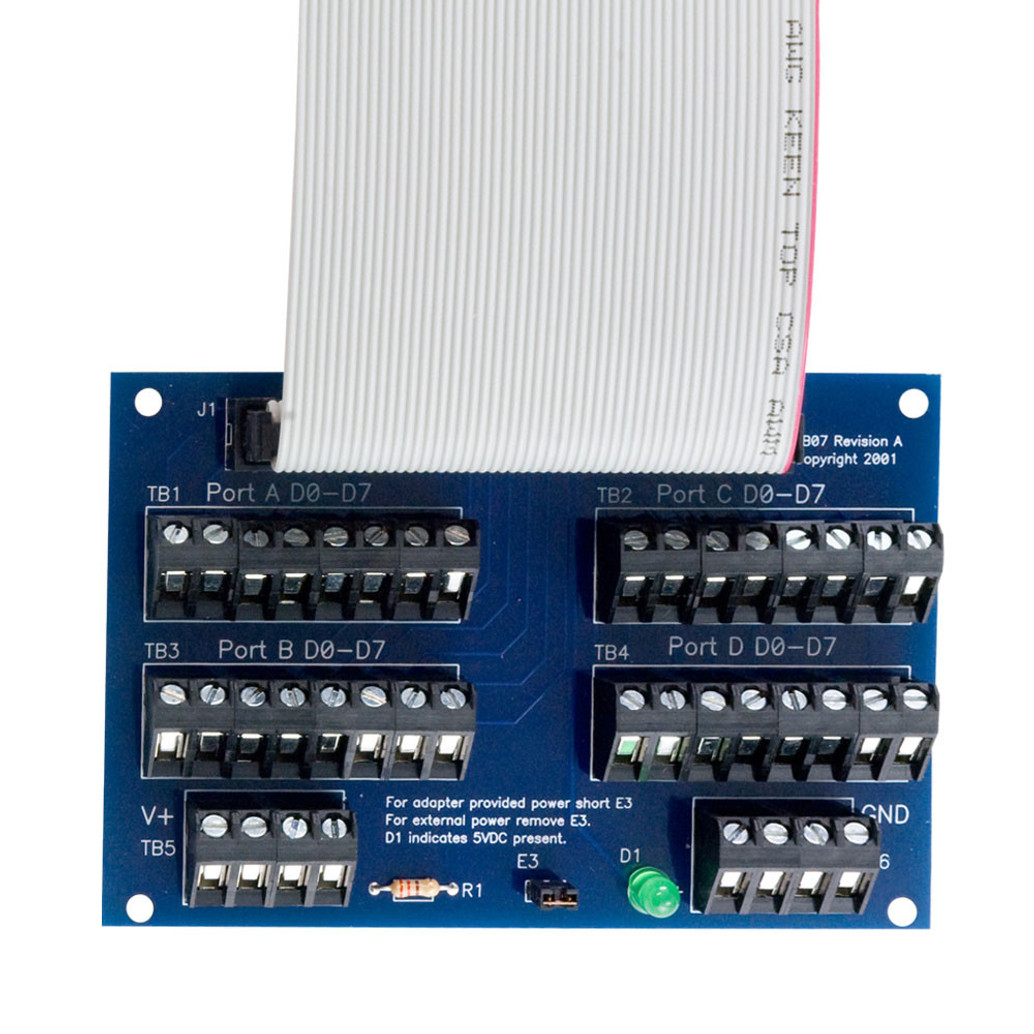

The TB07 Terminal Block is a versatile breakout board designed to provide 40 screw terminals for easy field connection of switches, relays, and sensors. It is compatible with Sealevel’s TTL PCI boards, offering simple interfacing for digital TTL signals, +5V, and ground..

  • Detail
  • Special Features
  • Specification

The TB07 Terminal Block simplifies connecting TTL signals and power for field devices. It provides 40 screw terminals, organized into four groups of 8 terminals, for easy access to TTL signals, voltage, and ground. This terminal block is specifically designed for use with Sealevel’s 32-channel TTL PCI board (Item# 8010) and supports various TTL devices. The +5V and Ground connections are available on dedicated 4-position screw terminals. This terminal block is also suitable for use with Sealevel’s 24, 48, and 96-channel TTL products, where the first three ports (A-C) provide TTL signal access.

  • Breakout for 50-pin ribbon cable to 40 screw terminals

  • Ideal for connecting TTL signals, +5V, and Ground

  • Four groups of 8 screw terminals for easy interfacing with 4 ports (A-D)

  • Compatible with Sealevel 32-channel TTL PCI board (Item# 8010)

  • Field connection for switches, relays, sensors, and other discrete devices

  • Two 4-position screw terminals for +5V and Ground connections

  • Designed for use with Sealevel TTL devices (24, 48, 96 channel TTL products)

  • Ships with terminal block only

Parameter Details
Model TB07-ROHS
Quantity 40 Screw Terminals
Length (in) 4.3
Width (in) 4.3
Height (in) 2.8
Dimensions (W×H) 4.3 × 2.8 inches
Compatible Devices Sealevel 32-channel TTL PCI board (Item# 8010)
Connections Four groups of 8 screw terminals, 2 four-position screw terminals for +5V and Ground
Shipping Includes Terminal block only
