MICROTEST

Impedance Analyzer 6632 Series 1/3/5/10/20/30/50MHz

Precision You Can Trust
NABL-Accreditied Calibration | Available on Request

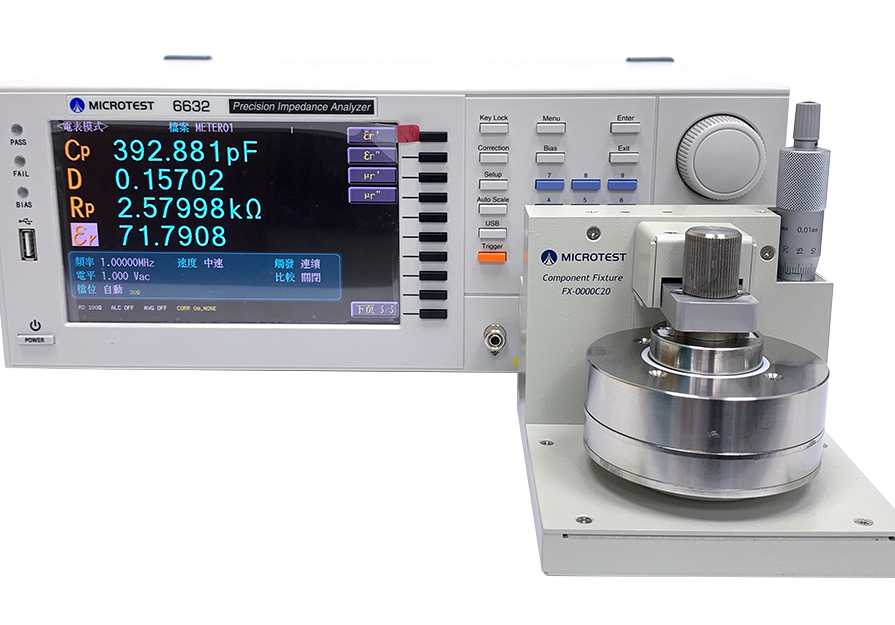

The MICROTEST 6632 Series Impedance Analyzer offers a wide frequency range from 10 Hz to 50 MHz with high accuracy, ultra-fast measurement (<3 ms), and versatile testing modes. It measures impedance, admittance, phase, reactance, resistance, capacitance, inductance, dissipation factor, quality factor, DC resistance, ESR, relative permittivity (εr), and permeability (μr). Ideal for component characterization, material testing, and automated measurement systems..

  • Detail
  • Special Features
  • Specification

The 6632 Series Impedance Analyzer is designed for high-speed, high-accuracy characterization of components and materials. It supports both numeric and graphical output formats and can interface with automated systems via LAN, USB, or GPIB. The analyzer measures a full range of parameters including |Z|, |Y|, θ, X, R, G, B, L, D, Q, DCR, C, ESR, εr, μr. Multiple models are available to match frequency requirements, from 1 MHz to 50 MHz. It also features list mode for automated multi-step measurements, BIN classification, and comparator functions, making it ideal for production testing and research labs.

  • Frequency Range: DC, 10 Hz to 1/3/5/10/20/30/50 MHz

  • Basic Accuracy: ±0.08% (typical ±0.05%)

  • Ultra-High Speed: Measurement <3 ms

  • AC Output Levels: 10 mV–2 Vrms (100 Ω), 10 mV–1 Vrms (25 Ω)

  • DC Bias Voltage: ±12 V built-in; external ±12 V/±40 V/±600 V/±2000 V

  • Output Impedance: 25 Ω / 100 Ω switchable

  • Automatic Level Control (ALC) for stable measurements

  • Measurement Modes: Meter, List, Sweep, and optional Equivalent Circuit Analysis

  • Cable Compensation: 0 / 0.5 / 1 / 2 m

  • Built-in Functions: Open/Short/Load correction, Comparator, BIN classification

  • Communication Interfaces: RS-232, Handler, LAN, USB Host, USB Device

  • Display: 7" TFT Color Screen (800×480)

  • Power Supply: 90–264 V AC, 47–63 Hz, 30 VA

  • Environment: 10–40 °C, 20–90% RH

Parameter Details
Model Series 6632
Frequency Range 10 Hz – 50 MHz (varies by model)
Frequency Resolution 100 mHz, 6-bit input
Frequency Accuracy ±0.01%
Basic Accuracy ±0.08% (typical ±0.05%)
AC Drive Level 10 mV–2 Vrms (100 Ω), 10 mV–1 Vrms (25 Ω)
AC Drive Accuracy ALC ON: 6% ±2 mV / ALC OFF: 10% ±2 mV
AC Current Level 200 µA – 20 mA, resolution 10 µA
DC Bias Voltage Built-in ±12 V; optional external ±12 V/±40 V/±600 V/±2000 V
Measurement Modes Meter, List, Sweep, optional Equivalent Circuit Analysis
Parameters Measured
Measurement Speed <3 ms
Built-in Storage 100 LCR settings, 50 list mode groups
Interfaces RS-232, LAN, USB Host/Device, Handler
Display 7" TFT, 800×480
Power Supply 90–264 V AC, 47–63 Hz, 30 VA
Dimensions (W×H×D) 336 × 147 × 340 mm
Weight 3.95 kg
Environment Temperature: 10–40 °C, Humidity: 20–90% RH
