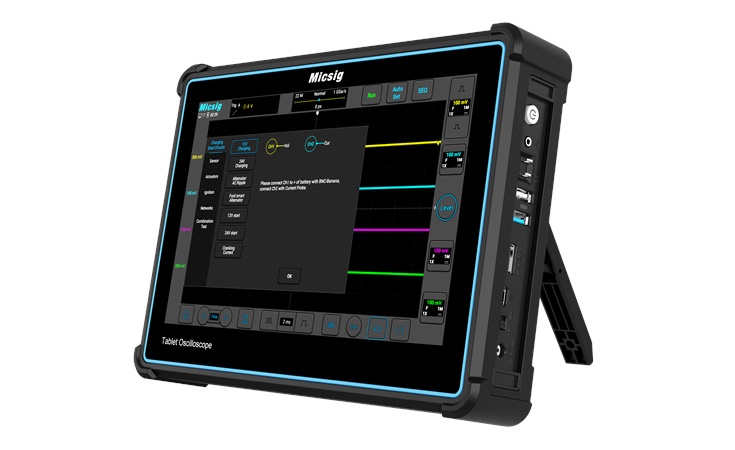

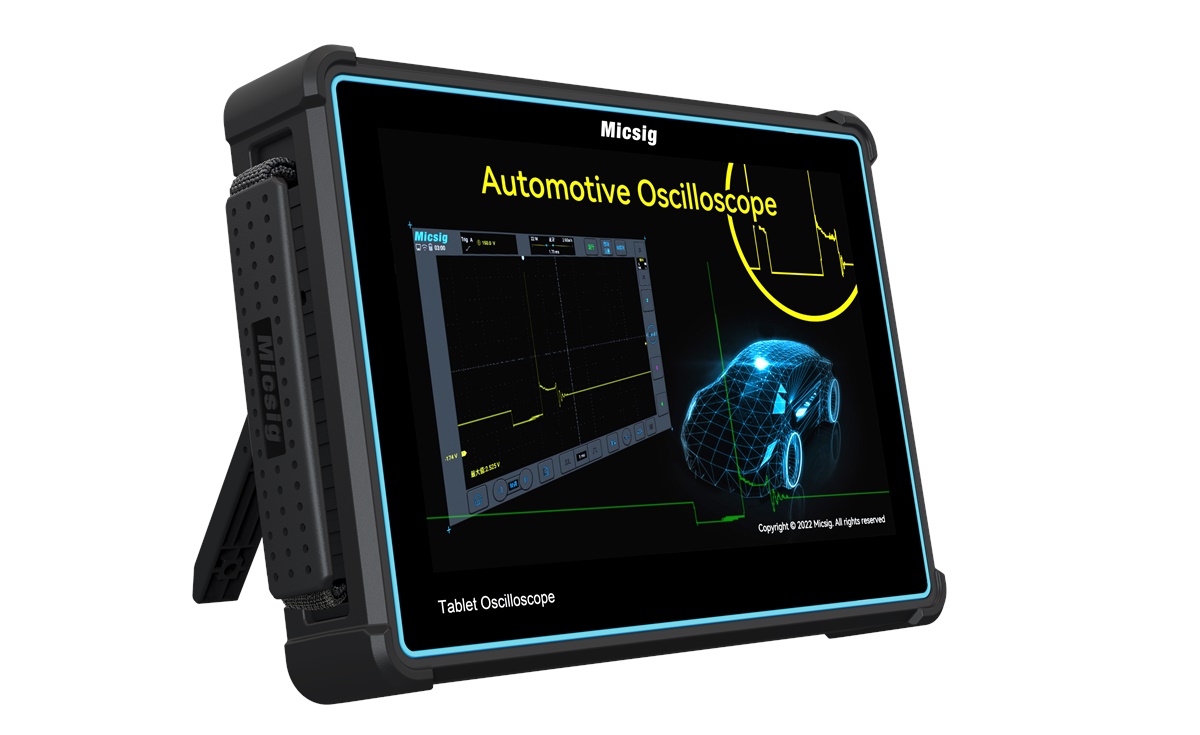

Micsig ATO2004 300MHz 4-Ch Standard Automotive Tablet Oscilloscope

Rs. 154990.00

Mobile 4 channel automotive-touch tablet DSO with 200 MHz bandwidth, 2 GSa/s and 220 Mpts memory depth and a 25.7 cm touchdisplay with a resolution of 1280×800 pixel. Serial decoders for I²C, SPI, UART, CAN and LIN are already included!.

  • Detail
  • Special Features
  • Specification

The Micsig ATO2004 is part of the ATO series of Automotive Tablet Oscilloscopes, offering a robust mobile solution for signal testing and analysis. Designed with 4 analog channels, it delivers a 200 MHz bandwidth and 2 GSa/s sampling on a single channel, making it ideal for high-speed, high-resolution waveform analysis.

Built on the SigtestUITM system, this tablet oscilloscope provides stable performance during extended diagnostic operations. The device is powered by a long-life 7500mAh Li-ion battery and features a 10.1" industrial-grade touch display that enhances the overall user experience.

This unit is engineered for a wide range of automotive diagnostics including testing of ignition systems, sensors, actuators, communication buses (CAN, CAN FD, LIN, FlexRay, K-line), and charging/start circuits.



  • Advanced Touchscreen Control: Features a 10.1-inch full-touch TFT LCD display with 1280×800 resolution for intuitive control and easy navigation.

  • High Bandwidth & Memory Depth: Offers 200 MHz bandwidth, 2 GSa/s sampling rate, and 220 Mpts memory depth for precise signal capture.

  • Compact & Portable Design: Sleek 5 cm form factor and built-in rechargeable battery make it ideal for mobile diagnostics.

  • SigtestUITM Multitasking OS: Ensures long-term stable performance and multitasking efficiency.

  • Serial Bus Decoding Included: Supports decoding for RS-232/UART, I²C, SPI, CAN, CAN FD, and LIN out of the box.

  • Advanced Trigger System: Includes multiple trigger types like edge, pulse width, slope, runt, timeout, video, logic, and N-edge.

  • Flexible Input Options: Offers both 1MΩ and 50Ω input impedance with adjustable offset and AC/DC/GND coupling.

  • Envelope & Averaging Modes: Supports selectable envelope and averaging functions for signal stability and clarity.

  • Wi-Fi & HDMI Interface: Comes with Wi-Fi, USB 3.0/2.0, USB-C, grounding terminal, HDMI, and trigger out ports.

Vertical System

  • Input Coupling: DC, AC, GND

  • Bandwidth Filter: Full bandwidth, Low pass (to 30kHz)

  • Input Impedance: 1MΩ ±1% || 50Ω ±1%

  • Vertical Resolution: 8 bits

  • Input Sensitivity: 1 mV/div ~ 10 V/div (1MΩ), 1 mV/div ~ 1 V/div (50Ω)

  • DC Gain Accuracy: ≤ ±2.0% (>5mV/div), ≤ ±3.0% (≤2mV/div)

  • Ch-to-Ch Isolation: >40dB (≤100 MHz), >35dB (>100 MHz)

  • Max Input Voltage: CAT I 300Vrms / 400Vpk (1MΩ), 5Vrms (50Ω)

  • Offset Range: ±2.5V (<500mV/div), ±120V (≥500mV/div)

Horizontal System

  • Time Base: 1ns/div ~ 1ks/div

  • Clock Drift: ≤ ±5 ppm/year

  • Time Base Accuracy: ±20 ppm

  • Sampling Rate: 2 GSa/s (1 CH), 1 GSa/s (All CH)

  • Max Memory Depth: 220 Mpts

  • Average & Envelope Modes: 2–256 levels

Trigger System

  • Modes: Auto, Normal, Single

  • Coupling: DC, AC (70Hz), High (40kHz), Low (40kHz), Noise (10MHz)

  • Holdoff Range: 200ns ~ 10s

  • Types: Edge, Pulse Width, Slope, Runt, Timeout, Video, Logic, N-Edge

  • Decoding Support: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C
