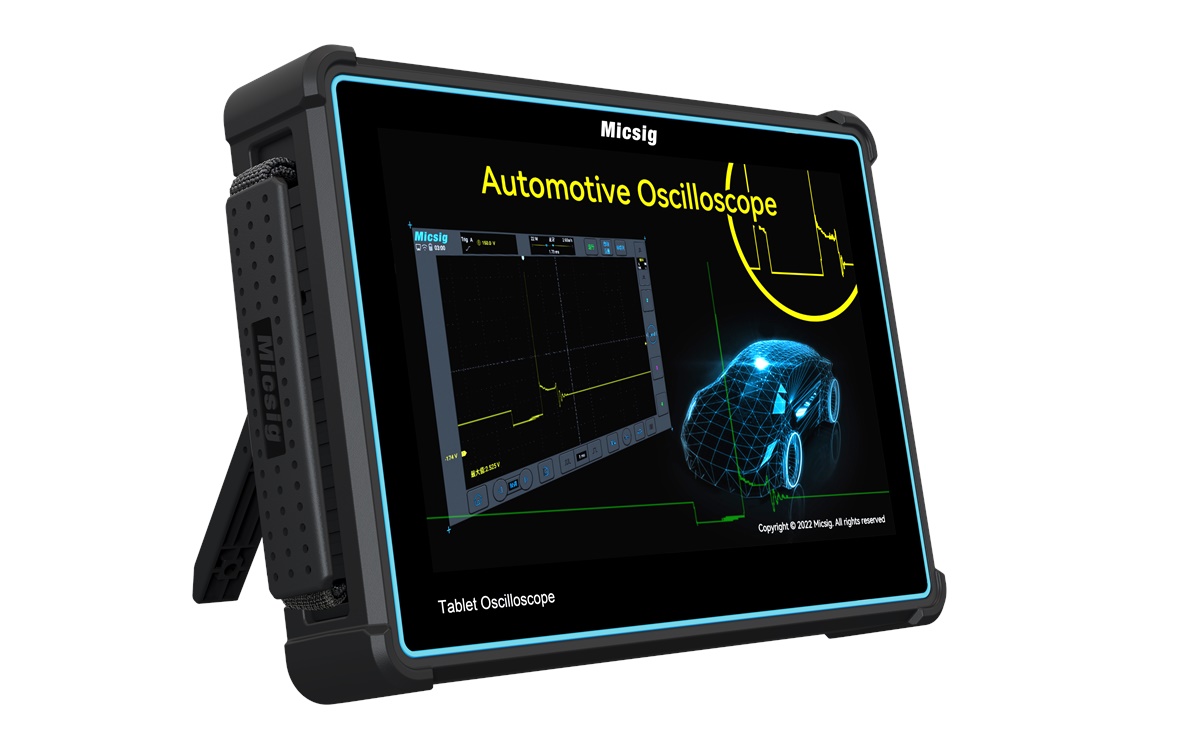

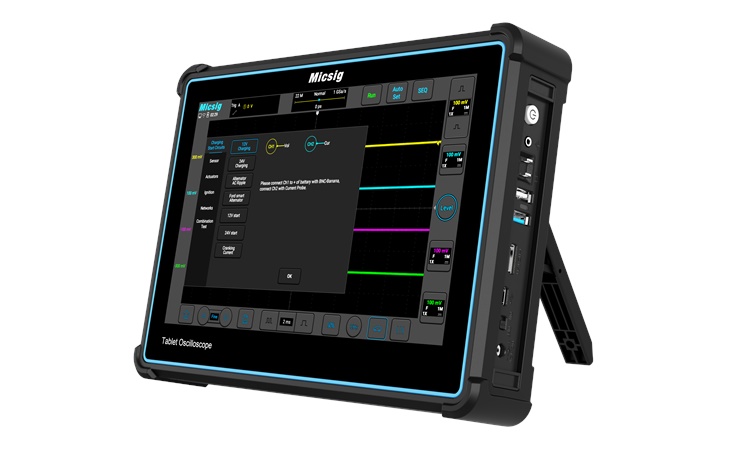

Micsig ATO3002 300MHz 2-Ch Standard Automotive Tablet Oscilloscope

Now includes NABL Calibration Certificate.
Rs. 154990.00

Mobile 2-channel automotive-touch tablet DSO with 300 MHz bandwidth, 2 GSa/s sampling rate, 220 Mpts memory depth, and a 25.7 cm full-touch display (1280×800 resolution). Comes standard with serial decoding for I²C, SPI, UART, CAN, and LIN — ideal for fast automotive and industrial diagnostics..

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

The Micsig ATO3002 is an advanced 2-channel tablet oscilloscope designed for mobile diagnostic work. Whether you're troubleshooting ignition systems, testing automotive sensors, or analyzing industrial signals, this 300 MHz scope delivers. The SigtestUITM OS ensures stable performance while deep memory and intuitive UI make it a favorite among professionals.

It also offers protocol decoding for major serial interfaces and supports waveform search, multiple trigger types, and digital filtering — all on a robust and responsive 10.1" touch display. The compact 5 cm thickness and built-in lithium battery make this scope ideal for engineers on the move.

  • Full Touchscreen Operation – 10.1" capacitive touchscreen for intuitive navigation and control.

  • High Sampling Rate & Bandwidth – Up to 2 GSa/s and 300 MHz bandwidth for high-precision measurements.

  • Deep Memory – 220 Mpts memory depth ensures long waveform acquisition without data loss.

  • Built-in Serial Decoding – Supports I²C, SPI, UART, CAN, LIN — no extra options required.

  • Advanced Triggering – Offers edge, logic, pulse width, runt, and timeout triggering for precise signal capture.

  • Battery Powered Portability – 7500 mAh battery enables use anywhere without external power.

  • Digital Filtering & Averaging – Includes bandwidth limit, envelope, and averaging modes.

  • Versatile Connectivity – Wi-Fi, USB 3.0/2.0, USB-C, HDMI, and trigger out ports included.

Vertical System

  • Input Coupling: DC, AC, GND

  • Bandwidth Filter: Full bandwidth, Low pass (to 30 Hz)

  • Input Impedance: 1 MΩ ±1% || 50 Ω ±1%

  • Vertical Resolution: 8 bits

  • Vertical Divisions: 10

  • Input Sensitivity Range:
    1 mV/div ~ 10 V/div (1 MΩ)
    1 mV/div ~ 1 V/div (50 Ω)

  • DC Gain Accuracy: ≤ ±2.0% (≥5 mV/div), ≤ ±3.0% (≤2 mV/div)

  • Channel-to-Channel Isolation: >40 dB (≤100 MHz), >35 dB (>100 MHz)

  • Offset Range: ±2.5 V (<500 mV/div), ±120 V (≥500 mV/div)

  • Max Input Voltage: 300 Vrms / 400 Vpk (1 MΩ), 5 Vrms (50 Ω)

Horizontal System

  • Time Base: 1 ns/div ~ 1 ks/div

  • Vertical Divisions: 11

  • Clock Drift: ≤ ±5 ppm/year

  • Time Base Accuracy: ±20 ppm

  • Sampling Rate: 2 GSa/s (1 CH), 1 GSa/s (All CH)

  • Max Memory Depth: 220 Mpts

  • Segmented Storage: Not supported

  • Averaging: 2–256

  • Envelope Mode: 2–256, ∞

Trigger System

  • Modes: Auto, Normal, Single

  • Coupling: DC, AC (70 Hz), High Freq (40 kHz), Low Freq (40 kHz), Noise (10 MHz)

  • Holdoff Range: 200 ns ~ 10 s

  • Types: Edge, Pulse Width, Logic, N-Edge, Runt, Slope, Timeout, Video

  • Bus Decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C
