Micsig ATO3004 300MHz 4-Ch Standard Automotive Tablet Oscilloscope

Now includes NABL Calibration Certificate.
Rs. 174990.00

Mobile 4 channel automotive-touch tablet DSO with 300 MHz bandwidth, 2 GSa/s and 220 Mpts memory depth and a 25.7 cm touchdisplay with a resolution of 1280×800 pixel. Serial decoders for I²C, SPI, UART, CAN and LIN are already included!.

Quantity:
- +
Product added to cart successfully
  • Detail
  • Special Features
  • Specification

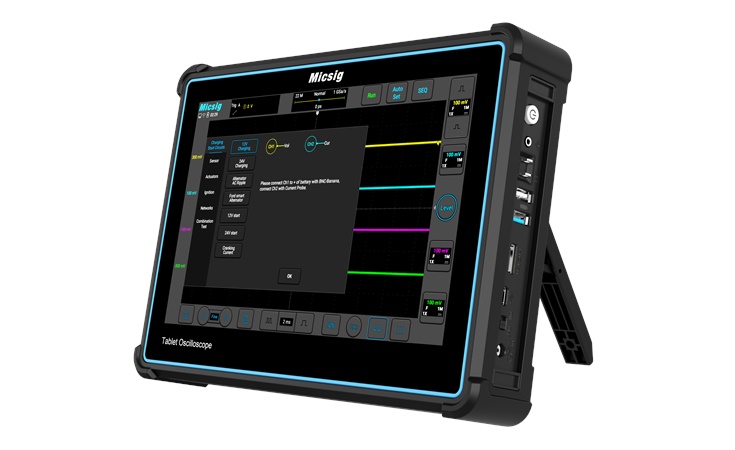

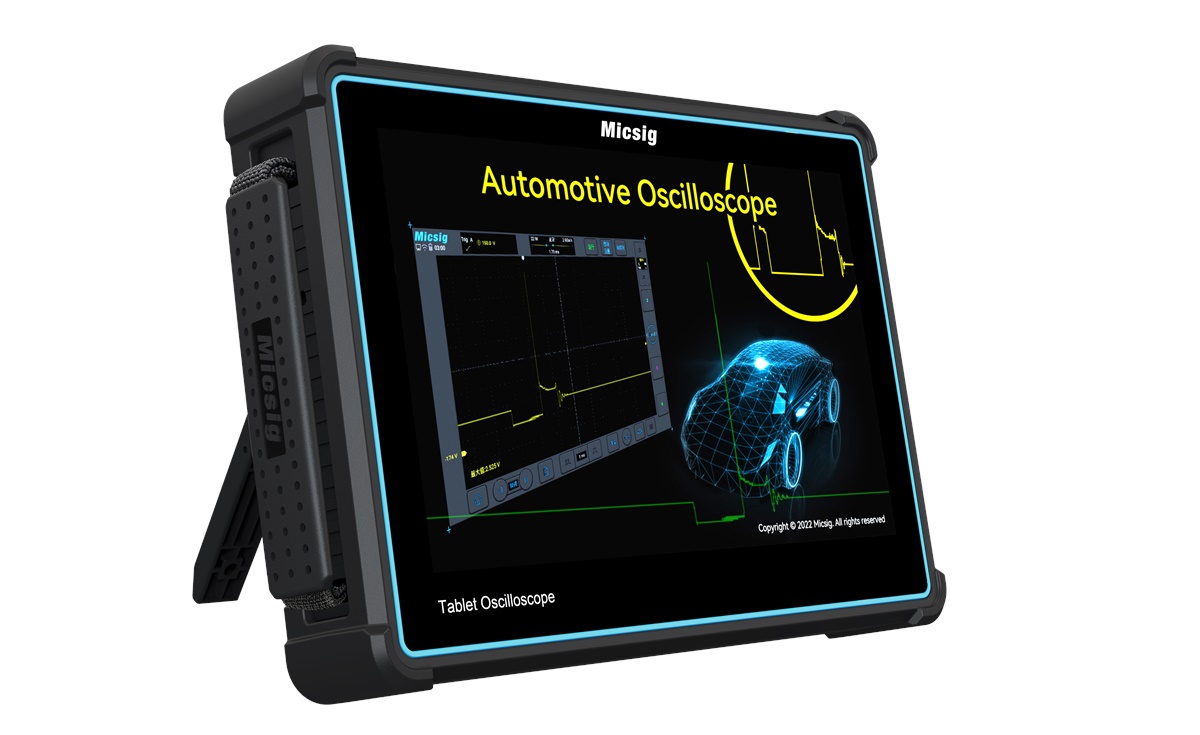

The Micsig ATO3004 Plus is part of the advanced ATO series Automotive Tablet Oscilloscope line, combining the functionality of a benchtop oscilloscope with the portability of a tablet. Designed with automotive engineers and mobile technicians in mind, it provides 4 analog channels, 300 MHz bandwidth, and advanced serial protocol decoding capabilities. Its 10.1" touchscreen interface ensures intuitive operation, while the SigtestUITM multitasking system provides stability and responsiveness.

The oscilloscope supports comprehensive measurement and mathematical operations, including triggering, decoding, waveform math, digital filtering, and signal visualization. With a rugged, slim form factor and a built-in high-capacity battery, the ATO3004 is optimized for both lab use and mobile field work.

  1. Full Touch Operation: Equipped with a 10.1-inch 1280x800 pixel capacitive touchscreen and powered by SigtestUI™ multitasking system for smooth, responsive performance.

  2. Compact and Portable: At only 5 cm thick with a built-in battery, it’s ideal for field and automotive diagnostics.

  3. High-Speed Sampling: Offers up to 2 GSa/s real-time sampling for a single channel and 1 GSa/s across all four channels.

  4. Deep Memory Depth: Supports up to 220 Mpts memory depth, enabling capture and analysis of long signal sequences.

  5. Advanced Decoding Support: Built-in protocol decoding for RS-232/422/485/UART, I²C, SPI, CAN, CAN FD, and LIN.

  6. High Waveform Capture Rate: Capture transient and infrequent signals efficiently with up to 300,000 wfms/s.

  7. Versatile Trigger Options: Includes Edge, Pulse Width, Logic, Runt Pulse, Timeout, Slope, and Video triggers.

  8. Flexible Filtering & Bandwidth Options: Built-in digital filters and bandwidth limiting (Low pass to 30Hz).

  9. Dual Input Impedance: Supports both 1MΩ and 50Ω input impedance for diverse signal environments.

  10. Battery Powered: 7500mAh Li-ion battery enables operation without external power.

Vertical System

  • Input Coupling: DC, AC, GND

  • Bandwidth Filter: Full bandwidth, Low pass (to 30Hz)

  • Input Impedance: 1MΩ ±1% || 50Ω ±1%

  • Vertical Resolution: 8 bits

  • Vertical Divisions: 10 divisions

  • Input Sensitivity: 1 mV/div ~ 10 V/div (1MΩ), 1 mV/div ~ 1 V/div (50Ω)

  • DC Gain Accuracy: ≤ ±2.0% (>5mV/div), ≤ ±3.0% (≤2mV/div)

  • Channel-to-Channel Isolation: >40dB (≤100MHz), >35dB (>100MHz)

  • Offset Range: ±2.5V (<500mV/div), ±120V (≥500mV/div)

  • Max Input Voltage: CAT I 300 Vrms / 400 Vpk (1MΩ), 5 Vrms (50Ω)

Horizontal System

  • Time Base: 1ns/div ~ 1ks/div

  • Horizontal Divisions: 11 divisions

  • Clock Drift: ≤ ±5 ppm/year

  • Time Base Accuracy: ±20 ppm

  • Sampling Rate: 2 GSa/s (1 CH), 1 GSa/s (All CH)

  • Max Memory Depth: 220 Mpts

  • Segmented Storage: Not supported

  • Average: Selectable (2–256)

  • Envelope: Selectable (2–256, ∞)

Trigger System

  • Trigger Modes: Auto, Normal, Single

  • Trigger Coupling: DC, AC (70Hz), HF (40KHz), LF (40KHz), Noise (10MHz)

  • Trigger Holdoff: 200ns ~ 10s

  • Trigger Types: Edge, Pulse Width, Logic, N Edge, Runt Pulse, Slope, Timeout, Video

Bus Decoding (Standard)

  • RS-232/422/485/UART

  • CAN, CAN FD

  • LIN

  • SPI

  • I²C
