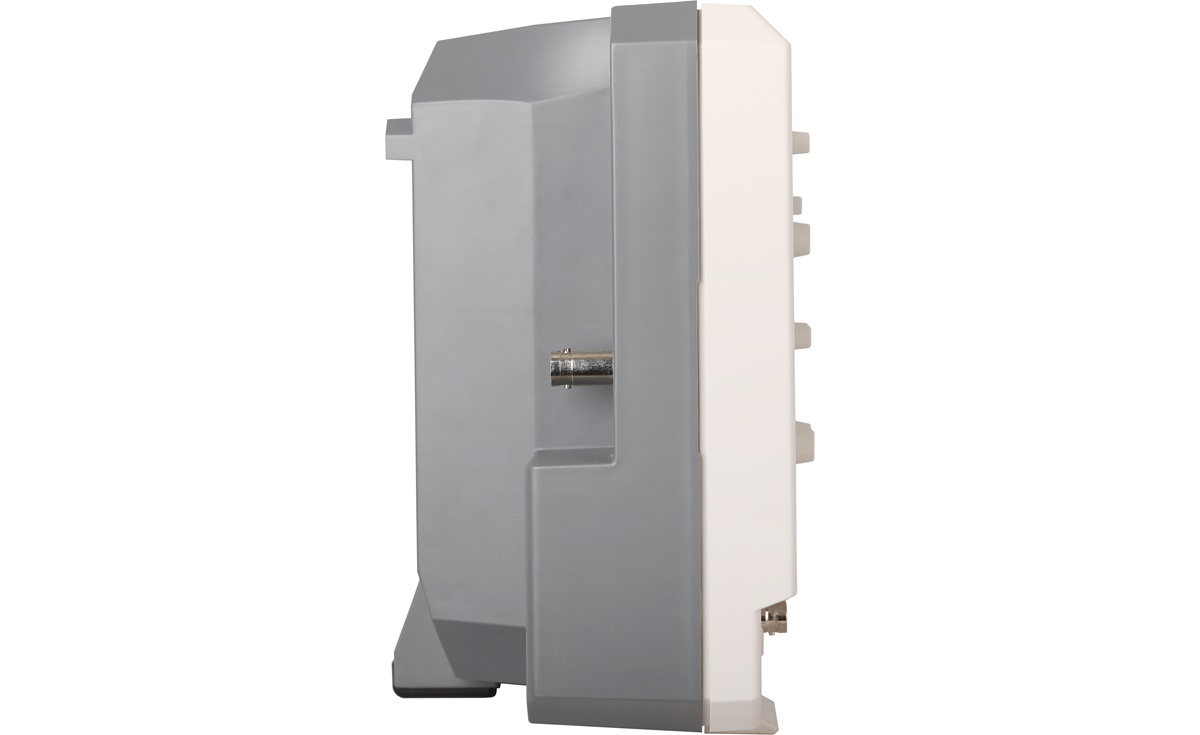

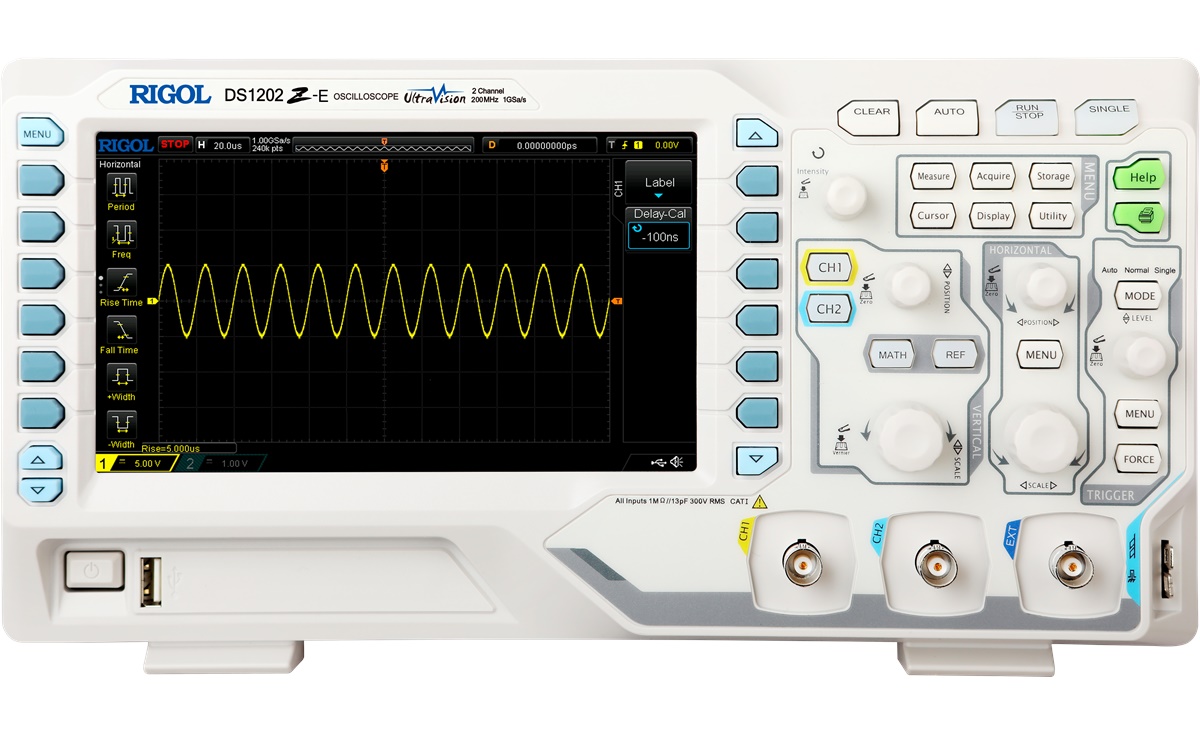

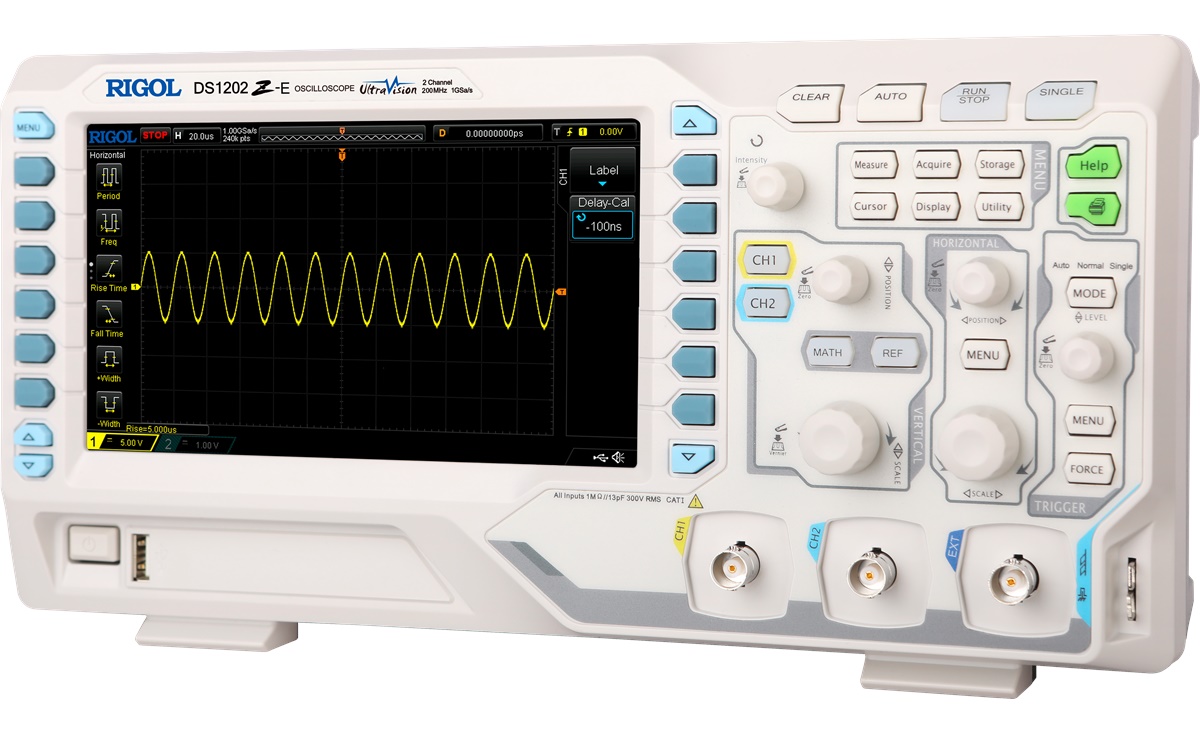

Rigol DS1102Z-E

Rs. 41064.00

High quality 2 channel oscilloscope with 100 MHz bandwidth, 1 GSa/s and up to 24 Mpts memory depth and 17.8 cm LCD display (800×480 pixel). Now includes NABL Calibration Certificate..

  • Detail
  • Special Features
  • Specification

The Rigol Rigol DS1102Z-E is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 100 MHz.

The Rigol DS1102Z-E is equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.

This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals.

The Rigol DS1102Z-E has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quicky. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course.

The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals.

The signal curves, the FFT display, and other functions can be shown simultaneously on the display.

Model DS1054Z DS1074Z Plus DS1074Z-S Plus DS1104Z Plus DS1104Z-S Plus DS1102Z-E
Channels 4 4 4 4 4 2
Bandwidth 50 MHz 70 MHz 70 MHz 100 MHz 100 MHz 100 MHz
Sampling Rate 1 GSa/s 1 GSa/s 1 GSa/s 1 GSa/s 1 GSa/s 1 GSa/s
Memory Depth 24 Mpts 24 Mpts 24 Mpts 24 Mpts 24 Mpts 24 Mpts
2 CH Waveform-Generator X X Standard X Standard X

Deeper Memory

The Rigol Rigol DS1102Z-E oscilloscopes can store up to 24 million measurement points. You can zoom into a selected part of the captured waveforms to get more details and scroll within the measurement points.

Fast Capturing

The high sampling rate (up to 1 GSa/s) of the Rigol DS1102Z-E oscilloscopes and the large memory makes it possible to record up to 30,000 waveforms per second.

Realtime waveform record, replay, analysis

The recorded waveforms can be conveniently recorded, displayed and analyzed.

Multi-Level Intensity Grading Display

“Multi-Level Grading Intensity” display, extensive signal characteristics with a very large number of measurement values can also be displayed completely.

Extensive Trigger OptionsThe Rigol DS1102Z-E oscilloscopes offer extensive trigger options for a professional use. The special triggers Windows, Nth Edge, Delay, Timeout, Runt, RS232/UART, I²C und SPI are available as standard accessories

Serial bus decoding function

With the Rigol DS1102Z-E serial data packages of different serial bus systems can be analyzed, decoded, and displayed directly as byte values. Supported protocols are: RS232/UART, I²C, and SPI.

Advanced Math

The Rigol DS1102Z-E comes with a modern and advanced math system which lets it solve complicated signal calculations quite simply with predefined formulas.

Masked Pass/Fail-Tests

Pass/fail testing can be used for troubleshooting in various environments like communication networks.

General Data Digital Oscilloscope Rigol DS1102Z-E
Display 17,8 cm (7″) WVGA-TFT-LCD
Resolution 800 × 480 Pixel
Interface USB-host for i.e. USB sticks



USB-Device for a PC connection or USB Pict-Bridge printer interface

LAN for network connectivity (LXI compilant)

GPIB (IEE-488, General Purpose Interface Bus) using the optional USB-GPIB Module

Trigger- and Calibration output
Size (W × H × D) 313 mm × 160 mm × 122 mm
Weight 3.0 kg
Supported operation systems Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit)
Oscilloscope Functions Digital Oscilloscope Rigol DS1102Z-E
Channels 2
Real-time sample rate 1 GSa/s realtime (1 Channel)



500 MSa/s realtime (2 Channels)
Bandwidth 100 MHz
Sampling Modes Normal, average, peak detect
Mathematics userdefined, FFT (Fast Fourier Transform)
FFT windows Rectangle, Hanning, Hamming, Blackman
Signal Bus Decoding RS232/UART (optional), I²C (optional), SPI (optional)
Signal Digital Oscilloscope Rigol DS1102Z-E
Input DC/AC Coupling, CAT I 300 Vrms, CAT II 100 Vrms
Real-time sample rate up to 1 GSa/s realtime
Time base 2 ns/div – 50 s/div
Memory max. 24M Mpts (1 Channel)



max. 12M Mpts. (2 Channels)
Vertical Digital Oscilloscope Rigol DS1102Z-E
Analog digital converter (A/D) 8 Bit
Sensitivity range (V/div) 1mV/div – 10 V/div
Offset range 1mV/div – 10 V/div
Trigger Digital Oscilloscope Rigol DS1102Z-E
Trigger Channel 1/2, Ext, Ext / 5, AC Line
Signal system and line/field frequency



(Video Trigger mode)

 PAL, NTSC, SECAM



480P, 576P HDTV standards
Trigger function Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay
Measurement Digital Oscilloscope Rigol DS1202Z-E
Cursor measurement Manual, Track and Auto Measure modes
Auto measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot,



Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width,

Positive, Duty Cycle, Negative Duty Cycle, Delay1-2 (rise), Delay1-2 (fall),

Phase1-2 (rise), Phase1-2 (fall)
