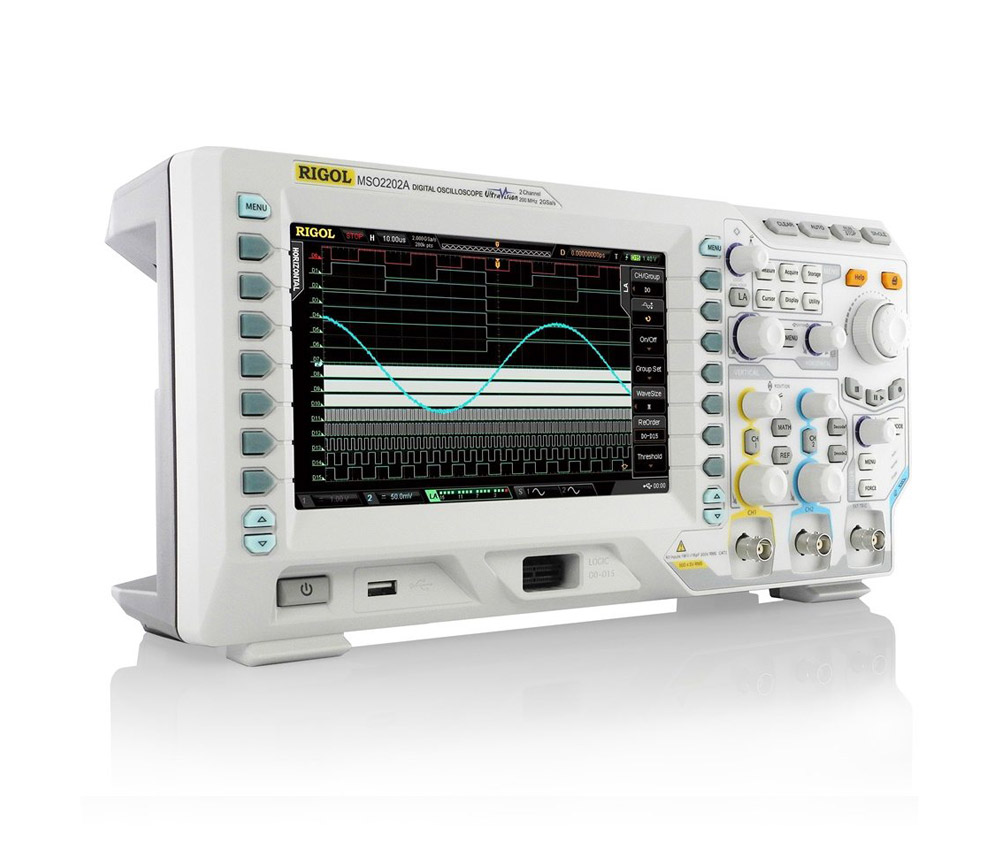

Rigol DS2102A

Rs. 72393.00

High quality 2 channel DSO with 100 MHz bandwidth, 2 GSa/s and 56 Mpts memory depth. All options for free! Get all MSO/DS2000A Options Bind, including MEM_DS2000 AT-DS2000 SD-DS2000 CAN-DS2000 for free with the purchase of a new device.(Valid until 31.12.2025) Now includes NABL Calibration Certificate. 3 years warranty.

  • Detail
  • Special Features
  • Specification

The Rigol DS2102A is a high-quality 2-channel digital storage oscilloscope that offers precise signal analysis with a real-time sample rate of 2 GSa/s and a bandwidth of 100 MHz. Perfect for professionals and engineers, this oscilloscope provides superior signal clarity and reliability, enabling you to capture both real-time and repetitive signals with ease.

Equipped with a large 8-inch TFT color display, the DS2102A offers clear visualization of complex signals. Its intuitive user interface makes it easy for users to navigate through the settings, providing an optimal solution for waveform analysis and debugging. Whether you need to monitor high-speed signals or analyze waveforms over extended periods, the Rigol DS2102A provides the performance you need.

With a memory depth of 56 Mpts and a waveform capture rate of up to 50,000 wfms/s, this oscilloscope ensures that even the fastest signals are accurately recorded and displayed. It also supports serial bus triggering and decoding for common protocols like RS232, I²C, and SPI, making it a versatile tool for a variety of testing environments.

  • Great Accuracy, Low Noise Input: Captures small signals with vertical resolution starting from 500 µV/div, measuring even 1 mV square wave signals.

  • Perfect Frequency Response: Achieves a rise time of 1.4 ns with less than 5% overshoot, ensuring high-frequency accuracy.

  • Deeper Memory (14 Mpts / 56 Mpts): Stores up to 14 million data points for detailed waveform analysis, expandable up to 56 Mpts with optional memory.

  • Real-Time Waveform Capture: Records up to 50,000 waveforms per second for in-depth analysis.

  • Multi-Level Intensity Grading Display: Displays complex signal data with multiple measurement values for better visibility.

  • Serial Bus Triggering: Built-in support for RS232, I²C, and SPI protocols for efficient data analysis.

  • Serial Bus Decoding: Optional SD-DS2 Decoding Kit for analyzing and displaying serial data packages directly as byte values.

  • Comprehensive Trigger Functions: Includes Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, and FlexRay triggers.

  • Runt Trigger: Allows triggering on dwarf pulses, providing precise detection of incomplete signals.

  • Advanced Math Functions: Includes modern math systems to solve complicated signal calculations with user-defined formulas.

  • Masked Pass/Fail Testing: Ideal for troubleshooting in environments like communication networks.

  • Auto Measurements with Statistics: Measures up to five parameters simultaneously and provides detailed statistics (max, min, average).

  • Arbitrary 2-Channel Waveform Generator: Integrated waveform generator for signals up to 25 MHz with a sample rate of 200 MSa/s.

  • Integrated 16-Channel Logic Analyzer: Analyze up to 16 digital channels with ease, supported by Ultra Vision mode for detailed data analysis.

General Data

  • Display: 20.32 cm (8") WVGA-Color-LCD

  • Resolution: 800 × 480 Pixel

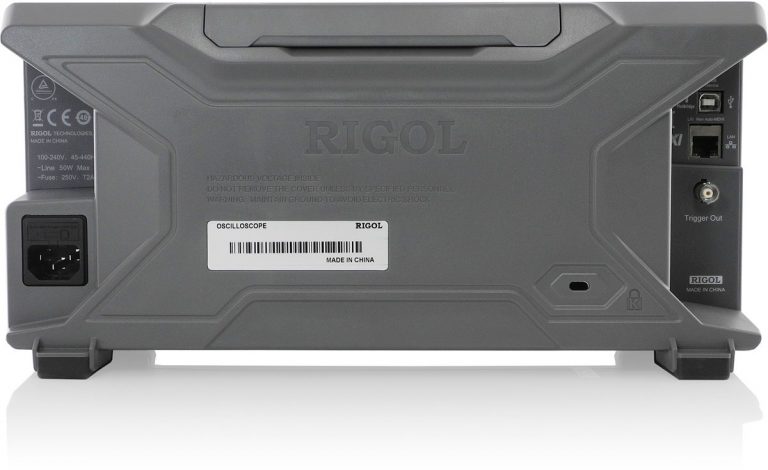

  • Interfaces: USB-host, USB-device, LAN (LXI compliant), GPIB (optional via USB-GPIB)

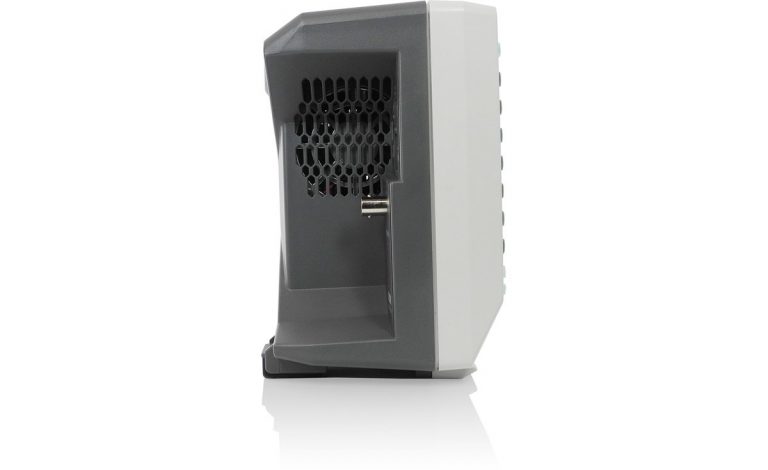

  • Size (W × H × D): 362 mm × 180 mm × 131 mm

  • Weight: 3.9 kg

Oscilloscope Functions

  • Channels: 2

  • Real-Time Sample Rate: 2 GSa/s (1 Channel), 1 GSa/s (2 Channels)

  • Bandwidth: 100 MHz

  • Memory Depth: 14 Mpts (1 Channel), 56 Mpts (1 Channel with optional memory module MEM-SD2)

Vertical

  • Analog Digital Converter (ADC): 12-bit (≥ 5 µs/div), 8-bit (≤ 2 µs/div)

  • Sensitivity Range (V/div): 500 µV/div to 5 V/div

  • Offset Range: ±2.5V (≤500 mV/div), ±120V (≥500 mV/div)

Trigger Functions

  • Trigger Modes: Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay

  • Trigger Coupling: DC, AC (70Hz), High Frequency (40KHz), Low Frequency (40KHz), Noise (10MHz)

Measurement

  • Auto Measurements: Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Rise Time, Fall Time, Frequency, Period, Duty Cycle, Phase, etc.

Waveform Generator

  • Channels: 2

  • Max Frequency: Sine: 25 MHz, Square/Pulse: 15 MHz

  • Sample Rate: 200 MSa/s

  • Amplitude: 20 mVpp to 5 Vpp (HighZ), 10 mVpp to 2.5 Vpp (50Ω)

  • DC Offset: ±2.5 V (HighZ), ±1.25 V (50Ω)
